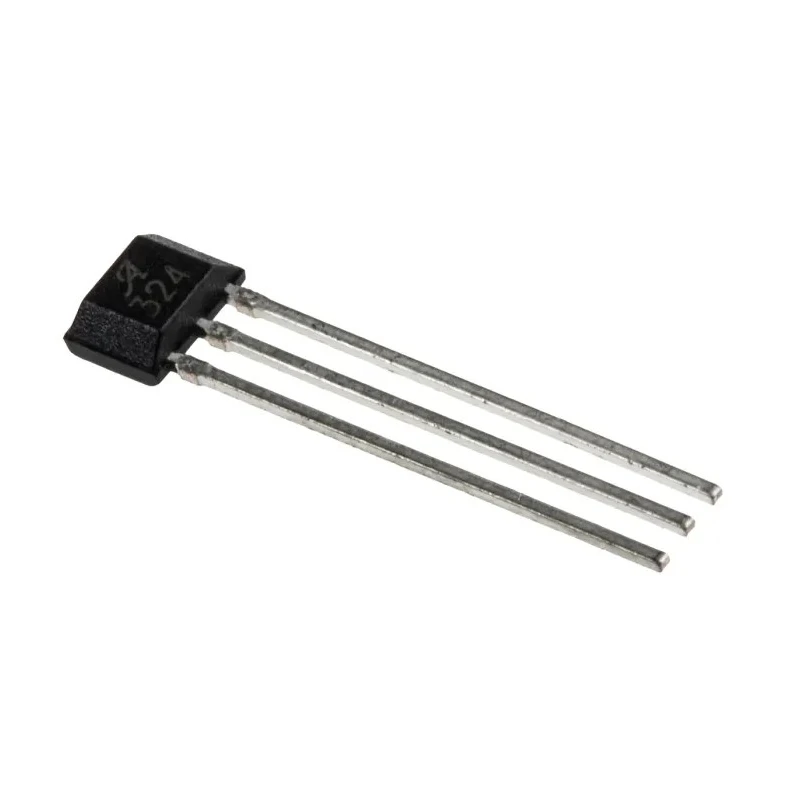

Allegro Microsystems 1 Axis Through Hole Linear Hall Effect Sensor 4.5V-5.5V Analogue SIP 3-Pin A1324LUA-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Response time | 32μs |
| Height | 3.02mm |
| Length | 4.09mm |
| Model | A1324LUA-T |
| SENSITIVITY | 2.5mV/g |
| Technology | BiCMOS |
| Sensor Type | Hall Effect Sensors |
| Width | 1.52mm |
| Mount Type | Through Hole |
| Series | A132 |
| Maximum Operating Temperature | 150°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | Analogue |
| Standards/Approvals | EMC |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 9mA |
| Magnetic Type | Linear |
| Maximum Frequency Response | 17kHz |
| Wide ambient temperature range | - 40°C to 150°C |
Key Features
- Operates from 4.5V to 5.5V supply voltage.
- Provides analogue output proportional to magnetic flux density.
- Wide operating temperature range from -40°C to 150°C.
- Compact SIP 3-pin through hole package.
- Maximum frequency response of 17kHz for dynamic applications.
- Low noise output with temperature-stable quiescent voltage.
- Fast response time of 32 microseconds.
- Supply current of 9mA for efficient power use.
Product Description
Allegro Microsystems A1324LUA-T is a high-performance 1 Axis Through Hole Linear Hall Effect Sensor designed for precise magnetic field measurement. Operating between 4.5V and 5.5V, it provides an analogue output directly proportional to the magnetic flux density, enabling accurate position or proximity sensing in various industrial and automotive applications.
This sensor features a quiescent voltage output at half the supply voltage and is factory-programmed to a sensitivity of 2.5mV/G. It integrates a Hall element, temperature compensation circuitry, a high-gain amplifier, and a low-impedance output stage with proprietary dynamic offset cancellation technology to ensure precise and stable outputs even during temperature cycling.
The device is housed in a compact SIP 3-pin through hole package with dimensions approximately 4.09mm in length, 3.02mm height, and 1.52mm width, making it suitable for compact installations on PCBs.
The sensor delivers a maximum frequency response of 17kHz and a supply current of 9mA with a fast response time of 32µs, ideal for applications requiring quick and reliable sensing. Its wide ambient operating temperature range from -40°C to 150°C and EMC standards compliance make it robust for harsh industrial environments.
Common applications include industrial automation, motion sensing, position detection, and automotive sensor systems, where reliable and accurate magnetic field sensing is critical.
The A1324LUA-T sensor utilizes BiCMOS technology and linear magnetic sensing to optimize performance and consistency. It also offers immunity to mechanical stress and enhanced electromagnetic compatibility, ensuring longevity and reliability in challenging conditions.
Operates over a wide temperature range from -40°C to 150°C. Compact SIP 3-pin package for through-hole mounting. Accurate linear analogue output proportional to magnetic flux density. Fast response time and high frequency response for dynamic sensing.
Robust design compliant with EMC standards.
This product is ideal for electronic component applications including power and connectors, semiconductors, sensor ICs, and motion sensor ICs. Discover similar Hall Effect Sensors at EnvMart for industrial and laboratory projects requiring precision magnetic sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.5V to 5.5V.
The response time for the A1324LUA-T is 32 microseconds.
It can operate at a maximum temperature of 150°C.
It provides an analogue output that is proportional to the magnetic flux density.
The sensitivity of this sensor is 2.5mV/G.
The dimensions are approximately 4.09mm in length, 3.02mm in height, and 1.52mm in width.
The maximum frequency response is 17kHz.
This model is designed to measure one axis.
It utilizes a through hole mounting type.
It employs BiCMOS technology for its operation.
The sensor is compliant with EMC standards, ensuring its performance in electromagnetic environments.
It is suitable for applications in industrial automation, motion sensing, and position detection.
