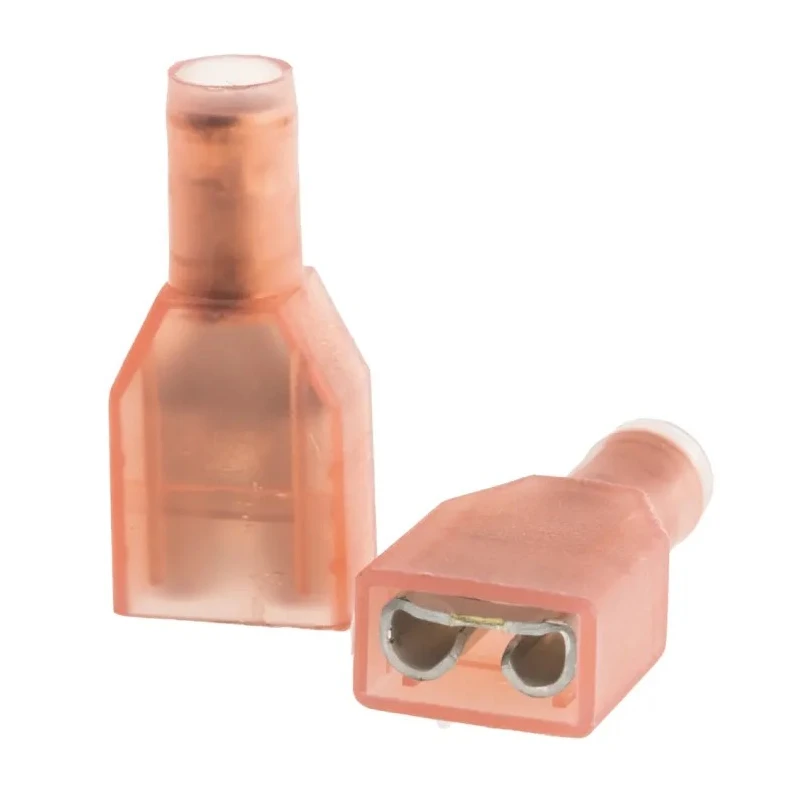

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 22 AWG to 18 AWG 735279

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 22 AWG to 18 AWG 735279

Name: TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size 22 AWG to 18 AWG 735279
Brand: TE Connectivity
SKU: 210017
Price: 1.21 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
Orientation	Straight
Model	735279
Gender	Female
Insulation	Insulated
Overall Length	21.5mm
Contact Material	Brass
Series	PIDG FASTON .250
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.75mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	6.35mm
Tab Thickness	0.81mm
Tab Size	6.35 x 0.81 mm

Key Features

Fully insulated design provides protection against electric shock.
Copper sleeve enhances wire insulation support post crimping.
Serrated crimp barrel ensures maximum contact and tensile strength.
Funnelled wire entry allows quick and easy wire insertion.
Nylon insulation offers resistance to greases and oils.
Colour coded insulation for accurate wire size identification.
Suitable for wire sizes from 22 AWG to 18 AWG (0.3 mm² to 0.75 mm²).
Constructed with precision-formed, tin-plated brass contact material.

Product Description

TE Connectivity 735279 PIDG FASTON .250 red insulated female spade connector is engineered for consistent and secure electrical connections in demanding industrial and commercial environments.

This crimp-type female spade connector features a fully insulated nylon body to prevent electric shock and maintain safety during handling and operation. The connector is designed with a precision-formed tin-plated brass contact body that provides excellent conductivity and corrosion resistance. An integral copper sleeve within the crimp barrel supports the wire insulation after crimping to ensure a robust termination.

The crimp barrel includes serrations that maximize contact and tensile strength, greatly improving the reliability of terminations. The funnelled wire entry simplifies and speeds up wire insertion, making installation more efficient. The red nylon insulation is resistant to greases and oils, enhancing the connector's durability.

These connectors accept wire sizes from 22 AWG to 18 AWG (0.3 mm² to 0.75 mm²), color-coded for precise wire gauge matching. The connector's tab measures 6.35 mm in width by 0.81 mm in thickness, with a tab size of 6.35 x 0.81 mm, and features a straight orientation for standard mating interfaces. The overall length of the connector is 21.5 mm.

Ideal applications include electrical components, industrial equipment, instrumentation, HVAC systems, appliances, power supplies, lighting, and automotive electronics where dependable wire terminations are critical.

Fully insulated design provides protection against electric shock. Copper sleeve enhances wire insulation support post crimping. Serrated crimp barrel ensures maximum contact and tensile strength. Funnelled wire entry allows quick and easy wire insertion.

Nylon insulation offers resistance to greases and oils. Colour coded insulation for accurate wire size identification. Suitable for wire sizes from 22 AWG to 18 AWG (0.3 mm² to 0.75 mm²). Constructed with precision-formed, tin-plated brass contact material.

Straight orientation with overall length of 21.5 mm. Browse EnvMart’s comprehensive range of Spade Connectors and electrical wire terminals for industrial and commercial applications.
