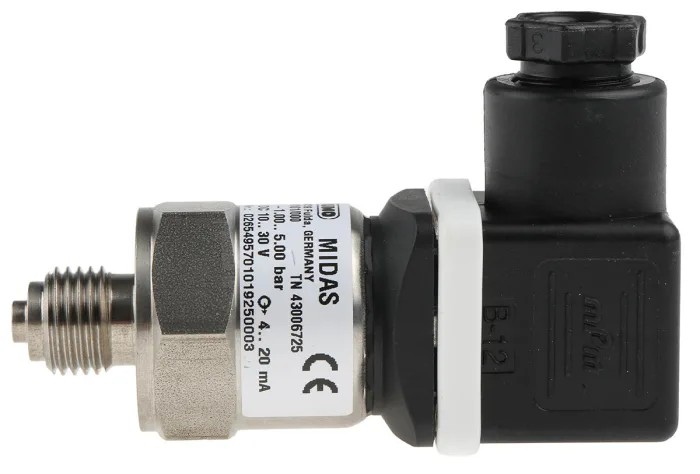

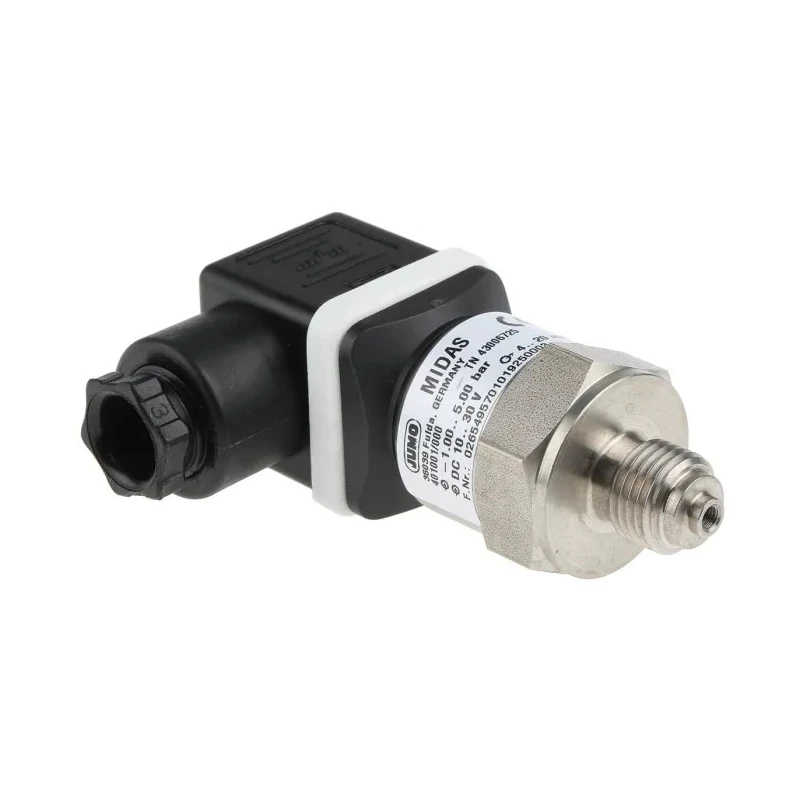

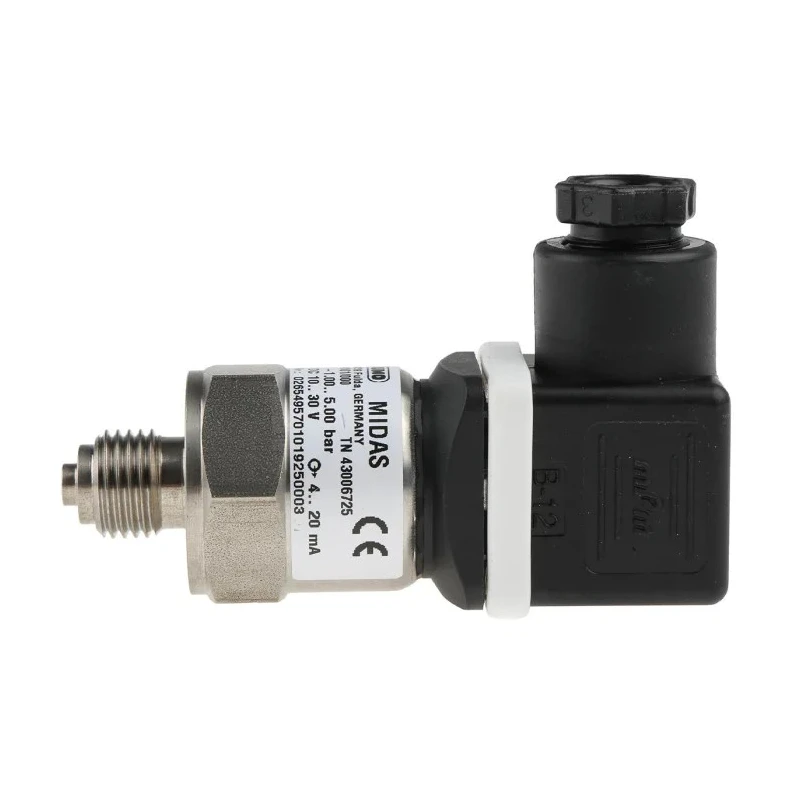

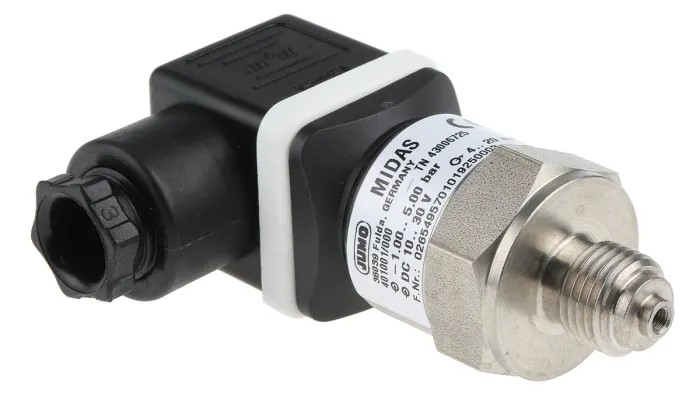

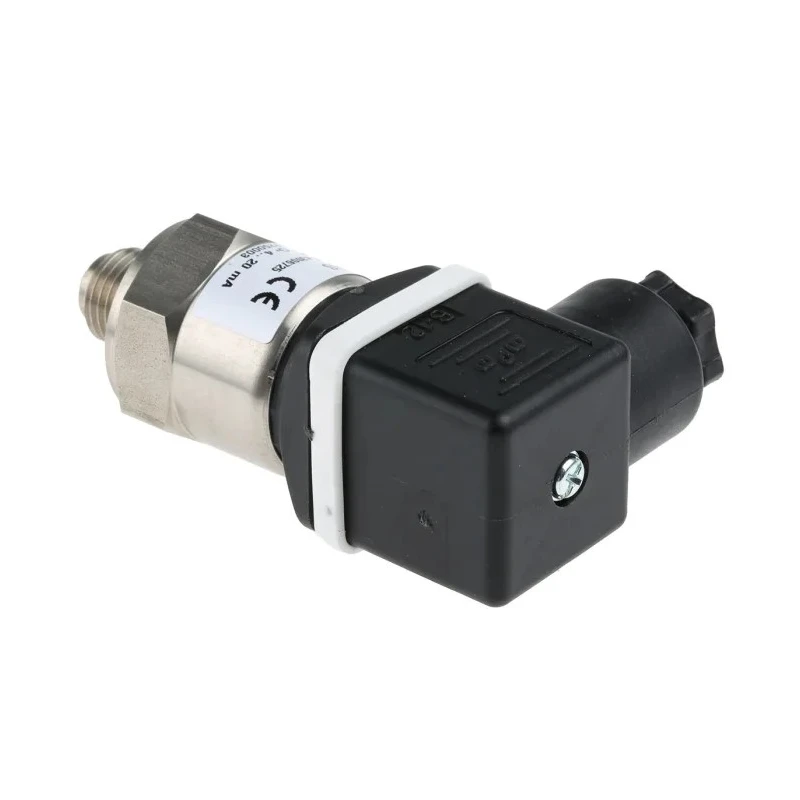

Jumo MIDAS Series Pressure Sensor -1 bar to 5 bar, Accuracy 0.5 %, IP65 IP67, 10-24V 401001/000-482-405-502-20-601-61/000

Jumo 401001/000-482-405-502-20-601-61/000 is a JUMO MIDAS Series Pressure Sensor designed for accurate pressure measurement ranging from -1 bar to 5 bar with 0.5% accuracy. It features a compact design with a durable 305L stainless steel housing, suitable for applications where space is limited and long service life is required. The sensor offers stable temperature performance ensuring reliable data even in varying environments.

This sensor operates with a supply voltage between 10V dc and 24V, and it is rated IP65 and IP67, providing robust protection against dust and water, making it suitable for industrial and commercial environments. It supports operating temperatures from -20°C to 125°C, broadening its usability range.

The JUMO MIDAS pressure sensor complies with Pressure Directive 97/23/EC as well as DIN standards such as DIN 16086 and DIN IEC770 / 5.3, supporting compliance requirements for multiple industries. Typical applications include refrigeration systems, compressors, building automation infrastructures, and utility vehicles where precision pressure sensing is critical.

The sensor offers connection options via an in-line plug or cable socket to facilitate ease of integration. Manufactured in Germany, it upholds stringent quality and reliability standards expected in industrial controls and automation.

Compact and space-saving design in a robust stainless steel housing. Accurate pressure measurement with 0.5% tolerance. Wide operating temperature range from -20°C to 125°C. Ingress protection rating of IP65 and IP67 for harsh environments.

Compliant with Pressure Directive 97/23/EC and DIN standards. Suitable for refrigeration, compressors, and building automation. Versatile connection with in-line plug or cable socket options. Manufactured in Germany with high-quality assurance.
