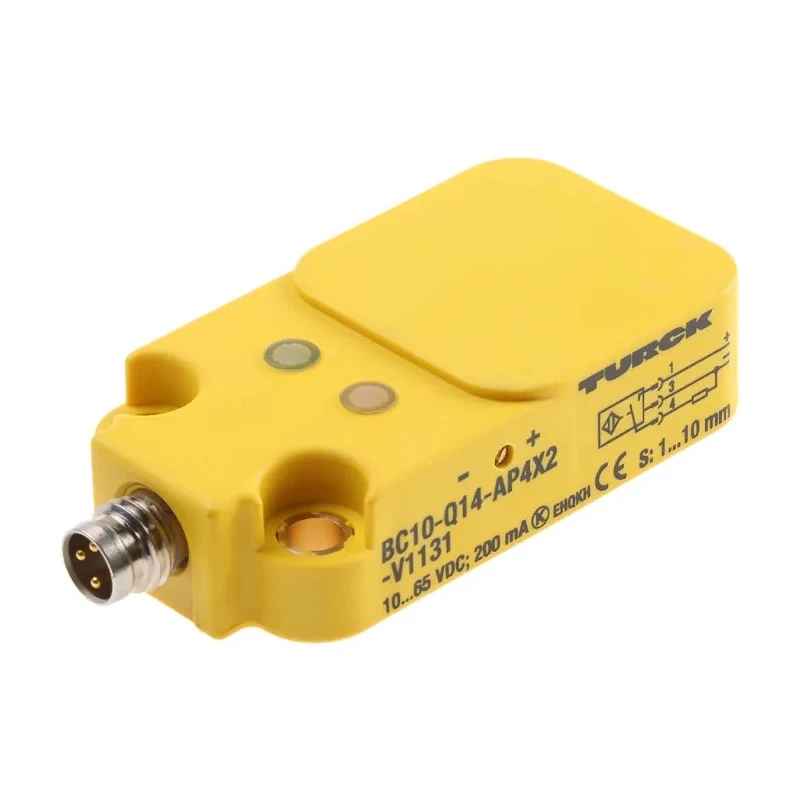

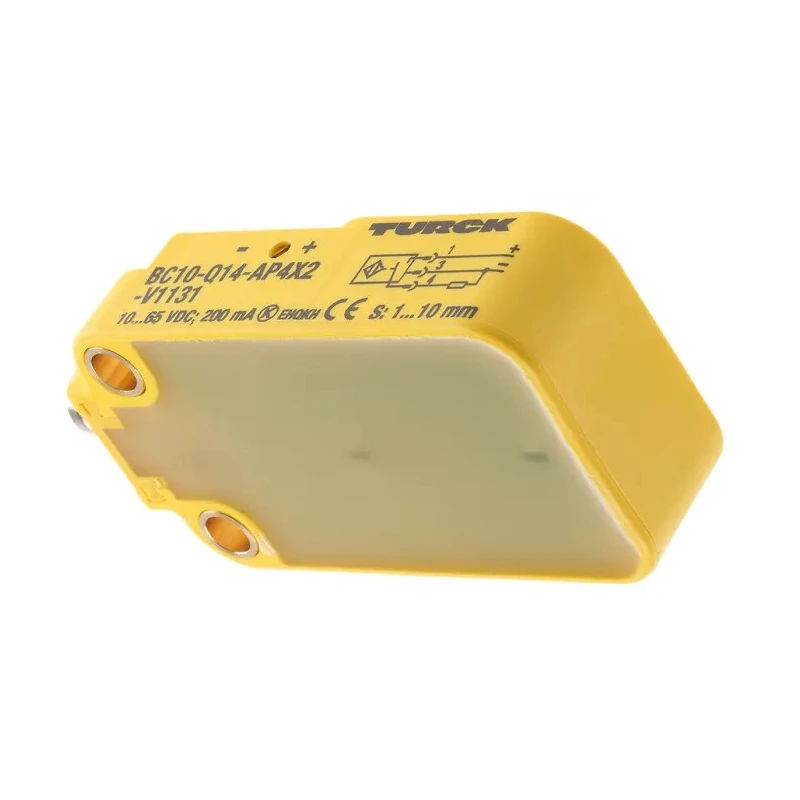

Turck Block Capacitive Proximity Sensor 10 mm, M8 x 1 Thread, PNP Output, 200mA Switching Current, 65V BC10-Q14-AP4X2-V1131

Turck BC10-Q14-AP4X2-V1131 is a high-performance block capacitive proximity sensor designed for industrial, automation, and control applications requiring reliable non-contact object detection within a 10 mm range.

This sensor features an M8 x 1 thread size body in a compact 55.5 mm length plastic housing rated to IP67, ensuring durability against dust and water ingress for harsh environments.

The embedded mounting style and M8 terminal type offer easy installation and connectivity in automated machinery or process control installations. The sensor delivers a PNP output with a maximum switching current of 200mA, supporting switching voltages up to 65V DC and 250V AC, suitable for wide industrial power systems.

Its operating temperature range from -25°C to +70°C enables use in both cold and hot environments. The device is equipped with power and output status LEDs for clear operational feedback. The unshielded sensor design and maximum switching frequency of 100Hz facilitate precise response in fast automation setups.

Additional features include full electrical protection and humidity compensation, effectively preventing false switching caused by condensation or moisture, enhancing reliability in wet conditions.

Certified under UL and cULus standards, this sensor supports safety compliance requirements across multiple industrial sectors.

Turck’s BC10-Q14-AP4X2-V1131 is ideal for integration into manufacturing process control, material handling automation, robotics, packaging, HVAC systems, and laboratory automation where non-contact sensing of metallic and non-metallic objects is critical.

Explore more Capacitive Proximity Sensors at EnvMart to find sensors with different detection ranges, output types, and mounting styles to suit your industrial automation needs. The sensor features an M8 x 1 threaded body for secure mounting.

It supports a maximum switching current of 200mA with PNP output configuration. Operates safely with maximum supply voltages of 65V DC and 250V AC. Constructed with durable plastic housing and rated IP67 for water and dust protection.

Includes power and output status LEDs for operational indication. Suitable for operating temperature ranges from -25°C to +70°C. Unshielded design with a maximum switching frequency of 100Hz. Equipped with full electrical protection and humidity compensation to reduce false switching.

Complies with UL and cULus safety standards and manufactured in Germany.
