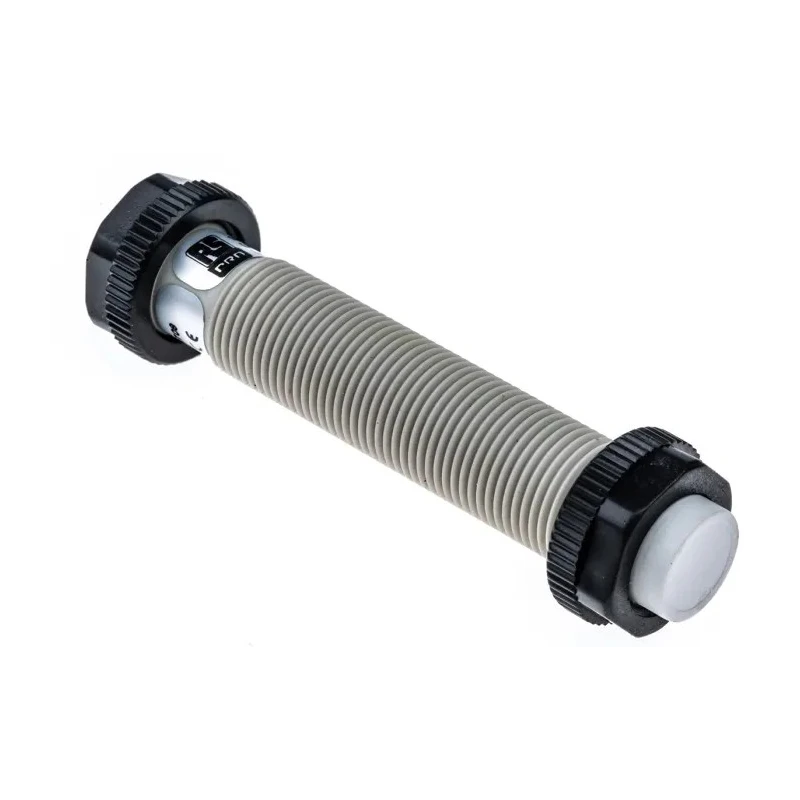

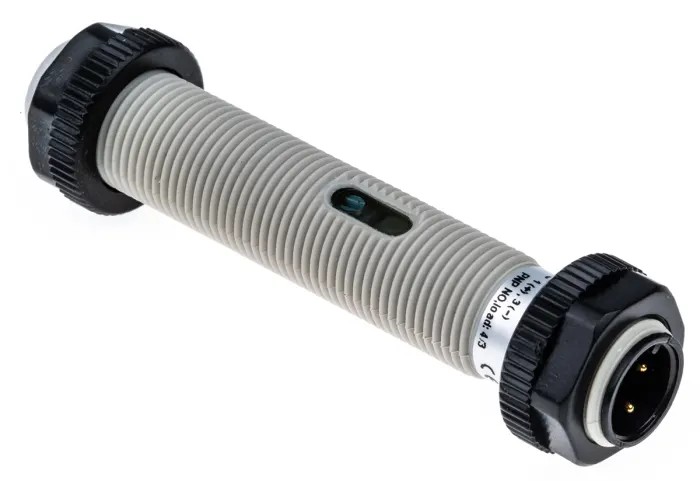

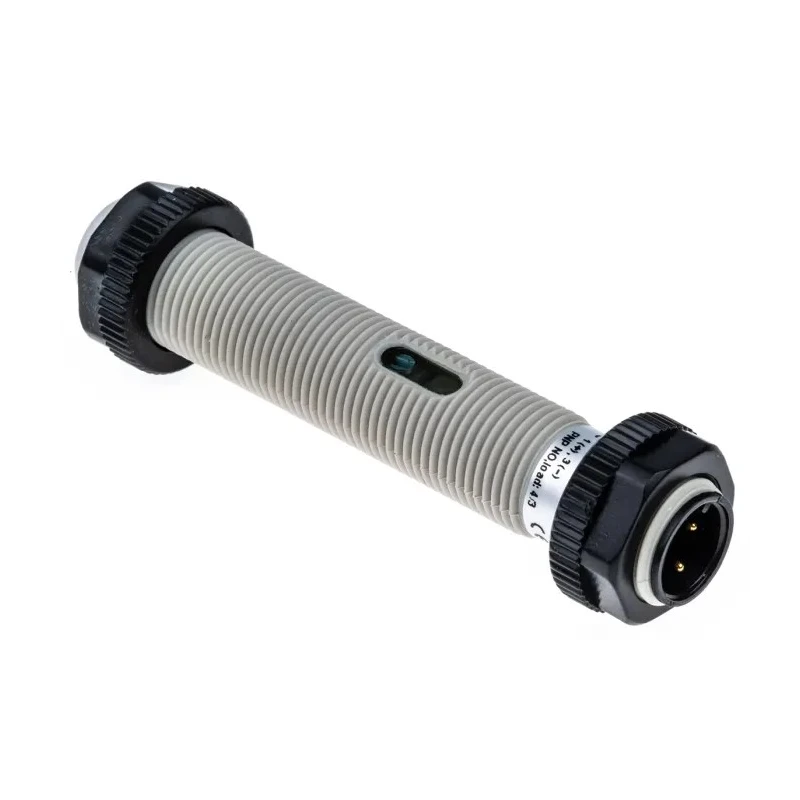

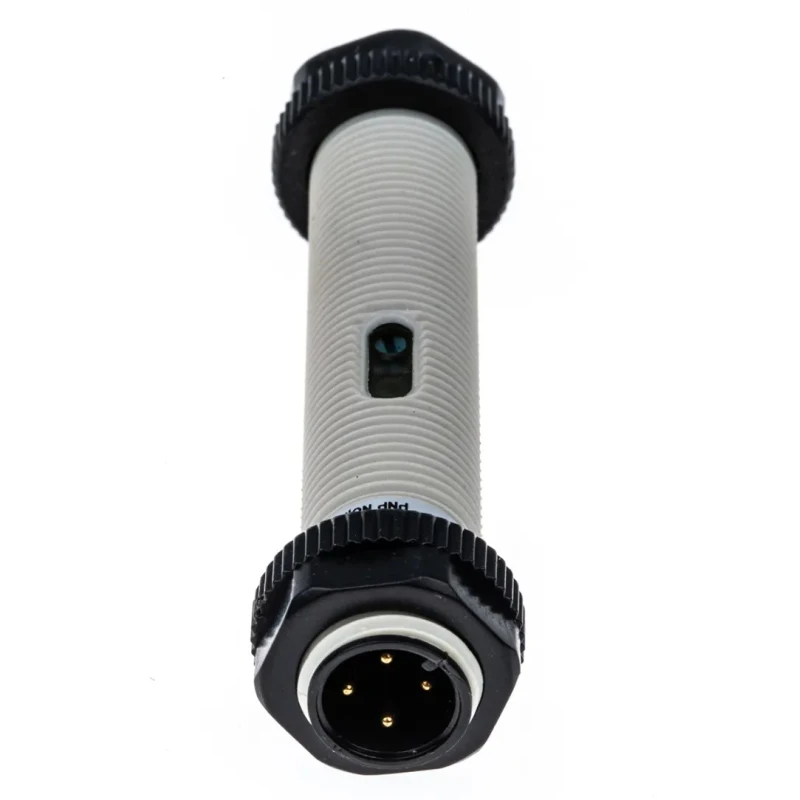

RS PRO Threaded Barrel Capacitive Proximity Sensor 4 mm, M12 x 1, PNP Output, 15mA Switching Current, 30V DC/ 1000V 184-5590

RS PRO 184-5590 Threaded Barrel Capacitive Proximity Sensor is a high-quality sensor designed for industrial automation and control applications requiring precise non-contact detection of objects.

This capacitive proximity sensor has a threaded barrel body style of M12 x 1 thread size measuring 69mm in length, enabling secure mounting using non-flush techniques. It features a robust polybutylene terephthalate housing material with IP67 ingress protection rating for reliable performance in harsh industrial environments.

The sensor operates with a PNP output switching current of 15mA, supports a maximum DC voltage of 30V, and can withstand up to 1000V AC. It can detect both metallic and non-metallic materials at a maximum sensing distance of 4 mm. The maximum switching frequency is 50Hz, making it suitable for a range of automation tasks.

Equipped with an M12 connector interface, the sensor ensures ease of wiring and integration into control systems. It operates effectively across a temperature range from -10°C up to 55°C, suitable for varied industrial and manufacturing settings.

Features a PNP output for reliable switching performance. Non-flush mount design delivers high sensitivity. IP67 rating ensures protection against dust and water ingress. Detects both metallic and non-metallic objects efficiently.

Robust polybutylene terephthalate housing for durability. Operating temperature range from -10°C to 55°C. Maximum supply voltage up to 30V DC and 1000V AC tolerance. Threaded barrel body with M12 x 1 thread size and 69mm length.

Maximum switching frequency of 50 Hz supports dynamic applications. Manufactured in China under the RS PRO series quality standard.

This Capacitive Proximity Sensor is ideal for industrial automation applications including level monitoring, detection of various materials, and integration into manufacturing and processing equipment. Its non-contact sensing capability provides increased reliability and reduced wear compared to mechanical sensors.

Use RS PRO proximity sensors for enhanced precision and durability in electronics, laboratory instruments, industrial measurement, and automated control systems. Browse the wide range of sensors available at EnvMart to find compatible products and accessories that meet your industrial application requirements.
