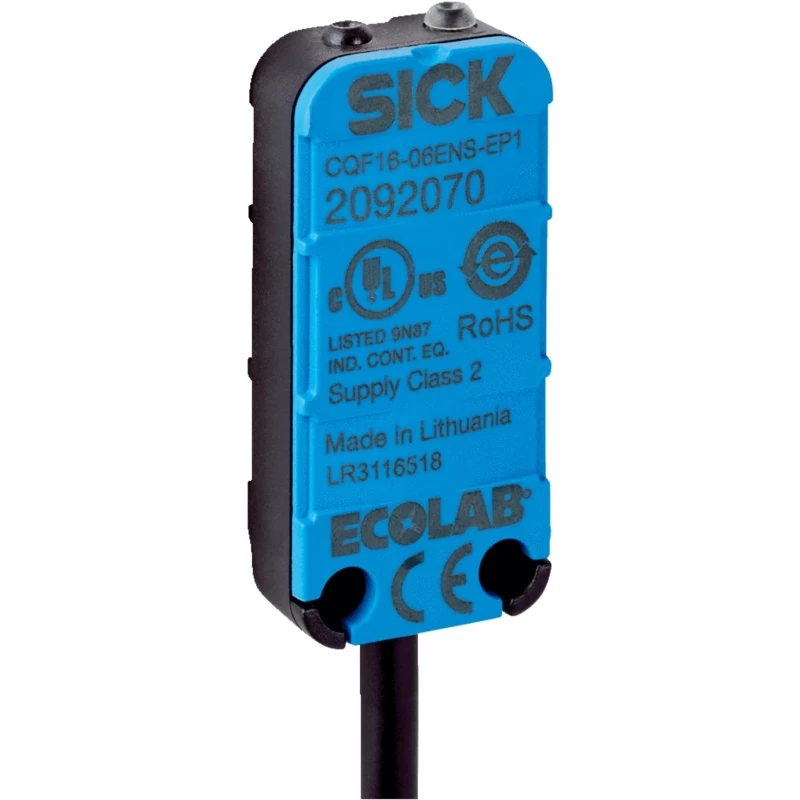

SICK Block Capacitive Proximity Sensor 6 mm Detection Distance NPN 100 mA 30 V DC CQF16-06ENSEW1

SICK CQF16-06ENSEW1 Block Capacitive Proximity Sensor delivers precise level detection in industrial and laboratory applications, operating at 30 V DC with a maximum switching current of 100 mA. This sensor features a compact, rugged plastic housing rated for IP67, IP68, and IP69K protection, ensuring durability in harsh environments.

Designed for non-flush mounting, the sensor’s unshielded detection capability allows accurate sensing of liquids through container walls, compensating reliably for foam, moisture, and deposits. The output function is configurable to NPN or PNP types with normally open or normally closed contacts, providing flexibility for various control systems.

Equipped with dual LEDs for clear indication of voltage supply and output signal, the CQF sensor achieves a maximum switching frequency of 10 Hz. Its operating temperature range spans -25°C to 80°C, suitable for semiconductor manufacturing, food processing, and environmental sensing.

The sensor includes a mounting bracket enabling easy and flexible installation. Its compact dimensions (34 mm length, 16 mm width, and 8 mm depth) create a space-saving design ideal for tight spaces. Manufactured in Lithuania, it conforms to CE and UL standards for safety and compliance.

Applications encompass level detection through container walls, detection of process liquids in semiconductor industry without direct contact, food detection in pipes, condensate water sensing in freezers, and adhesive or toner fill level measurement.

Compact and rugged block-style housing with IP67, IP68, and IP69K protection. 6 mm maximum detection distance through container walls or direct contact. NPN output type with 100 mA maximum switching current at 30 V DC. Non-flush mount style with cable terminal connection.

Operating temperature from -25°C to 80°C for versatile industrial use. Suitable for semiconductor, food industry, and fluid level detection applications. Includes mounting bracket for flexible installation options. Equipped with two LEDs for power and output signaling.

Meets CE and UL safety standards. Discover more Capacitive Proximity Sensors and industrial automation solutions in EnvMart’s Electronics & Electricals Sensors category.
