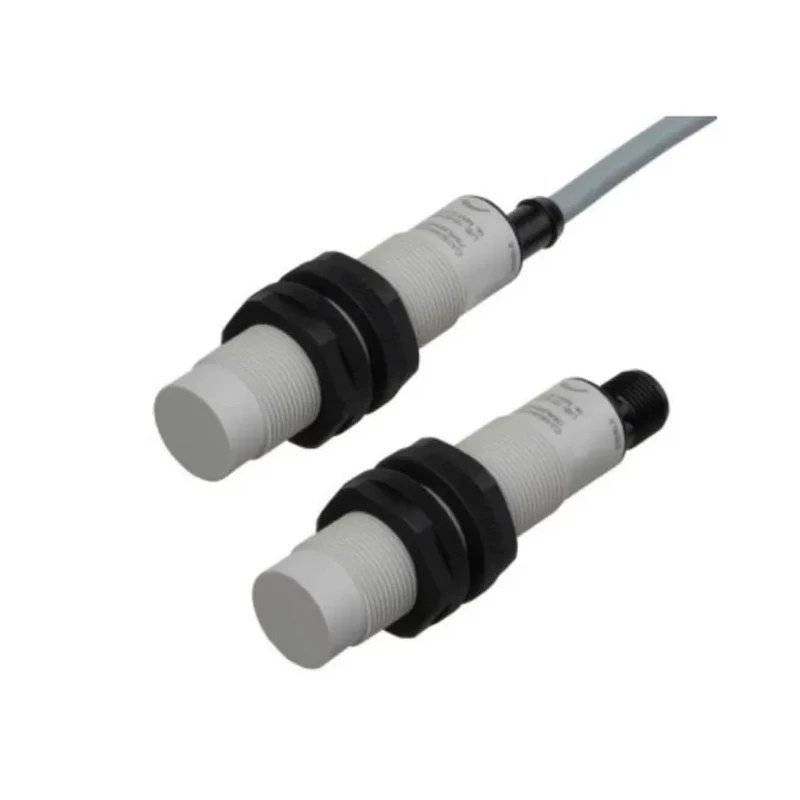

RS Pro Threaded Barrel Capacitive Proximity Sensor M18 IO-Link 40V 12mm 240V ac 40V dc 237-7238
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | RS Pro |
| Length | 70mm |
| Model | 237-7238 |
| Depth | 70mm |
| IP Rating | IP69K |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | IO-Link |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 40V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 50Hz |
| Standards/Approvals | UL 94 V-2, REACH, CE, ANSI/ESD, DIN, EN, IEC, CSA, RoHS, UL 508 12, UL 508 4, UL 94 HB, UL 94 V-0 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 40V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 12mm |
Key Features
- The sensor features an M18 threaded barrel body style for easy mounting.
- Equipped with IO-Link output type to enhance communication in industrial automation.
- Offers a maximum switching frequency of 50 Hz suitable for fast response applications.
- Designed with IP69K rating providing protection against harsh industrial environments.
- Constructed with Polybutylene Terephthalate housing material ensuring durability and chemical resistance.
- Unshielded sensor operating with 240 V AC and 40 V DC maximum voltages.
- Operates reliably within a temperature range from -30°C to 60°C.
- Ideal for industrial measurement of pressure, thickness, and presence detection across diverse materials.
Product Description
RS Pro 237-7238 is a high-quality threaded barrel Capacitive Proximity Sensor designed for industrial automation applications with an M18 thread size, IO-Link output, and robust build quality. It operates with a maximum supply voltage of 40V DC and 240V AC, providing precise detection with up to 12 mm sensing distance.
This sensor is built with advanced TRIPLESHIELD™ technology, enhancing immunity against electromagnetic interference such as from frequency drives, as well as improved resistance to humidity and dust, making it highly reliable in harsh industrial environments.
The body features a Polybutylene Terephthalate housing providing strength and chemical resistance, while the IP69K ingress protection ensures suitability for use in demanding industrial and manufacturing plants where high pressure and temperature variations occur.
Its non-flush mount type and pre-cabled terminal facilitate straightforward installation and connection, optimizing uptime and maintenance efficiency.
Ideal for a variety of applications, this sensor can detect virtually any material by measuring changes in capacitance. Typical uses include presence sensing, measurement of attributes such as pressure and thickness, and surface-level material detection, useful in automation and control systems.
The sensor has a maximum switching frequency of 50 Hz ensuring quick response times. Operating temperature ranges from -30°C to +60°C, suitable for diverse environmental conditions. Complies with international standards including UL 94 V-2, REACH, CE, ANSI/ESD, DIN, IEC, CSA, and RoHS.
Unshielded design enhances sensitivity and eases integration in specific applications. Manufactured in Lithuania, guaranteeing quality and regulatory compliance.
Explore further high-reliability sensors and automation components in the RS Pro range available at EnvMart, trusted for demanding industrial, manufacturing, and automation environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 12 mm.
It operates reliably within a temperature range from -30°C to +60°C.
This sensor features an IO-Link output type, enhancing communication in industrial automation.
It has an IP69K rating, providing protection against harsh industrial environments.
The maximum switching frequency is 50 Hz, suitable for fast response applications.
The housing is constructed from Polybutylene Terephthalate, ensuring durability and chemical resistance.
The sensor has a length and depth of 70 mm each.
It operates with a maximum supply voltage of 40V DC and 240V AC.
This model features a non-flush mount type for easy installation.
It complies with several international standards including UL 94 V-2, REACH, CE, and RoHS.
It can detect virtually any material by measuring changes in capacitance, making it versatile for various applications.
This sensor is manufactured in Lithuania, ensuring quality and regulatory compliance.
