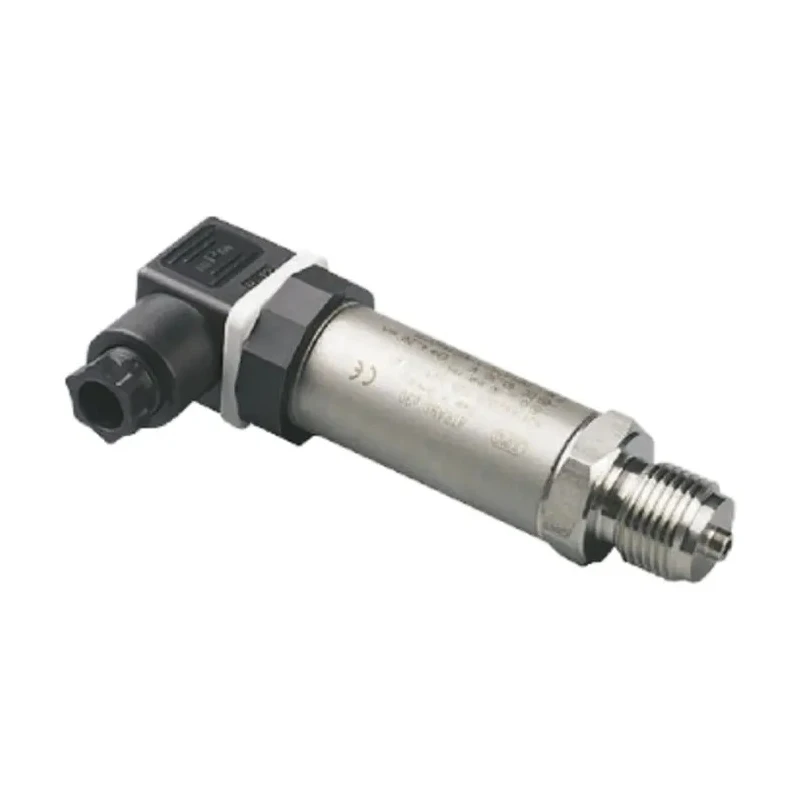

Jumo 404366 Series Pressure Sensor 0bar to 6bar Relative Pressure, Stainless Steel Housing 404366/000-458-405-504-20-61/000

Jumo 404366/000-458-405-504-20-61/000 is a high-precision pressure sensor for relative pressure measurement ranging from 0 bar minimum to 6 bar maximum. Manufactured with robust stainless steel AISI 304 housing and AISI 316Ti / 316L materials in contact with measured fluid or gases, this sensor ensures durability in demanding industrial environments.

The sensor features an output current signal of 4 - 20 mA, facilitated by a two-wire connection with screw terminals and cable gland, allowing for straightforward installation and connectivity. It operates reliably within a temperature span of -20°C to 100°C and offers protection conforming to IP65, safeguarding against dust ingress and water jets.

Designed according to DIN 16086 and DIN IEC 770/5.3 standards, the 404366 sensor is suitable for use in automation, electrical, and control gear systems requiring precise pressure monitoring of gases and fluids. The versatile supply voltage range from 10 V to 30 V DC enables compatibility with various industrial power systems.

This Pressure Sensor is highly suited for applications in industrial processes, laboratory instrumentation, HVAC systems, water treatment plants, and other environments where accurate pressure measurement is critical. The rugged stainless steel construction and high accuracy rate make it a dependable choice for continuous operation and safety monitoring.

Range supports pressure measurement from 0 to 6 bar relative. Accuracy of ±0.2% ensuring precise readings. Stainless steel housing with AISI 316Ti / 316L wetted parts for corrosion resistance. Operates within temperature range of -20°C to 100°C.

Output signal is 4 - 20 mA with 2-wire system and screw terminal connection. IP65 rating provides protection against dust and water jets. Supply voltage range between 10V and 30V DC for flexible integration. Complies with DIN 16086 and DIN IEC 770/5.3 standards.
