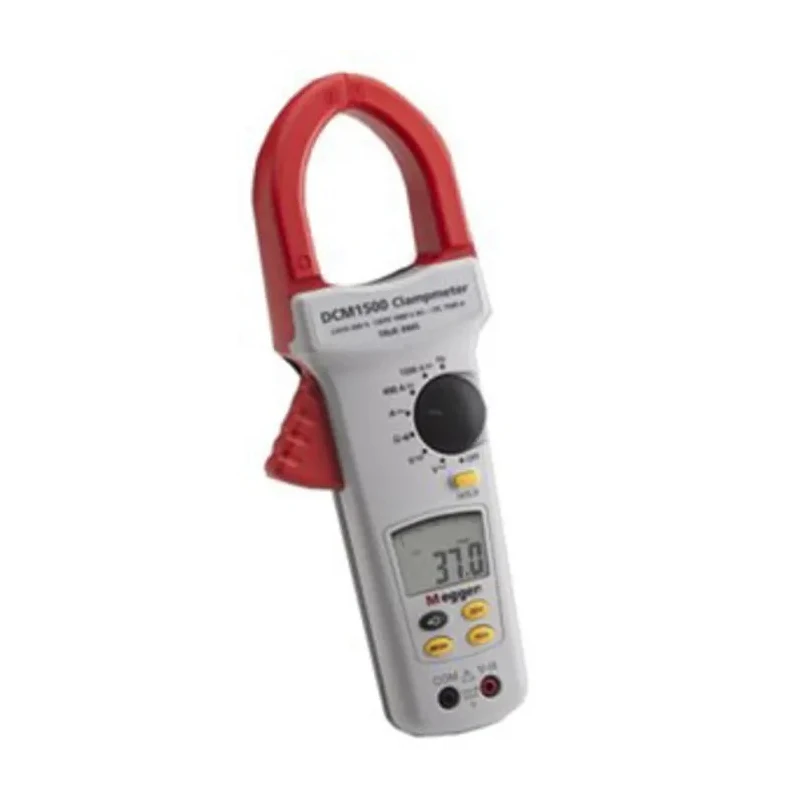

Megger DCM1500 AC/DC Clamp Meter 1.5 kA, 1500 V DC, 750 V AC, CAT IV Non-Contact Voltage Detector DCM1500

Megger DCM1500 AC/DC Clamp Meter DCM1500 is a high-precision measuring instrument designed for industrial, laboratory, electrical maintenance, and manufacturing applications. It supports current measurement up to 1.5 kA with true RMS precision, making it ideal for accurate diagnostics of electrical equipment.

This clamp meter combines both AC and DC current measurement capabilities, supporting maximum voltages of 1500 V DC and 750 V AC. It features a non-contact voltage detector enhancing operator safety by detecting live wires without contact. The 51mm jaw opening accommodates a wide range of conductor sizes.

The device includes advanced functionalities such as automatic ranging, data-hold, minimum and maximum value storage, and a backlit LCD screen for clear visibility even in dimly lit environments. It is powered by an alkaline battery providing approximately 100 hours of continuous use.

Safety is paramount, and this meter meets CAT IV standards with a safety category voltage of 600 V, suitable for high-energy industrial environments. The meter has a compact form factor with dimensions of 275mm length, 105mm width, and 48mm height, weighing 524 grams for ease of use on site.

Measures DC and AC current up to 1.5 kA accurately and efficiently. Provides true RMS measurement for precise readings in complex waveforms. Features a non-contact voltage detector enhancing operator safety. Equipped with a 51mm jaw opening to accommodate various conductor sizes.

Includes a backlit LCD for clear visibility in dim environments. CAT IV safety rating ensures highest protection for electrical testing. Automatic ranging function and data hold for user convenience. Long-lasting alkaline battery with up to 100 hours battery life.

Lightweight and compact design at 524 g for easy portability. Suitable for industrial, manufacturing, and electrical maintenance applications.

This clamp meter is RoHS compliant and is manufactured in Taiwan, Province of China, ensuring quality and regulatory compliance for professional use. It is ideal for professionals working with renewable energy installations, metalworking facilities, industrial robotics, and electrical maintenance tasks requiring safe, accurate current and voltage measurements.
