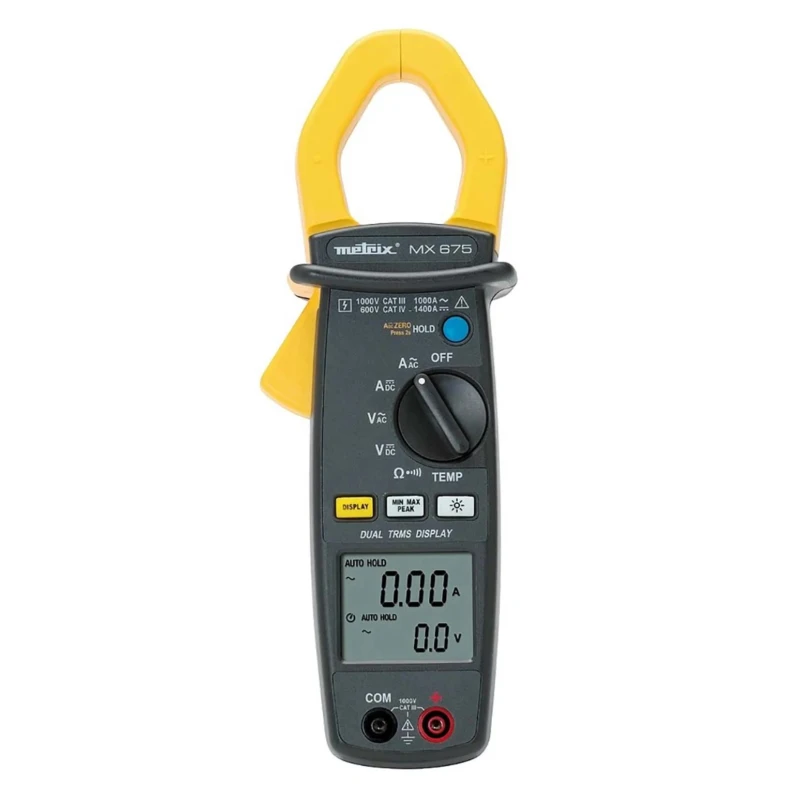

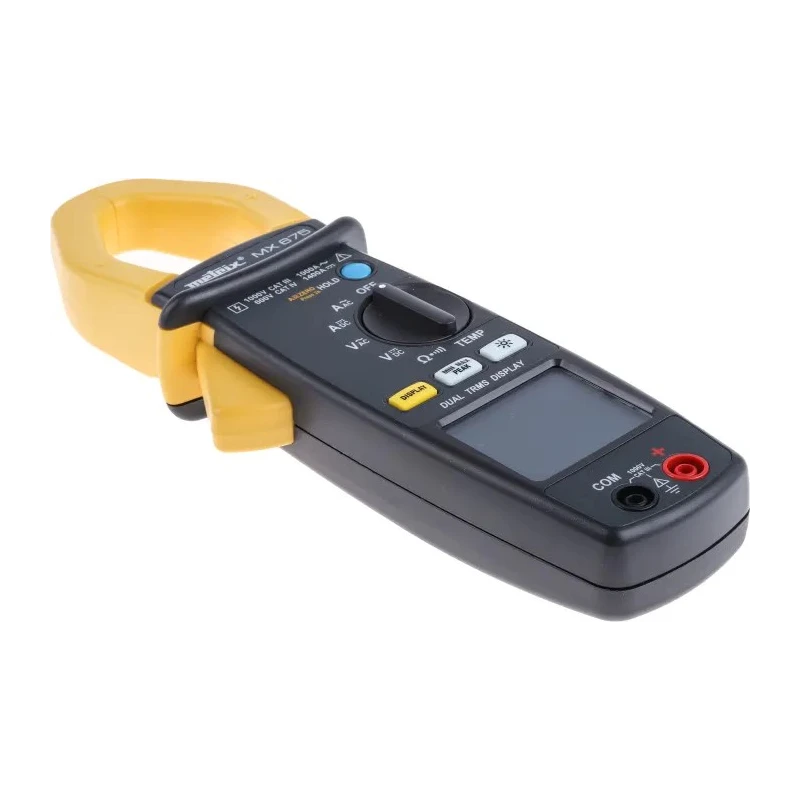

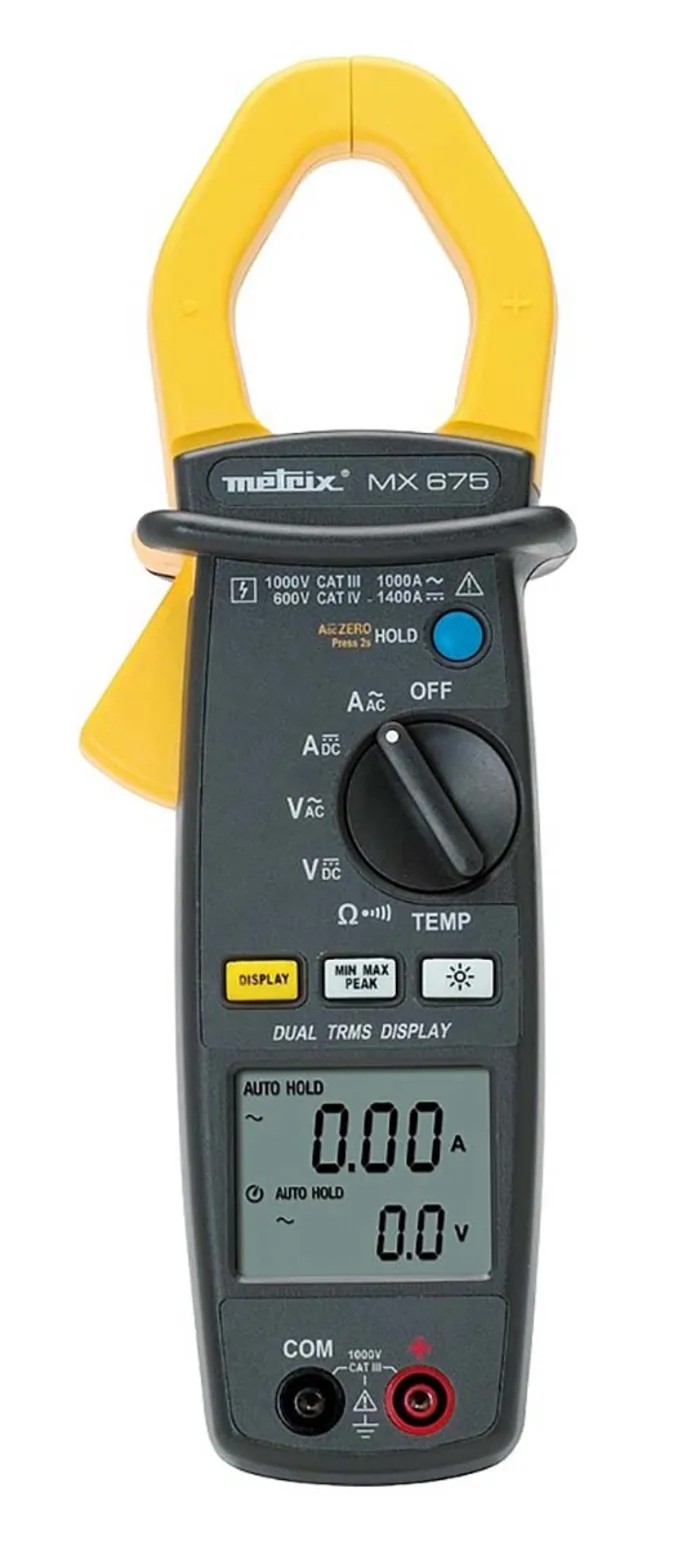

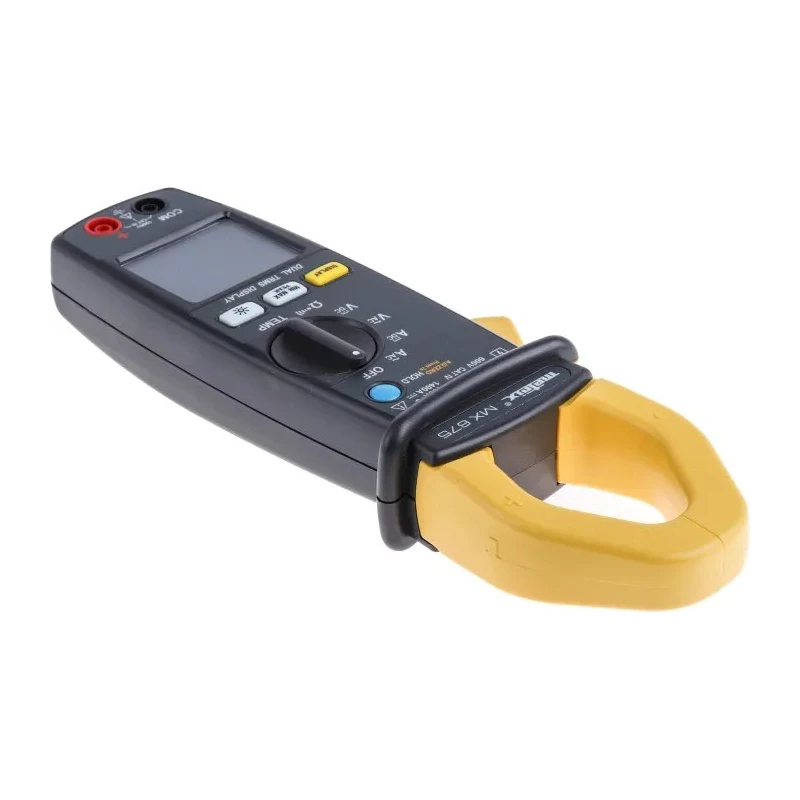

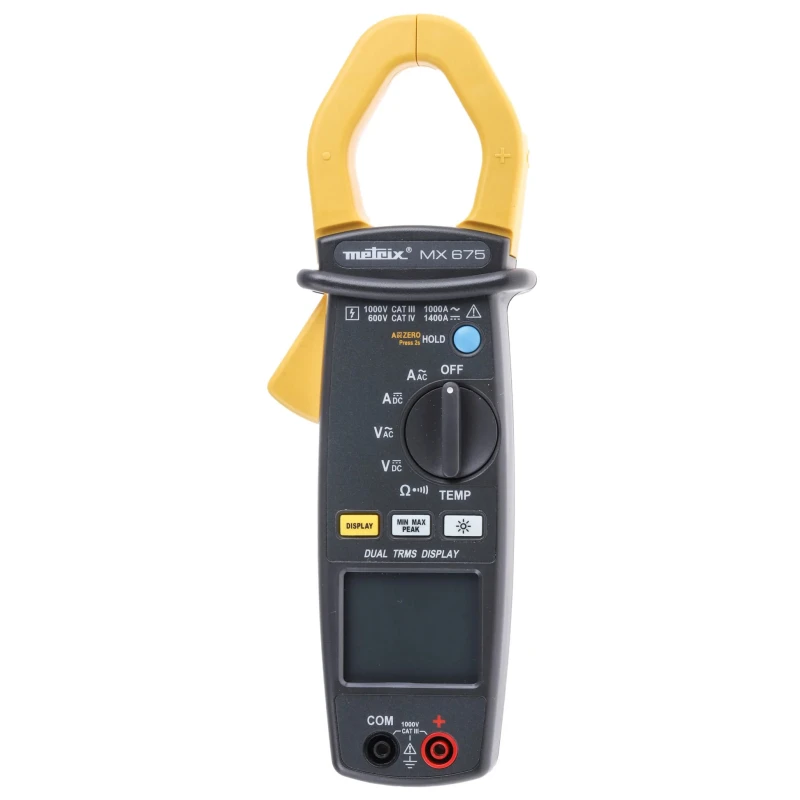

Metrix Clamp Meter with 1.4 kA DC Current, 1 kA AC Current, 1400 V DC, 1000 V AC, CAT IV, CAT III MX675

Free Delivery in India | Lowest Global Shipping Charges

Metrix Clamp Meter with 1.4 kA DC Current, 1 kA AC Current, 1400 V DC, 1000 V AC, CAT IV, CAT III MX675

Name: Metrix Clamp Meter with 1.4 kA DC Current, 1 kA AC Current, 1400 V DC, 1000 V AC, CAT IV, CAT III MX675
Brand: Metrix
SKU: 121939
Price: 681.89 USD
Availability: InStock



Category Clamp Meter Brand Metrix Condition New

Specifications

Country of Origin	Taiwan
Display Type	LCD Backlight
Brand	Metrix
Temperature Resolution	0.5°C
Battery Life	30h
Height	43mm
Length	257mm
Model	MX675
Gross Weight	440g
Width	80mm
Maximum Operating Temperature	40°C
Functions	HOLD, AUTO-HOLD, MIN, MAX, Peak, Ø Zero
AC Voltage Resolution	100mV ac
Minimum Operating Temperature	0°C
DC Current Accuracy	±1.2 % rdg + 5 Digits
DC Voltage Resolution	100 mV dc
Resistance Measurement Accuracy	±(1% rdg + 3dgts)
AC Current Accuracy	±1.5 % rdg + 5 Digits
Resistance Resolution	100mΩ
DC Current Resolution	10mA
Maximum Jaw Opening	40mm
Standards/Approvals	RoHS
Functions Measured	Frequency, DC Current, DC Voltage, Resistance, AC Current, AC Voltage
Maximum AC Current Measurement	1kA
Maximum DC Voltage Measurement	1400V dc
Maximum DC Current Measurement	1.4kA
Maximum AC Voltage Measurement	1000V ac
Safety Category Level	CAT IV, CAT III
Safety Category Voltage	600, 1V
Maximum Conductor Size	40mm
Clamp Meter Type	AC/DC Clamp Meter

Key Features

The meter provides True RMS measurements for precise current and voltage readings.

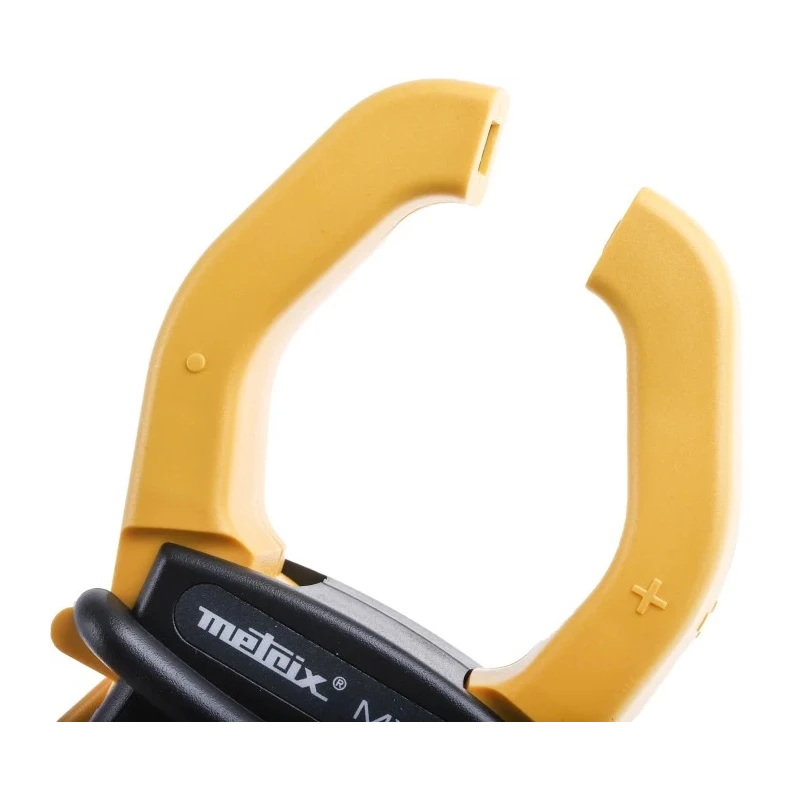

The device features a maximum jaw opening of 40 mm, allowing measurement on large conductors.
It comes equipped with a backlit LCD display ensuring clear visibility in low-light conditions.
The clamp meter offers temperature measurement through a K thermocouple within a wide temperature range.
Functions include HOLD, AUTO-HOLD, MIN, MAX, Peak, and zero phase for versatile operation.
The meter operates with a 9 V alkaline battery, ensuring up to 30 hours of battery life.
It measures frequency, resistance, DC/AC current, and voltage with high accuracy.
The compact and lightweight design weighing 440 g ensures easy portability and handling.

Product Description

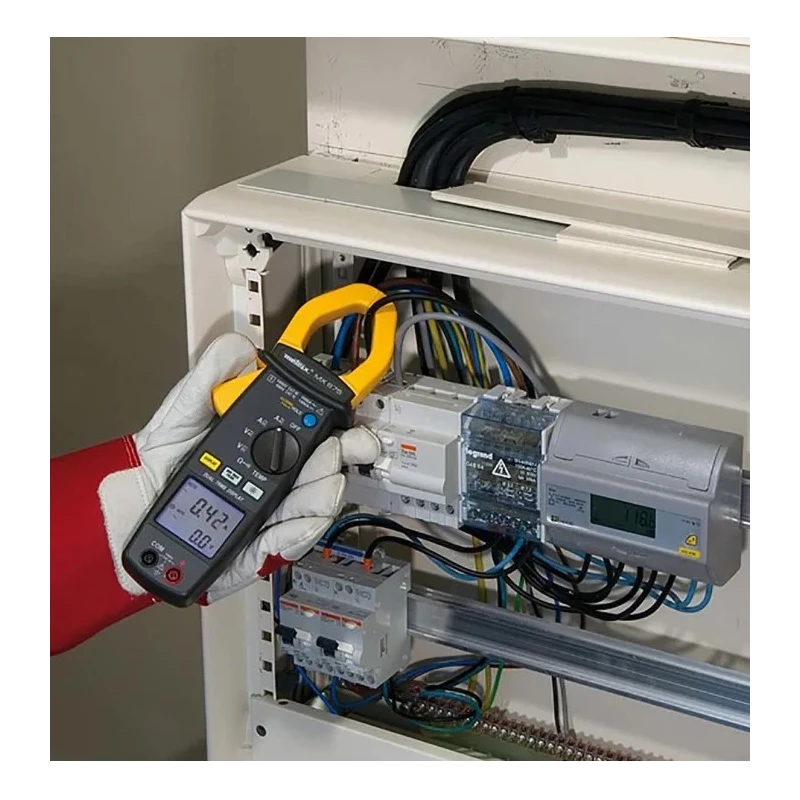

Metrix MX675 Clamp Meter is a high-performance AC/DC clamp meter designed for industrial, laboratory, HVAC, electrical, and manufacturing applications. It can measure continuous DC currents up to 1.4 kA and AC currents up to 1 kA with voltage measurements up to 1400 V DC and 1000 V AC, making it suitable for heavy-duty electrical testing.

The True RMS capability guarantees accurate readings even in non-linear loads, essential for precise troubleshooting and diagnostics in power systems. The maximum jaw opening of 40 mm accommodates large cables and conductors typically encountered in industrial plants and electrical distribution networks.

The multi-function meter includes temperature measurement via a K thermocouple, broadening its use in HVAC and thermal system monitoring. The ergonomic design with an LCD backlight display ensures ease of use in diverse lighting environments, and the included features HOLD, AUTO-HOLD, MIN, MAX, Peak, and zero phase allow comprehensive data analysis during measurements.

This clamp meter complies with IEC 61010 standards and falls under CAT IV 600 V and CAT III 1000 V safety categories, confirming its suitability for use at electrical installations and industrial distribution systems. The 9 V alkaline battery powering the unit provides long-lasting operation, supporting up to 30 hours of continuous use.

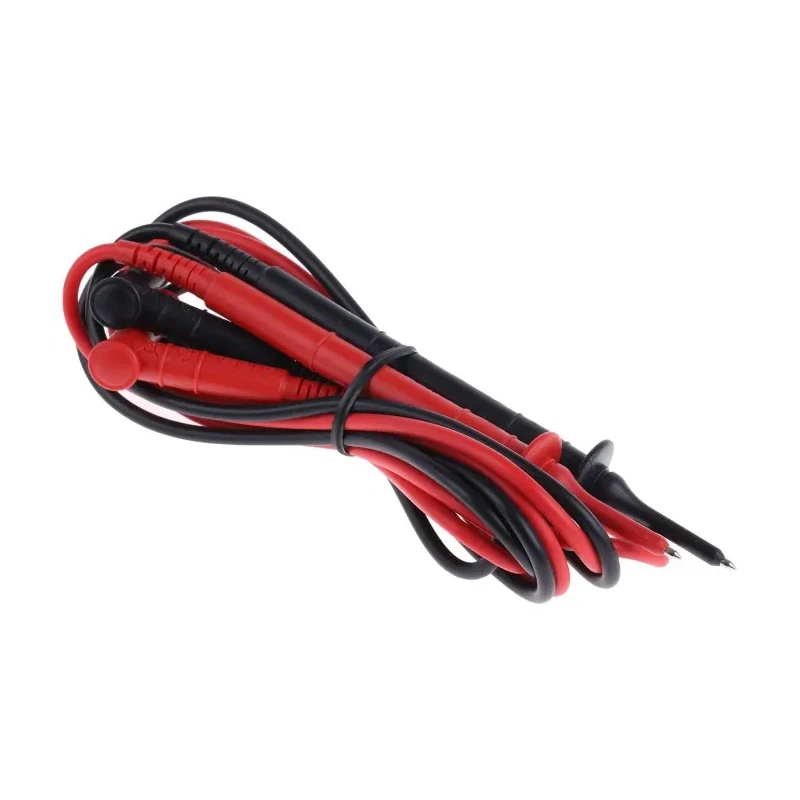

Package contents include the MX675 clamp meter, test probes with 4 mm diameter, a K thermocouple sensor for temperature measurement, a 9 V alkaline battery, a soft carry bag for portability, and an operating manual in multiple languages.

True RMS AC/DC clamp meter for industrial and electrical applications. Measures current, voltage, frequency, resistance, and temperature precisely. Features a 40 mm jaw opening for large conductors. Includes multifunctional measurement features such as HOLD and Peak.

Durable and compliant with CAT IV 600 V and CAT III 1000 V safety standards.

It is an essential tool for technicians, engineers, and maintenance professionals requiring accurate and reliable electrical measurements. Browse more Clamp Meters on EnvMart for your test and measurement needs.
