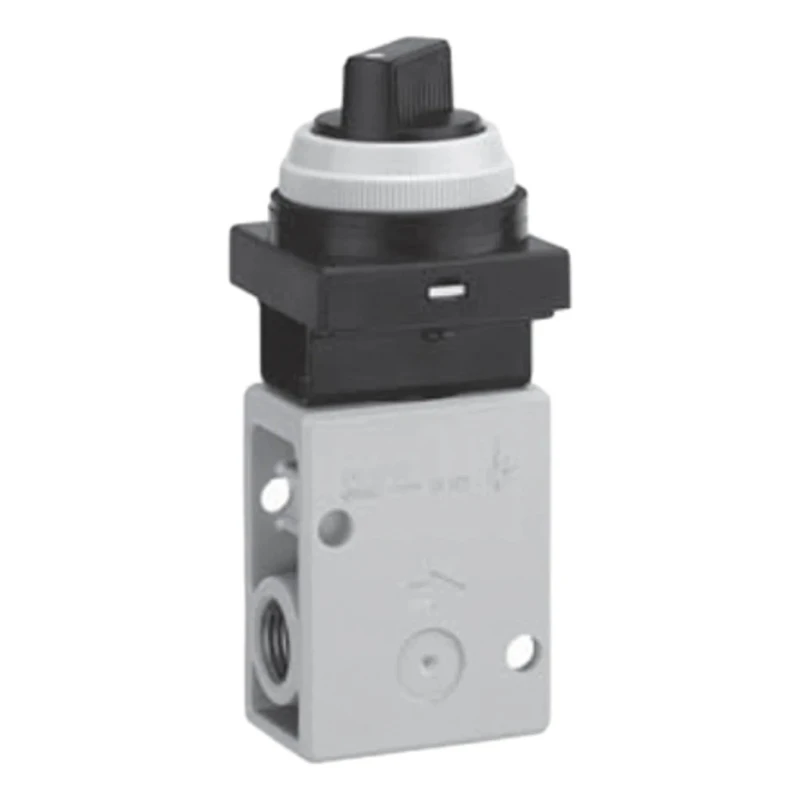

SMC Twist Selector 2 Position Mechanical Valve VM200 Series Rc NPT R 1/4 Zinc Die Cast Alloy Body 1088 L/min 1 VM230-02-34RA

Free Delivery in India | Lowest Global Shipping Charges

SMC Twist Selector 2 Position Mechanical Valve VM200 Series Rc NPT R 1/4 Zinc Die Cast Alloy Body 1088 L/min 1 VM230-02-34RA



Category Pneumatic Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Zinc Die Cast Alloy
Maximum Operating Pressure	1 Mpa
Height	102.1mm
Length	40mm
Model	VM230-02-34RA
Width	25mm
Series	VM200
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/4
Number of Positions	2
Port Size	R 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Twist Selector (2 Position)
Connection Thread Standard	Rc, NPT
Valve Function	Pneumatic Relay
Control Button/Switch Colour	Red

Key Features

Maximum operating pressure of 1 MPa ensures robust system performance.
High flow capacity of 1088 L/min delivers rapid pneumatic signal response.
Zinc die cast alloy body provides corrosion resistance and durability.
Operates reliably between -5°C and +60°C for standard industrial environments.
Compact design with three ports and two selector positions for easy manual control.
Red control button for clear visual indication of valve operation.
Built-in mechanical spring enables return to default position without external power.
Suitable for pneumatic control panels and manufacturing line applications.

Product Description

SMC VM230-02-34RA is a two-position twist selector mechanical valve from the VM200 Series, featuring Rc and NPT R 1/4 threaded connections and a zinc die cast alloy body. It operates as a pneumatic relay designed to control air signals in diverse industrial systems.

This valve offers a maximum flow rate of 1088 L/min and supports a maximum operating pressure of 1 MPa, which ensures efficient and reliable pneumatic signal transmission. Its temperature range from -5°C to +60°C suits typical manufacturing and plant environments.

Equipped with a manual twist selector control and a red control button for easy identification, the valve features three ports configured to support supply and exhaust routing. The built-in mechanical spring facilitates a return to the default position without requiring external power, enhancing operational safety and convenience.

The zinc die cast alloy body offers sturdy corrosion resistance and long-lasting durability, making it suitable for compact installations where space savings are critical. This makes it ideal for pneumatic control panels, vacuum systems requiring reliable relay action, and application environments that demand mechanical robustness.

The valve complies with no specific standards or approvals but its design focuses on performance and reliability. Its dimensions of 102.1 mm height, 40 mm length, and 25 mm width ensure a compact footprint, suitable for tight installation spaces in industrial settings.

Maximum flow capacity of 1088 L/min for rapid response. Maximum operating pressure of 1 MPa for robust use. Temperature operation from -5°C to +60°C. Zinc die cast alloy body for corrosion resistance. Manual two-position twist selector control.

Red control button for clear actuation indication. Three-port pneumatic relay configuration. Built-in mechanical spring for self-returning action. Standard Rc and NPT 1/4 threaded connections.

Commonly used across industrial pneumatic control panels, manufacturing automation lines, vacuum applications, and compact pneumatic system installations, this mechanical valve combines durability with manual precision control.
