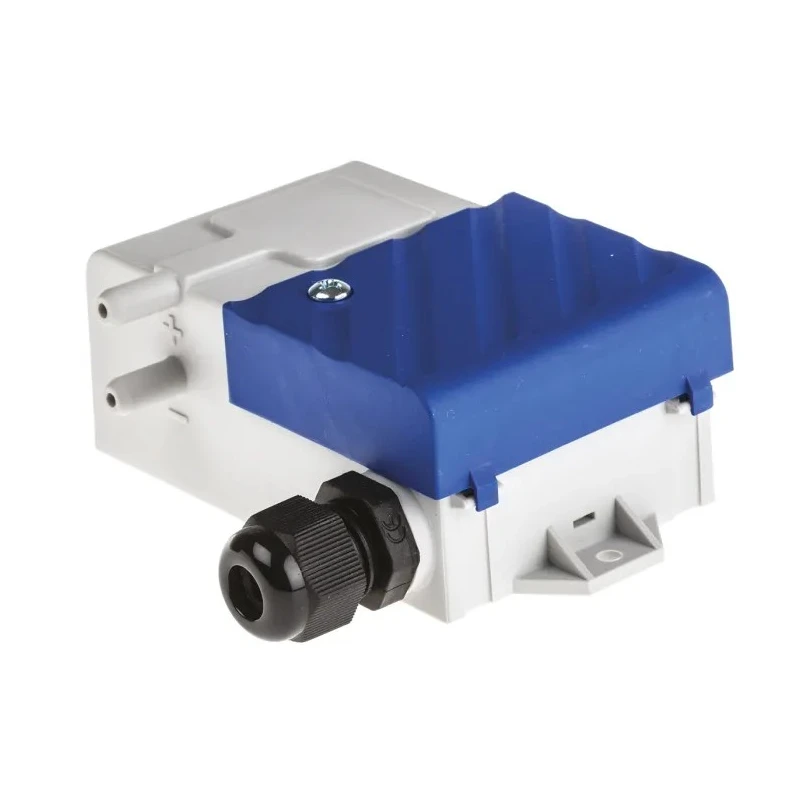

Gems Sensors 5266 Series Differential Pressure Sensor Analogue Output 0 Pa to 500 Pa, Stainless Steel Housing 5266500LBHTI

Gems Sensors 5266500LBHTI is a high-quality differential pressure sensor from the 5266 Series, providing reliable analogue output for precise measurement of air and non-conductive gases. Built with a robust stainless steel welded sensor housing, this unit is suitable for demanding industrial, HVAC, laboratory, and automation applications requiring differential pressure measurement from 0 Pa to 500 Pa.

The sensor delivers exceptional ±1% full scale accuracy and a rapid 1 second response time, ensuring precise and timely pressure readings. It supports a supply voltage range of 9V to 30V AC/DC, allowing flexible integration into various control systems. The sensor output is bi-directional for measuring pressure differentials accurately in positive and negative directions.

Designed for durability and performance, the stainless steel housing is CE certified and rated for operating temperatures from -18°C to 65°C. The compact form factor with dimensions of approximately 100 mm length, 39 mm diameter, and 89 mm height facilitates easy mounting in confined spaces. Connections are made via terminal strip for convenient installation.

Designed for use with air and non-conductive gases. Equipped with stainless steel welded sensor for durability. Offers ±1% full scale accuracy across -18°C to +65°C temperature compensated range. Output is bidirectional with a 1 second response time.

Operates with supply voltage range from 9V to 30V AC/DC. CE certified housing ensures reliable industrial performance. Built for applications requiring precise differential pressure measurement. Compact design with dimensions approximately 100x39x89 mm.

This pressure sensor is an ideal choice for industrial, automation, HVAC, laboratory instrumentation, and commercial equipment that demand robust and accurate differential pressure monitoring. Gems Sensors 5266 Series units are recognized for their reliability and durability in complex operational environments.

Explore EnvMart’s wide range of high-performance Pressure Sensors and automation components to equip your projects with the best in precision measurement technology.
