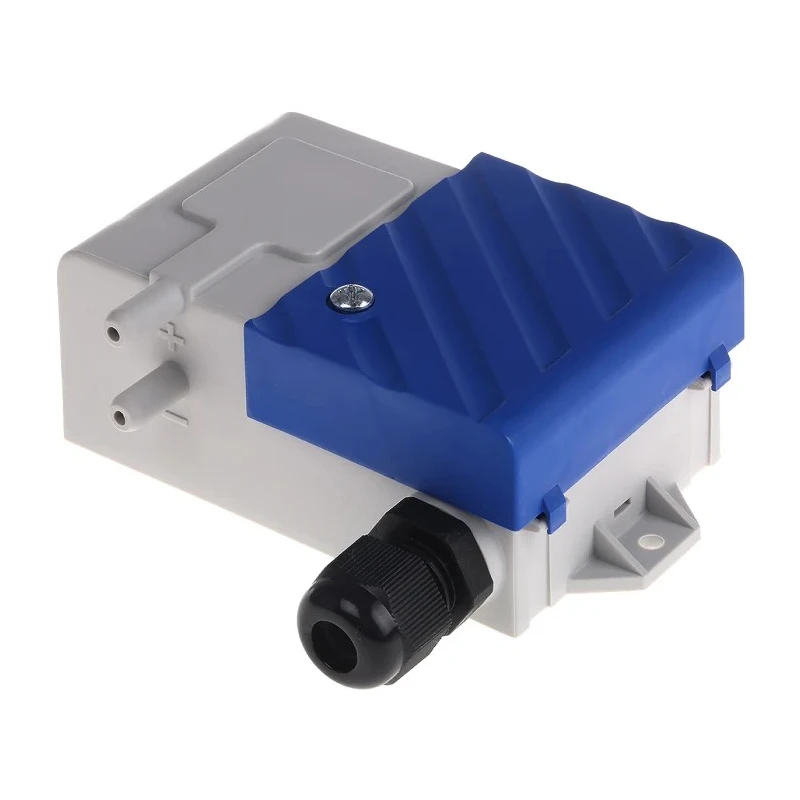

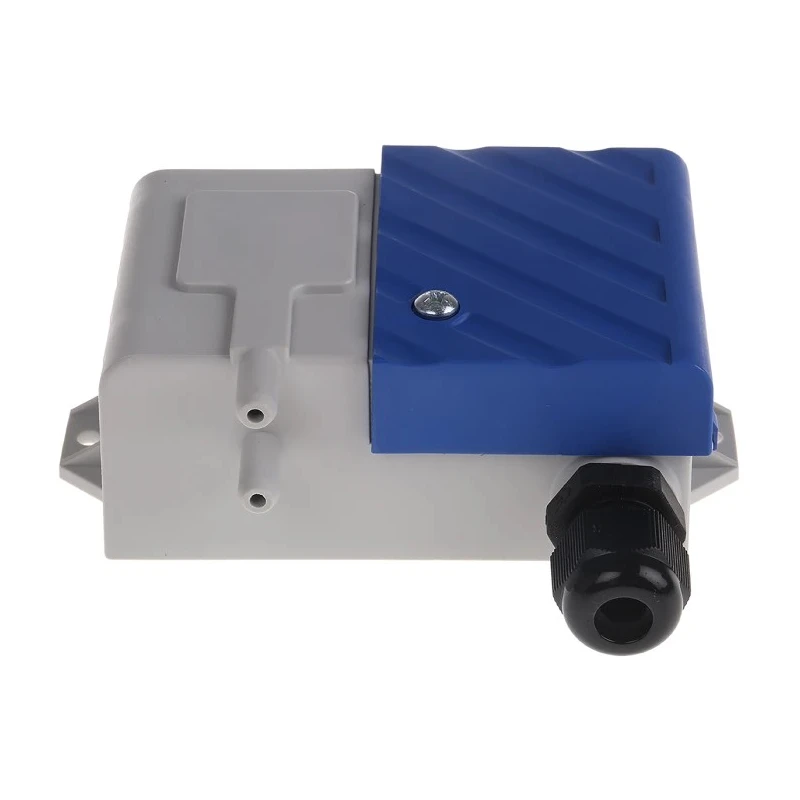

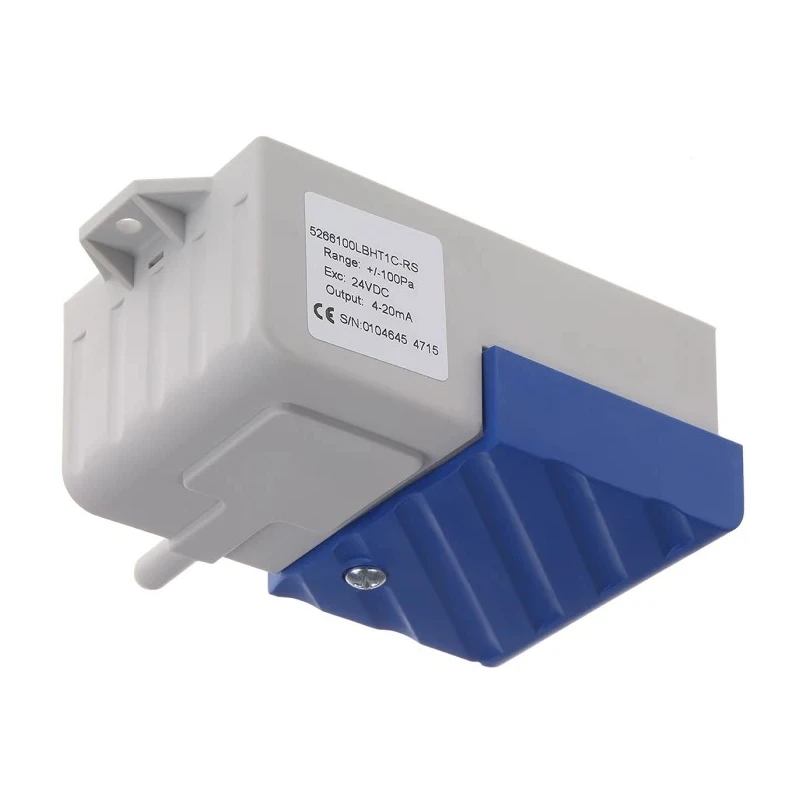

Gems Sensors 5266 Series Differential Pressure Sensor Analogue Output 0 Pa to 100 Pa, 9-30V AC/DC, Stainless 5266100BHTI

Gems Sensors 5266100BHTI is a differential pressure sensor from the reputable 5266 Series, featuring analogue output for precise pressure measurement. Designed primarily for measuring air and other non-conductive gases, it accurately senses pressures ranging from 0 Pa minimum to 100 Pa maximum. The sensor achieves ±1% full scale accuracy, compensated for a temperature range from -18°C up to 65°C, ensuring dependable performance in diverse environments.

The sensor's body is constructed from stainless steel with welded sensor elements that provide robustness against wear and corrosion, making it suitable for demanding industrial conditions. It includes 6.2 mm tube fittings and connects electrically via a terminal strip for straightforward integration.

This model operates on a wide voltage range of 9V to 30V AC or DC, offering compatibility with various power supplies. Its compact dimensions of 100 mm length, 39 mm diameter, and 89 mm height enable flexible mounting options. The output signal is analogue and bi-directional, capable of sensing differential pressures effectively with a rapid 1-second response time.

The Gems Sensors 5266 Series differential pressure sensor is ideally suited for industrial automation, HVAC system monitoring, pneumatic pressure measurement, laboratory instrumentation, and other manufacturing applications requiring precise and reliable pressure data. The sensor's durable stainless steel housing and versatile operating range make it a dependable choice for long-term usage.

Wetted parts compatible with air or non-conductive gases for versatile industrial applications. 1% full scale accuracy with compensation from -18°C to 65°C for reliable readings. Robust stainless steel welded sensor housing ensures durability and corrosion resistance.

Electrical connection via terminal strip offers easy installation and maintenance. Compact design with dimensions L100×D39×H89mm fits various industrial setups. Fast response time of 1 second, suitable for real-time pressure monitoring.

Operates on supply voltage range from 9V to 30V AC/DC for flexible power sources. Output is bi-directional, allowing accurate differential pressure measurement. Ideal for industrial automation, HVAC, pneumatic systems, and laboratory uses.
