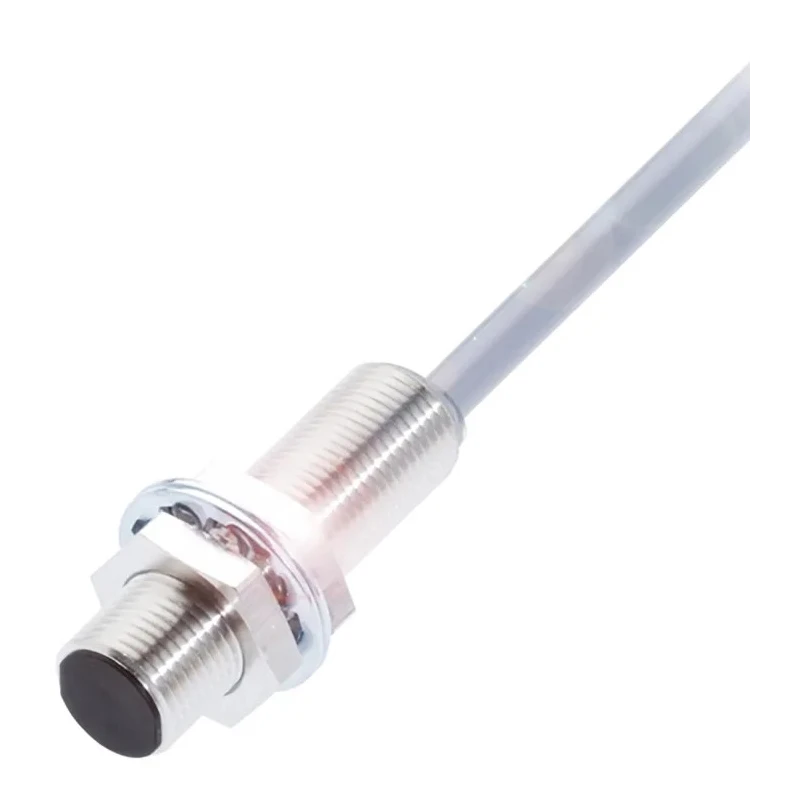

BALLUFF Threaded Barrel Inductive Proximity Sensor M12 2-Wire 36V 3 mm Detection BES M12MG-USC30B-BV02
Specifications
| Country of Origin | China |
|---|---|
| Brand | BALLUFF |
| Length | 43mm |
| Model | BES M12MG-USC30B-BV02 |
| IP Rating | IP67 |
| Width | 43mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | 2-Wire |
| Maximum Operating Temperature | 70°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.3kHz |
| Standards/Approvals | cULus, IEC 60947-5-2, CE, EAC |
| Maximum Supply Voltage | 36V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 3mm |
Key Features
- Sensor features an M12 threaded barrel body style for flush mounting.
- Provides a maximum detection range of 3 mm for precise sensing.
- Operates at a maximum supply voltage of 36 V dc with a 2-wire output type.
- Robust brass housing with IP67 rating ensures durability against dust and water ingress.
- Pre-cabled terminal type allows easy installation without connectors.
- Wide operating temperature range from -25°C to 70°C for versatile industrial use.
- Maximum switching frequency of 1.3 kHz suitable for fast applications.
- Shielded design reduces interference and provides stable switching current of 100 mA.
Product Description
BALLUFF BES M12MG-USC30B-BV02 is a threaded barrel Inductive Proximity Sensor featuring an M12 body size. It operates with a 2-wire output configuration at 36 V dc, offering a precise maximum detection distance of 3 mm. This sensor is engineered to withstand harsh industrial environments, featuring a brass housing with an IP67 ingress protection rating.
Its pre-cabled terminal type simplifies installation by eliminating the need for connectors. Designed for flush mounting, the sensor ensures efficient and reliable detection in automated manufacturing, machinery control, robotics, and metal detection applications.
Operating temperatures range from -25°C to 70°C, supporting usage in various climatic conditions. The sensor’s shielding provides significant resistance to electromagnetic interference, maintaining signal integrity for continuous operation.
The BES M12MG-USC30B-BV02 has a high switching frequency capability of up to 1.3 kHz and supports a switching current of 100 mA. It complies with multiple international standards such as cULus, IEC 60947-5-2, CE, and EAC, certifying its quality and safety.
Materials detected include metals like polybutylene terephthalate, broadening its application spectrum. Manufactured in China, this product delivers dependable performance for electrical automation, process control, and sensor integration solutions.
Sensor features an M12 threaded barrel body style for flush mounting. Provides a maximum detection range of 3 mm for precise sensing. Operates at a maximum supply voltage of 36 V dc with a 2-wire output type. Robust brass housing with IP67 rating ensures durability against dust and water ingress.
Pre-cabled terminal type allows easy installation without connectors. Wide operating temperature range from -25°C to 70°C for versatile industrial use. Maximum switching frequency of 1.3 kHz suitable for fast applications.
Shielded design reduces interference and provides stable switching current of 100 mA. Complies with internationally recognized standards including cULus, IEC 60947-5-2, CE, and EAC.
This BALLUFF proximity sensor is ideal for diverse industrial, manufacturing, automation, robotics, and control system setups requiring robust and accurate metal detection. For more options, explore the Electronics & Electricals Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 3 mm.
It operates at a maximum supply voltage of 36 V dc.
This unit features a 2-wire output type.
The sensor has an IP67 rating, ensuring protection against dust and water ingress.
The maximum switching frequency is 1.3 kHz, suitable for fast applications.
It can detect metals, including polybutylene terephthalate.
The operating temperature range is from -25°C to 70°C.
The housing is made of brass, providing durability in industrial environments.
It is designed for flush mounting with a threaded barrel body style.
It features a pre-cabled terminal type for easy installation without connectors.
It complies with cULus, IEC 60947-5-2, CE, and EAC standards.
The sensor has a width and length of 43 mm each.
