TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Yellow 165028

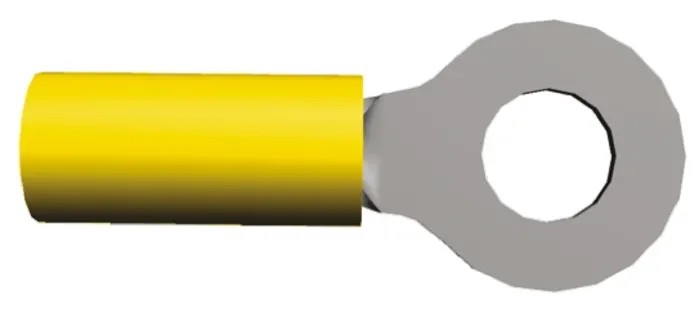

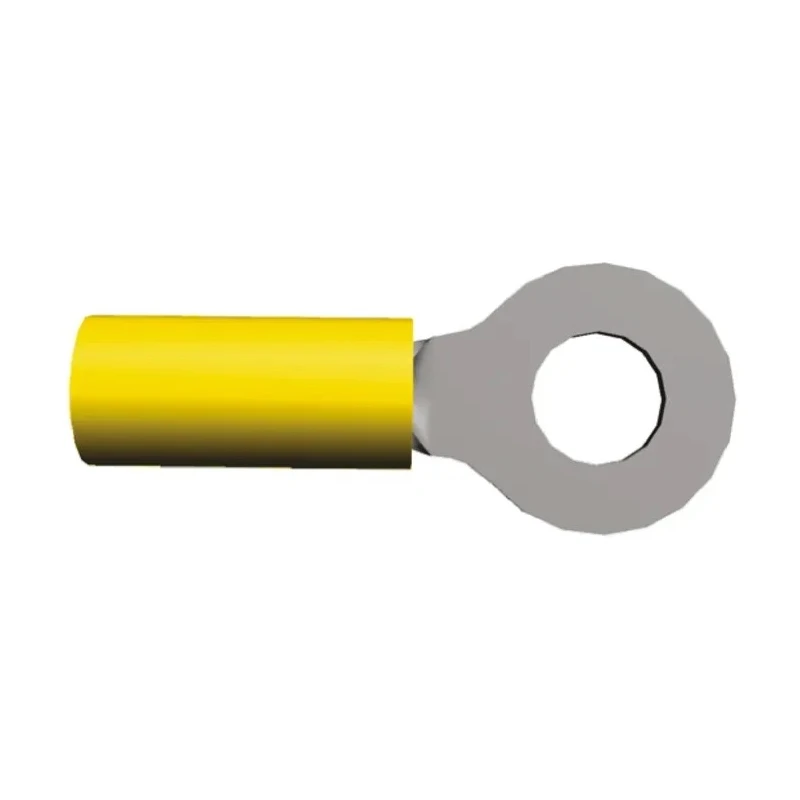

TE Connectivity 165028 PIDG Insulated Ring Terminal is a precision-engineered electrical connector designed for secure and reliable wire termination in industrial and electronic applications. This ring terminal is insulated and intended for use with wire sizes ranging from 12 AWG to 10 AWG, featuring a stud size of M6. Its yellow color-coded nylon sleeve aids quick identification and tooling setup.

The terminal body is made from high conductivity copper with a tin plating to ensure excellent conductive performance and corrosion resistance. A copper sleeve inside the barrel improves wire insulation support and prevents fraying of wire strands. Serrations within the wire barrel provide maximum contact and tensile strength after crimping, resulting in a uniform and dependable termination.

Designed to enable efficient high-speed production, the funnelled wire entry helps prevent wire strand turn-back, facilitating fast and consistent wire insertion. The terminal supports an overall length of 29.9 mm with a thickness of 0.79 mm, making it suitable for a wide range of wiring and power distribution applications.

This PIDG ring terminal complies with RoHS environmental standards, ensuring eco-friendly usage while maintaining performance. It can operate at temperatures up to 105°C, making it robust for industrial, automotive, aerospace, transportation, and appliance wiring use cases.

High conductivity copper body with tin plating for corrosion resistance. Copper sleeve inside the barrel enhances insulation and support. Yellow color-coded nylon sleeve for easy wire size identification. Funnelled wire entry prevents wire strand turn-back during crimping.

Suitable for wires from 12 AWG to 10 AWG and an M6 stud size. Complies with RoHS standards for environmental safety. Maximum operating temperature rating of 105°C.

This Ring Terminal is ideal for applications including instruments, control panels, lighting systems, power supplies, transportation equipment, lifting machinery, motors, aerospace, and household appliances. Explore EnvMart for more quality electrical connectors and terminals for industrial and commercial needs.
