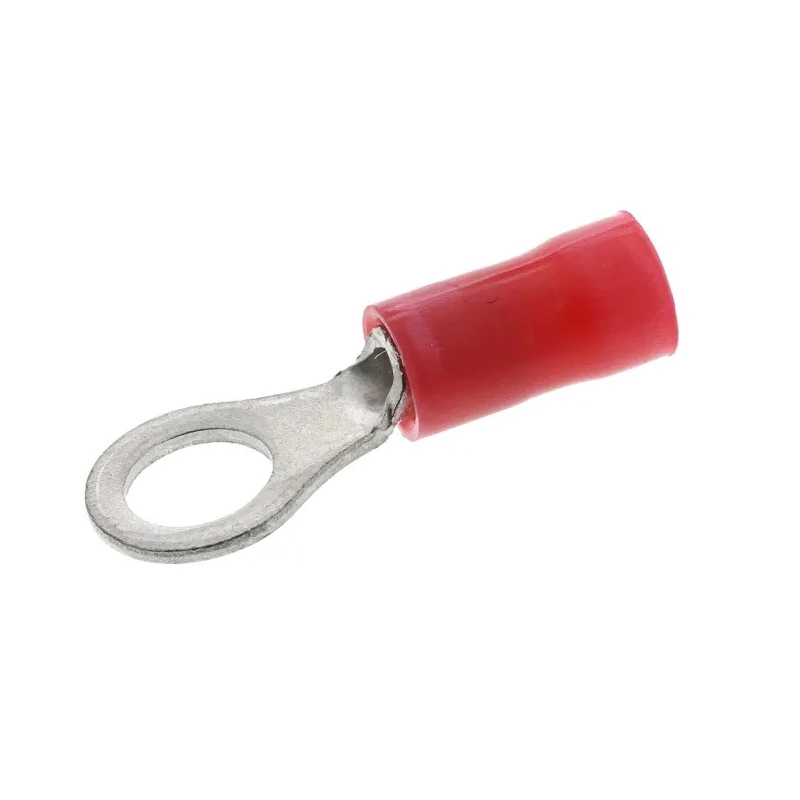

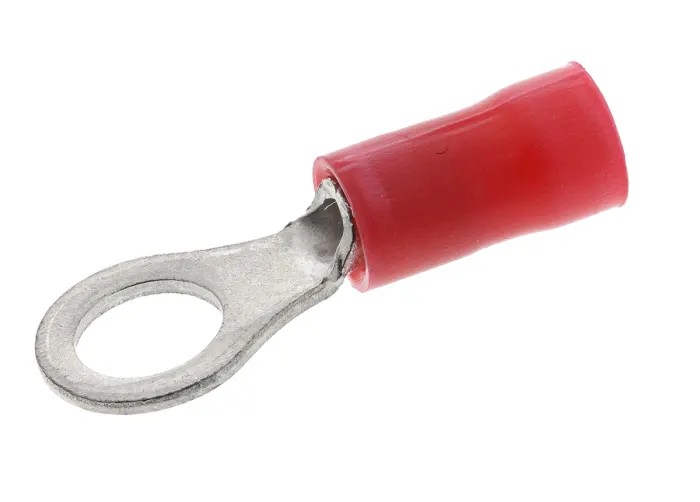

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Red 130014

TE Connectivity 130014 PLASTI-GRIP insulated ring terminal is engineered for secure and reliable electrical connections in wire-to-stud applications.

Constructed from tin plated copper, this ring terminal ensures excellent conductivity and corrosion resistance. The 94V-0 rated vinyl insulation sleeve offers high dielectric strength, providing safe electrical insulation.

The terminal features a serrated inner barrel within the closed barrel design to maximize electrical contact area and mechanical retention after crimping. The expanded funnel entry facilitates effortless stripped wire insertion.

With an overall length of 21.8 mm and an M5 stud size, this terminal accommodates wire sizes from 22 AWG (0.26 mm²) to 16 AWG (1.6 mm²). It is rated for a maximum operating temperature of 90°C, making it suitable for a broad range of electrical wiring installations.

Manufactured using high conductivity tin plated copper for superior performance. Features a high dielectric strength vinyl insulation sleeve rated 94V-0 for electrical safety. Serrated inner barrel design ensures maximum tensile and electrical contact strength.

Funnel shaped wire barrel entry facilitates easy wire insertion and crimping. Designed for M5 stud size, compatible with standard electrical assemblies. Suitable for wire sizes between 22 AWG and 16 AWG for versatility. Red insulation sleeve for easy wire size identification.

Maximum operating temperature of 90°C ensures dependable service. This Ring Terminal is ideal for industrial, commercial, and laboratory electrical applications requiring secure and durable wire terminations. Explore EnvMart for a wide range of professional wire terminals and electrical connectors designed for optimal performance and reliability in demanding environments.
