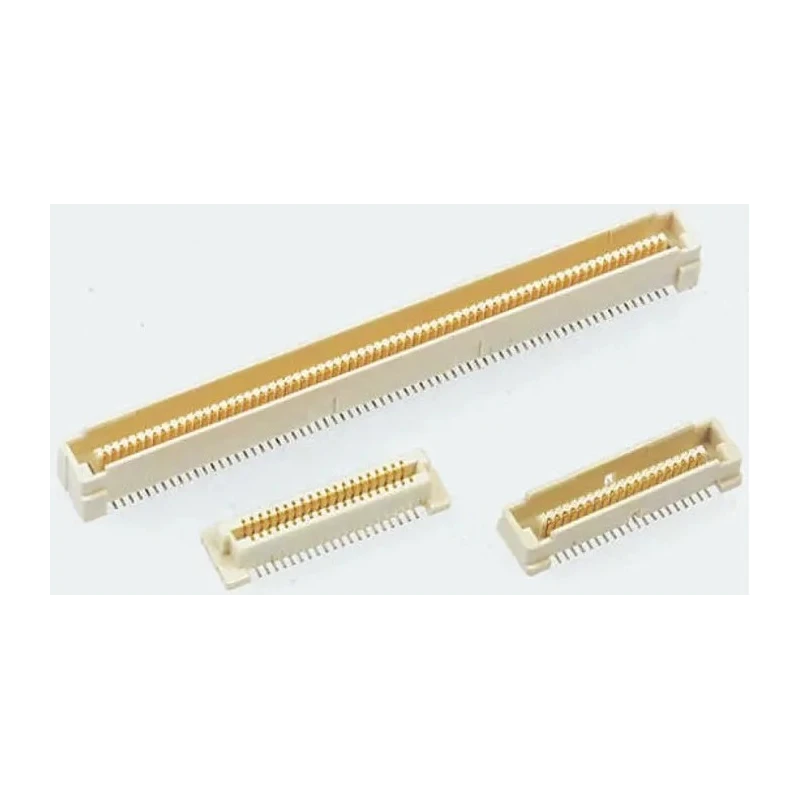

TE Connectivity Free Height Series Straight Surface PCB Socket 40-Contact 2 Row 0.8mm Pitch Solder 5177985-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket uses a solder termination type for secure PCB mounting.
- Constructed with liquid crystal polymer housing for durability.
- Operating voltage rating is 100 V with a maximum current of 500 mA.
- Features female beryllium copper alloy contacts plated with gold for reliable electrical connection.
- Designed for surface mount with a straight orientation and Free Height series.
- Operating temperature range from -40°C to 125°C ensures performance in diverse environments.
- Polarized design and PCB positioning bosses for accurate placement and reliable mating.
- Suitable for compact electronic devices like notebook PCs, mobile phones, and pen pads requiring miniature connectors.
Product Description
TE Connectivity 5177985-1 Free Height Series Straight Surface PCB Socket is a 40-contact, 2-row receptacle connector for board-to-board applications designed with a 0.8 mm pitch. This socket features solder termination and a liquid crystal polymer housing, providing high durability and reliable electrical performance at up to 100 volts and 500 mA current rating.
The socket includes female beryllium copper alloy contacts with gold plating for excellent conductivity and corrosion resistance. Its straight orientation and surface mount type facilitate easy PCB assembly.
Engineered to endure temperatures from -40°C to 125°C, this connector accommodates demanding industrial and electronic environments. The Free Height series employs a bellows-type spring contact design that prevents scooping or stubbing damage during mating/unmating cycles, enhancing durability.
This polarized connector ensures precise mating alignment, supported by PCB positioning bosses for accurate placement on the circuit board. The miniature design with 0.8 mm pitch allows for a tighter board stacking configuration, saving PCB space compared to standard 1.27 mm pitch options.
Typical applications include use in notebook PCs, pen pads, mobile phones, and other compact electronic devices needing high-density, reliable board-to-board connections. The connector supports a range of board stacking heights from 5 mm to 16 mm when mated with compatible plugs.
The Free Height vertical connectors come in various stacking height options for versatile use cases. Ideal for industrial, telecommunications, consumer electronics, and computer hardware manufacturing sectors. Explore more TE Connectivity PCB Sockets on EnvMart for enhanced productivity and reliable electronics assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity Free Height Series PCB socket has a voltage rating of 100V and a maximum current rating of 500mA.
This model features a pitch size of 0.8mm, allowing for a tighter board stacking configuration compared to standard options.
The housing is made from liquid crystal polymer, and the contacts are constructed from beryllium copper alloy with gold plating for reliable electrical connection.
It operates within a temperature range of -40°C to 125°C, making it suitable for diverse environments.
This connector has a total of 40 contacts arranged in 2 rows.
The socket utilizes a solder termination type for secure PCB mounting.
Yes, this model features a polarized design that ensures precise mating alignment during connection.
It is suitable for compact electronic devices such as notebook PCs, mobile phones, and pen pads that require high-density board-to-board connections.
This socket has a straight orientation, designed for surface mount applications.
The Free Height series employs a bellows-type spring contact design that prevents damage during mating/unmating cycles, enhancing durability.
The country of origin for this PCB socket is India.
This model is designed as a board-to-board connector system, suitable for various stacking heights.
