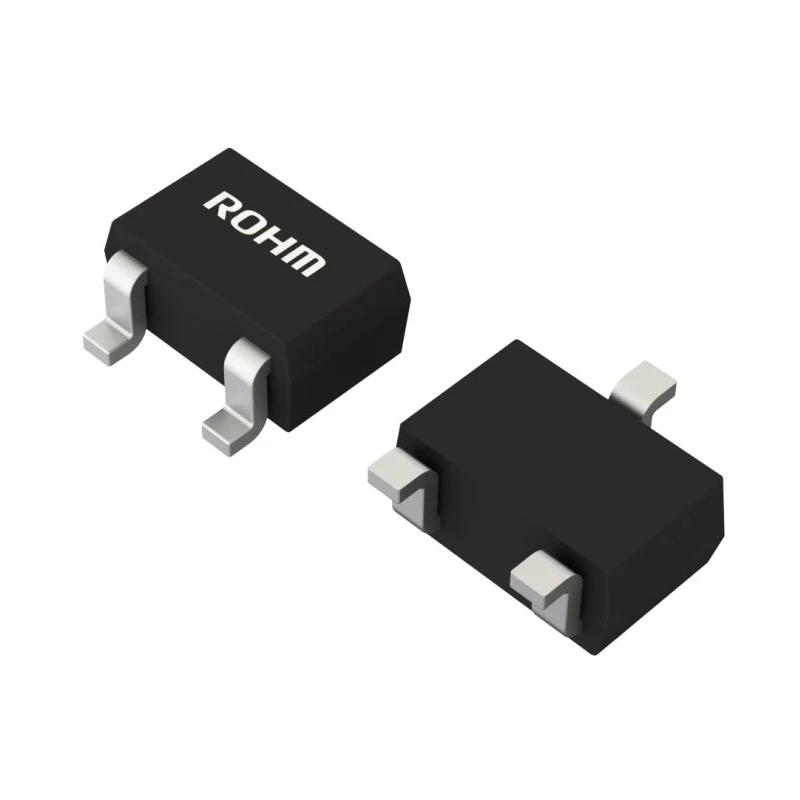

ROHM 40 V 0.08 A Schottky Diode 3-Pin SOT-323 RB508FM-40SFHT106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB508FM-40SFHT106 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 0.08A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 340μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 0.66V |
Key Features
- Compact 3-pin SOT-323 surface mount package for space-saving PCB design.
- Maximum continuous forward current of 0.08 A ensures reliable rectification.
- Low forward voltage of 0.66 V reduces power loss during operation.
- Peak reverse voltage rating of 40 V supports various electronic circuit needs.
- Wide operating temperature range from -55°C to 150°C for robust use.
- Ultra-low leakage current with peak reverse current of 340 μA enhances efficiency.
- RoHS compliant and built for high reliability in industrial electronics.
- Suitable for rectification and switching applications in power electronics.
Product Description
The ROHM RB508FM-40SFHT106 Schottky Diode is a high-reliability discrete semiconductor device designed primarily for surface mount applications in electronic circuits. It features a compact 3-pin SOT-323 package, which minimizes PCB area while maintaining excellent electrical performance.
This diode supports a maximum peak reverse repetitive voltage (Vrrm) of 40 V and a maximum continuous forward current (If) of 0.08 A, making it suitable for general rectification and switching tasks in power and signal circuits. The forward voltage drop is rated at a low 0.66 V, which assists in decreasing power dissipation and improving overall device efficiency.
Operating effectively across a broad temperature range from -55°C to 150°C, the RB508FM-40SFHT106 is capable of withstanding harsh environmental conditions, ensuring stable performance during industrial, manufacturing, and consumer electronics applications.
Its ultra-low peak reverse current (Ir) of 340 µA ensures minimal leakage, critical for energy-efficient designs and maintaining signal integrity. The diode complies with RoHS standards, confirming its environmental friendliness and suitability for modern electronic manufacturing requirements.
Compact 3-pin SOT-323 package tailored for surface mounting. 40 V maximum peak reverse voltage supports diverse electronic applications. Forward current of 0.08 A offers efficient rectification capacity. Low forward voltage of 0.66 V minimizes power loss.
Wide operating temperature range from -55°C to 150°C ensures reliability. Ultra-low peak reverse current of 340 μA boosts efficiency. RoHS compliant with high reliability for industrial use. Series diode configuration optimized for rectification.
This diode is perfectly suited for the design and manufacturing of power supplies, converters, and other electronic modules requiring fast switching and low forward voltage drop devices. Engineers and designers in industrial automation, power electronics, and electronic components manufacturing will find the RB508FM-40SFHT106 ideal for enhancing circuit efficiency and durability.
Explore more ROHM semiconductor components and accessories in the Electronics & Electricals category at EnvMart for reliable electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse voltage for this model is 40 V, making it suitable for various electronic circuit applications.
The maximum continuous forward current of the RB508FM-40SFHT106 is 0.08 A, ensuring reliable rectification in electronic circuits.
The forward voltage drop is rated at a low 0.66 V, which helps reduce power loss during operation.
This model operates effectively across a wide temperature range from -55°C to 150°C, ensuring reliability in various environments.
The diode comes in a compact 3-pin SOT-323 surface mount package, designed for space-saving PCB applications.
The peak reverse current is 340 μA, which contributes to its ultra-low leakage characteristics, enhancing efficiency in designs.
Yes, this diode is RoHS compliant, confirming its suitability for modern electronic manufacturing standards.
This model is a Schottky rectifier, optimized for applications requiring fast switching and low forward voltage drop.
The peak non-repetitive forward surge current for the RB508FM-40SFHT106 is rated at 1 A.
This diode is suitable for rectification and switching applications in power electronics, enhancing circuit efficiency and durability.
The diode features a 3-pin configuration, suitable for surface mounting in electronic circuits.
The RB508FM-40SFHT106 is manufactured in India.
