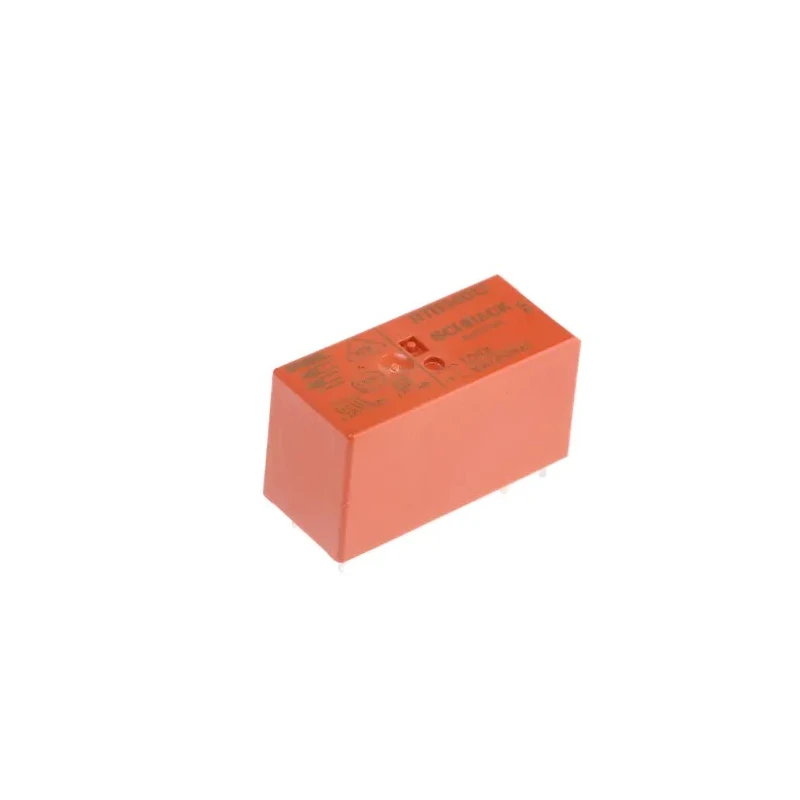

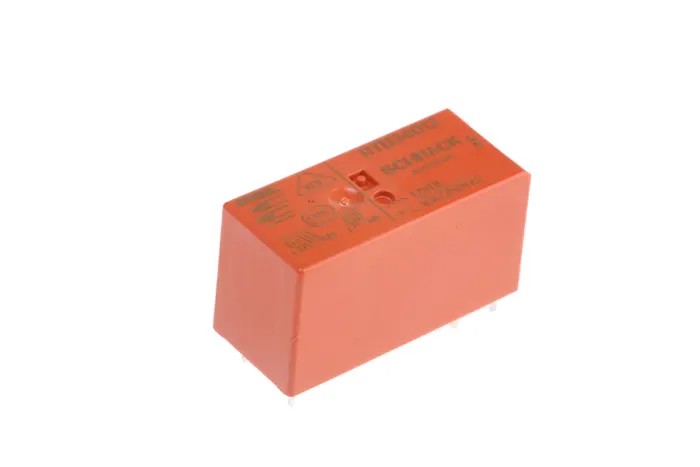

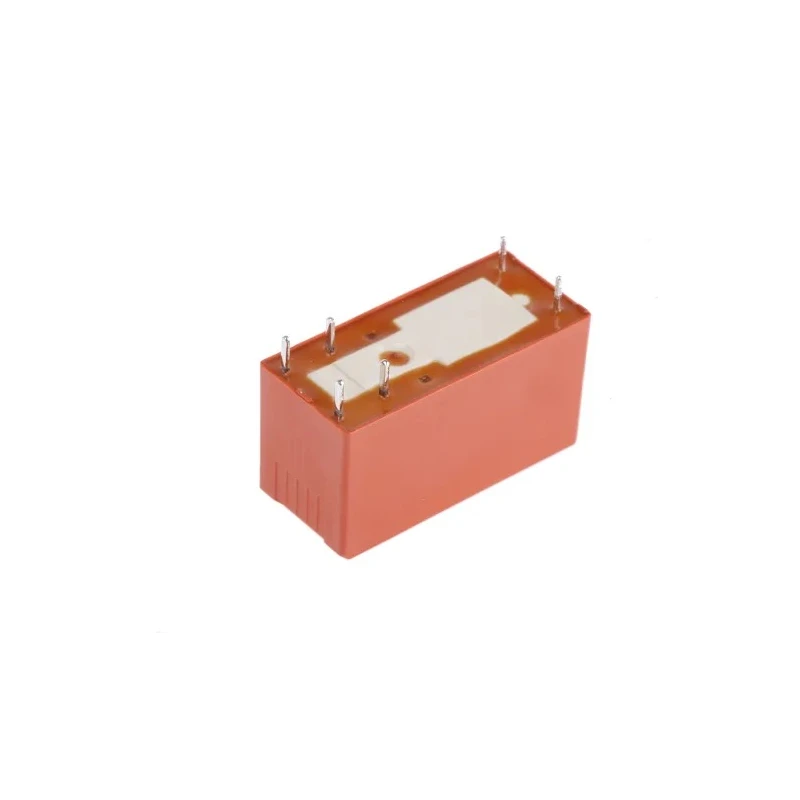

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPST RTD34012

TE Connectivity RTD34012 PCB Power Relay is a high-quality relay designed for efficient switching in electrical, automation, and control applications. Featuring a 12V DC coil and 16A switching current, this SPST (Single Pole Single Throw) relay is ideal for printed circuit board (PCB) mounting, facilitating robust electrical connections and control.

This relay belongs to the RT1 series characterized by 3.5mm pinning and flux-proof design, enhancing reliability and performance in industrial and consumer automation environments. The relay's silver nickel alloy contacts provide excellent conductivity and resistance to wear, ensuring long service life.

With an operating temperature range from -40°C to 85°C, it withstands harsh environmental conditions, making it suitable for use in HVAC systems, security lighting, domestic appliances, and general automation tasks. The relay is designed to handle a maximum switching AC voltage of 400V AC and delivers stable operation with minimal coil power consumption of 250mW.

The compact form factor - measuring 29mm in length, 12.7mm in width, and 15.7mm in height - optimizes space on PCBs and supports easy integration in various electronic circuits. Its through-hole mount type and solder terminal connectors enable reliable and durable PCB installation.

Additionally, the RTD34012 relay complies with essential safety and environmental standards, including VDE, IEC 60335-1, and RoHS, ensuring safety, quality, and environmental friendliness.

The coil voltage is 12V DC, enabling efficient electrical control. Single Pole Single Throw (SPST) contact design provides reliable switching. Supports a switching current up to 16A and switching AC voltage of 400V AC. Constructed with silver nickel alloy contact material for enhanced durability.

Operating temperature ranges from -40°C to 85°C, suitable for varied environments. Coil resistance is 360Ω with a coil power consumption of 250mW. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height optimize PCB space.

Designed for through-hole mounting with solder terminals ensuring secure installation. Compliance with VDE, IEC 60335-1, and RoHS standards ensures safety and regulatory adherence.

This power relay is widely used in industrial automation, manufacturing controls, HVAC systems, security lighting, and domestic appliance applications requiring reliable switching performance. Browse the Electronics & Electricals category at EnvMart for more Power Relays and electrical components.
