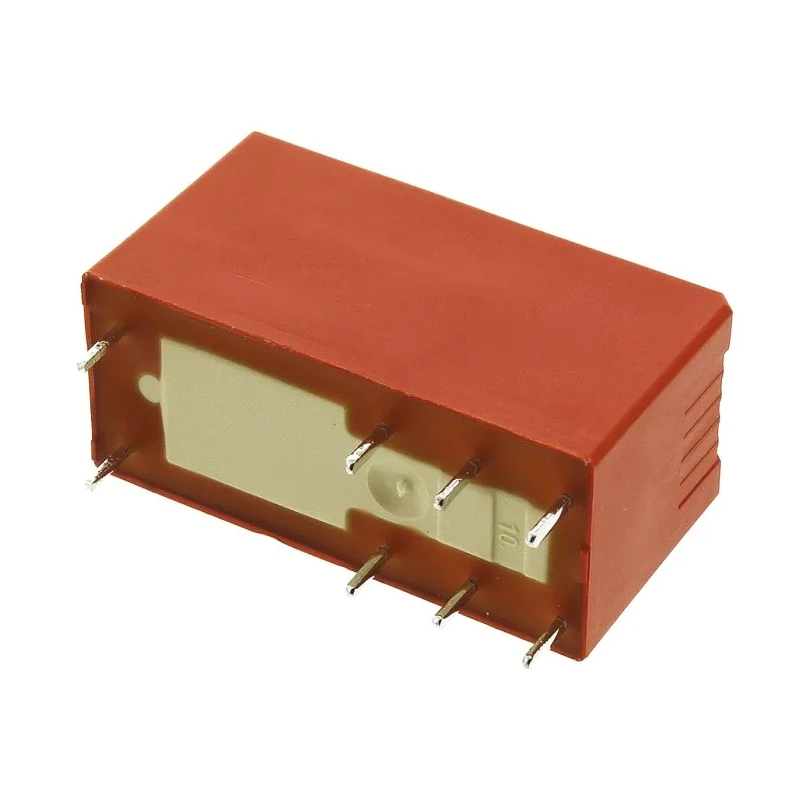

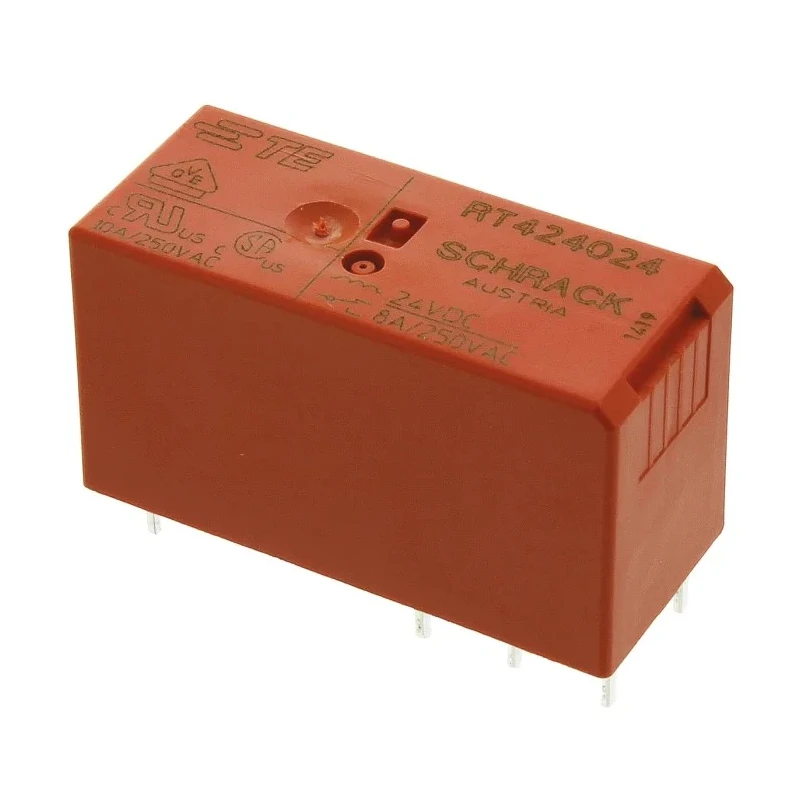

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current DPDT RT424024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay is PCB mount type with solder terminal configuration for secure connections.
- Operates efficiently with coil resistance of 1.4kΩ and coil power of 250mW.
- Designed to switch AC voltages up to 400V with silver nickel alloy contacts for excellent conductivity.
- Can operate within temperatures from -40°C to 85°C suitable for industrial environments.
- Compact form factor with dimensions 29mm length, 15.7mm height, and 12.7mm width.
- Complies with standards including VDE, RoHS, and IEC 60335-1 assuring safety and quality.
- Non-latching design ideal for automation, control systems, and POS terminals.
- Contact spacing and creepage distances support durability and electrical isolation.
Product Description
TE Connectivity RT424024 is a high-quality PCB mount power relay featuring a 24V dc coil and DPDT (Double Pole Double Throw) contact configuration. Designed to handle a switching current of 8 amperes, this relay provides reliable control for a wide range of industrial and automation applications.
With a coil resistance of 1.4kΩ and coil power consumption of only 250mW, it ensures energy-efficient operation. The relay contacts are made from silver nickel alloy, offering superior conductivity and resistance to oxidation, making it suitable for switching AC voltages up to 400V.
Its operating temperature range from -40°C to 85°C allows deployment in harsh environments, while its compact dimensions (29mm length, 15.7mm height, and 12.7mm width) enable space-saving PCB designs. The solder-type terminals provide secure and reliable connections ensuring long-term durability.
Standards compliance including VDE, RoHS, and IEC 60335-1 reflects the relay’s adherence to international safety and environmental regulations. The non-latching design supports applications requiring momentary switching such as boiler control, timers, garage door automation, and point-of-sale interfaces.
The relay supports PCB mounting with through-hole solder terminals for easy integration. Its contact configuration DPDT allows switching of two independent circuits simultaneously. Robust construction and creepage distances meet demanding industrial requirements.
Suitable for automation, control systems, HVAC, manufacturing, and commercial electronic systems. Manufactured in Austria, ensuring premium build quality and reliability.
For all Power Relay needs in industrial and electronic control systems, the TE Connectivity RT424024 offers dependable performance and longevity. Explore EnvMart for a broad range of Relays and Contactors for your technical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This relay can handle a maximum switching current of 8A.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
This model operates within a temperature range of -40°C to 85°C.
The coil resistance of the RT424024 relay is 1.4kΩ.
The contacts of this relay are made from silver nickel alloy, providing excellent conductivity.
This relay can switch AC voltages up to 400V.
This relay uses solder-type terminals for secure connections.
The relay complies with standards including VDE, RoHS, and IEC 60335-1.
This relay is suitable for applications in automation, control systems, HVAC, and commercial electronic systems.
The TE Connectivity RT424024 is manufactured in Austria.
