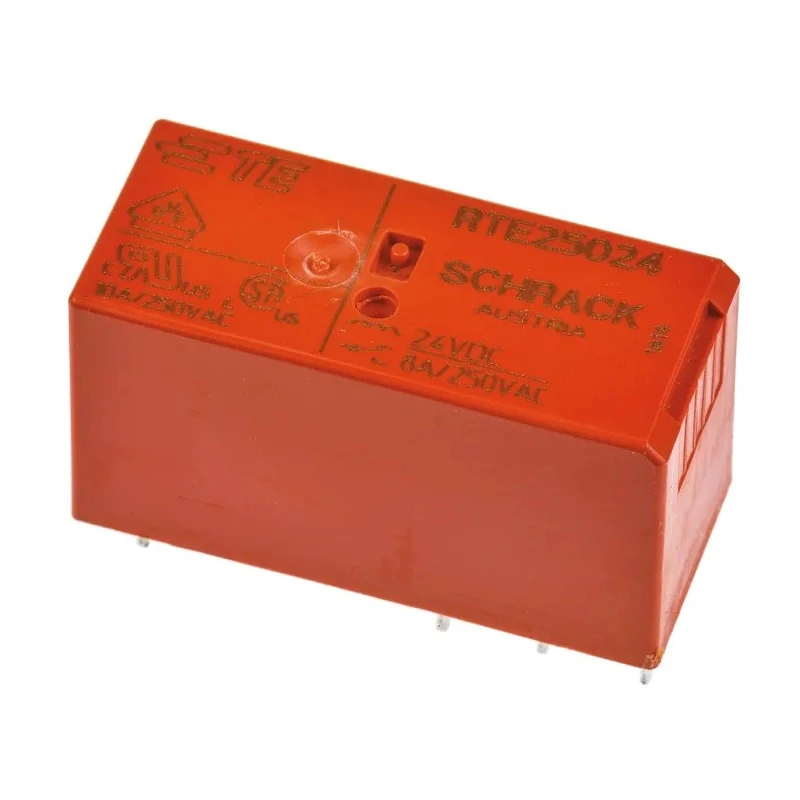

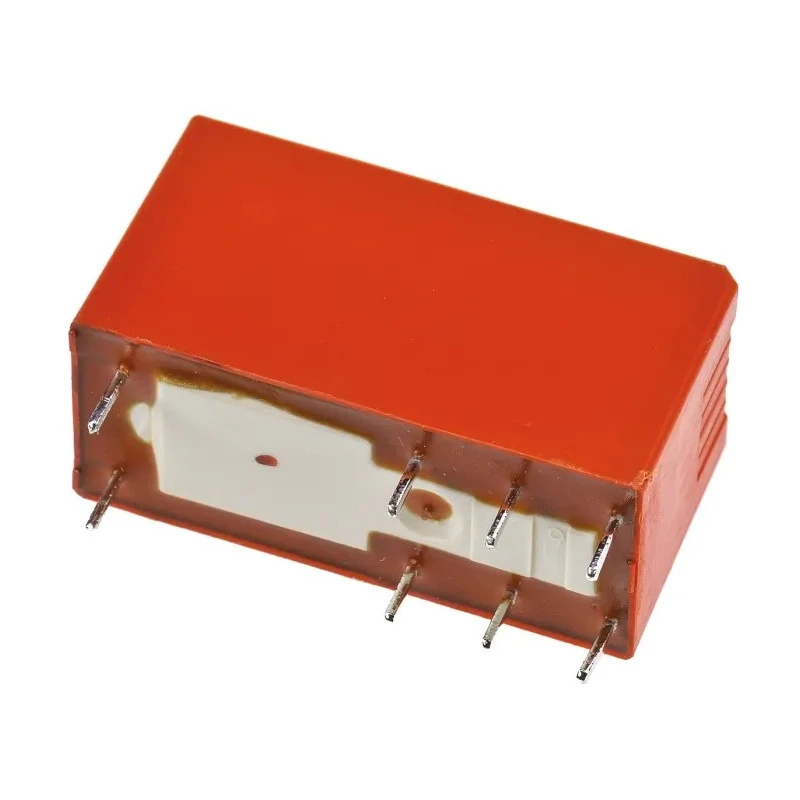

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current DPDT RTE25024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE25024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminals for secure installation.
- Operating temperature range from -40°C to 85°C ensuring reliability in various environments.
- Gold plated contacts provide excellent conductivity and corrosion resistance.
- Low coil power consumption of 250mW contributes to energy efficiency.
- Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width.
- Meets VDE, RoHS, and IEC 60335-1 standards for safety and quality compliance.
- Switching AC voltage rated up to 400V ac suitable for various industrial applications.
- Coil resistance at 1.4kΩ supporting consistent operation.
Product Description
TE Connectivity RTE25024 is a high-performance PCB Power Relay featuring a 24V dc coil and DPDT contact configuration. It supports an 8A switching current with a switching power rating of 2kVA. This relay is designed specifically for PCB mounting with solder terminals, ensuring stable and secure electrical connections.
Operating reliably within a temperature range of -40°C to 85°C, this relay is well-suited for industrial, automation, domestic, and HVAC control applications. The relay's compact dimensions of 29mm length, 15.7mm height, and 12.7mm width allow it to fit efficiently onto control boards without occupying excessive space.
Its gold plated contacts guarantee excellent conductivity and longevity by reducing contact resistance and preventing corrosion. The coil power is rated at 250mW with a resistance of 1.4kΩ, offering efficient coil operation with minimal energy loss.
The RT2 series relay complies with VDE, RoHS directives, and the IEC 60335-1 safety standard, making it suitable for a range of commercial and industrial use cases. Typical applications include automation systems, interface controls, security lighting setups, and heating systems.
Designed for PCB mounting with solder terminals. High switching power rating of 2kVA. Durable gold plated contacts for optimal conductivity. Wide operating temperature range for varied environments. Compact footprint for space-saving circuit design.
Compliance with VDE, RoHS, and IEC 60335-1 standards. Low coil power consumption ensures energy efficiency. Reliable switching of AC voltages up to 400V. Versatile applications in industrial and domestic automation.
Choose TE Connectivity RTE25024 PCB Power Relay for dependable switching performance in your electronic and automation projects. Explore EnvMart for a wide selection of relay types and connectivity solutions to suit various industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 8A.
The coil voltage for this relay is 24V dc.
This relay has a length of 29mm, a height of 15.7mm, and a width of 12.7mm.
The operating temperature range is from -40°C to 85°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is 1.4kΩ.
The switching AC voltage rating is up to 400V ac.
The coil power consumption is rated at 250mW.
The contacts are made of gold plated material, which provides excellent conductivity and corrosion resistance.
This relay complies with VDE, RoHS, and IEC 60335-1 standards.
It is designed for PCB mounting with solder terminals for secure installation.
This model is suitable for applications in industrial, automation, domestic, and HVAC control.
