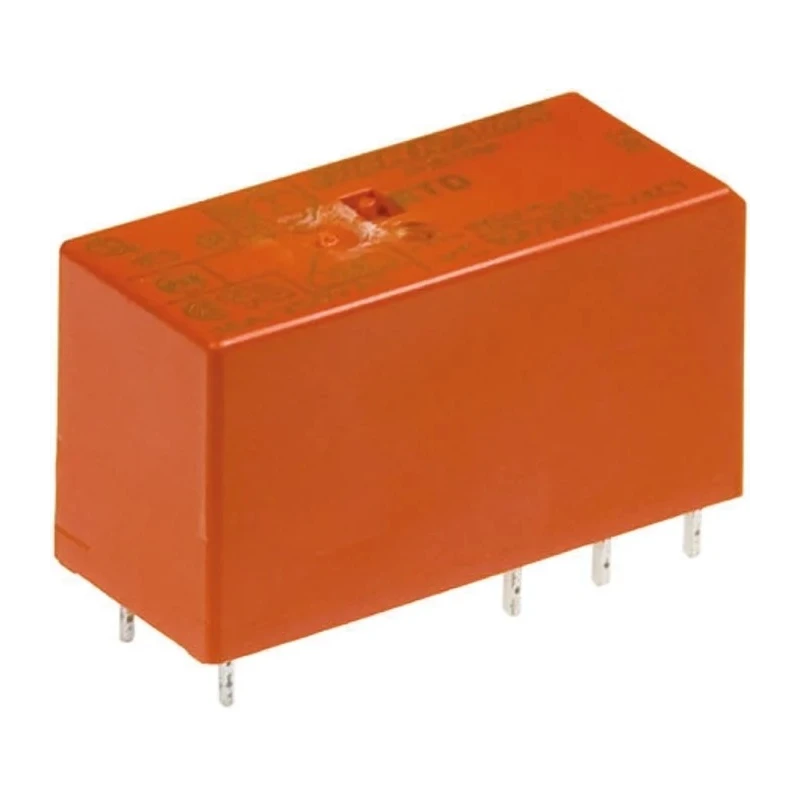

TE Connectivity PCB Power Relay 48V DC Coil 12A Switching Current SPDT RTB14048
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14048 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 5.5kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for through-hole PCB mounting with solder terminal type.
- Features a coil resistance of 5.5kΩ and coil power of 250mW.
- Supports switching AC voltage up to 400V AC and power up to 3kVA.
- Operates in ambient temperatures from -40°C to 85°C.
- Constructed with silver nickel alloy contacts for durability and performance.
- Complies with IEC 60335-1, RoHS, and VDE standards.
- Suitable for automation, domestic appliances, heating systems, security lighting, and interface purposes.
Product Description
TE Connectivity RTB14048 PCB Power Relay is a high-quality Power Relay featuring a 48V DC coil and 12A switching current designed for industrial, automation, and domestic applications. It provides reliable single-pole double-throw (SPDT) contact configuration ideal for controlling loads in interface circuits and heating or security lighting systems.
This PCB-mounted relay employs a through-hole design with solder terminals ensuring secure and easy installation. The coil resistance of 5.5 kilo-ohms and coil power consumption of 250 milliwatts make it energy efficient. It supports switching AC voltages up to 400 volts and switching power of 3 kVA, suitable for various electrical loads and control devices.
It operates within a wide temperature range from -40 degrees Celsius minimum to a maximum of 85 degrees Celsius, providing robust performance in challenging environments. The contact material is a silver nickel alloy, offering superior conductivity and longevity. The relay complies with major international standards including IEC 60335-1, RoHS, and VDE, ensuring safety and environmental compliance.
Dimensions of the relay are compact with a length of 29 millimeters, width of 12.7 millimeters, and height of 15.7 millimeters, enabling integration in space-constrained designs. The RTB series relays from TE Connectivity feature 3.5mm pinning and wash-tight construction, enhancing durability in applications requiring protection against contaminants.
Designed for through-hole PCB mounting with solder terminal type. Operating temperature range from -40°C to 85°C. Supports switching AC voltage of 400V AC and power of 3kVA. Constructed with silver nickel alloy contacts for durability.
Complies with IEC 60335-1, RoHS, and VDE standards. Compact dimensions suitable for versatile installations. Ideal for automation, heating systems, and security lighting applications.
This relay is an excellent choice for industrial, laboratory, manufacturing, and HVAC electrical controls, ensuring reliable switching performance. Explore the TE Connectivity product range on EnvMart for compatible relays and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 12A.
This model operates with a coil voltage of 48V DC.
It supports switching AC voltages up to 400V AC.
The dimensions of the relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a single-pole double-throw (SPDT) contact configuration.
The coil resistance is 5.5kΩ.
The coil power consumption is 250mW.
The contacts are constructed from silver nickel alloy.
It operates in ambient temperatures ranging from -40°C to 85°C.
It complies with IEC 60335-1, RoHS, and VDE standards.
This relay is designed for through-hole PCB mounting with solder terminals.
It is suitable for automation, domestic appliances, heating systems, and security lighting applications.
