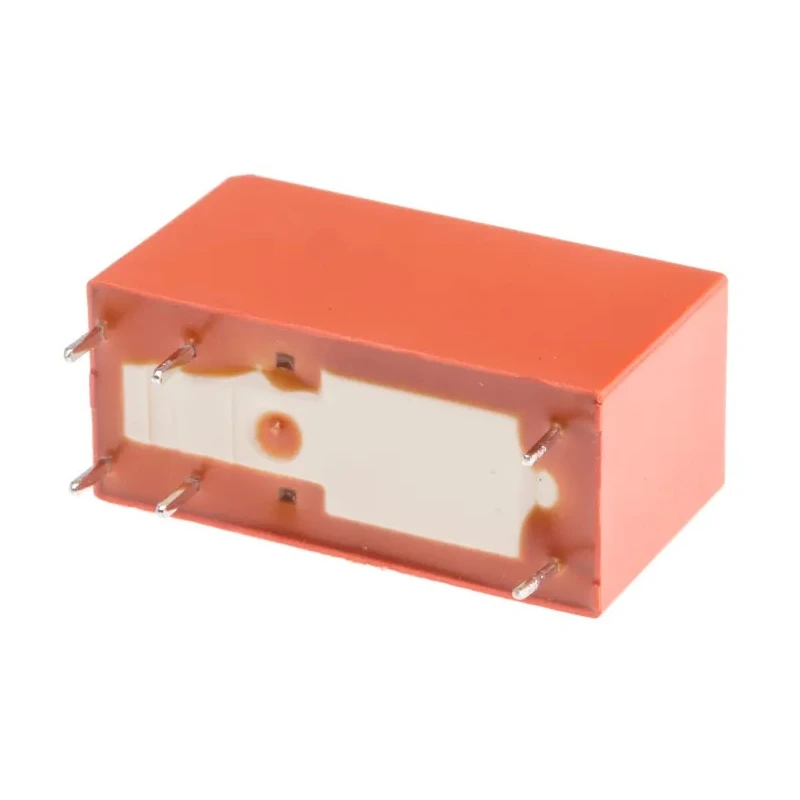

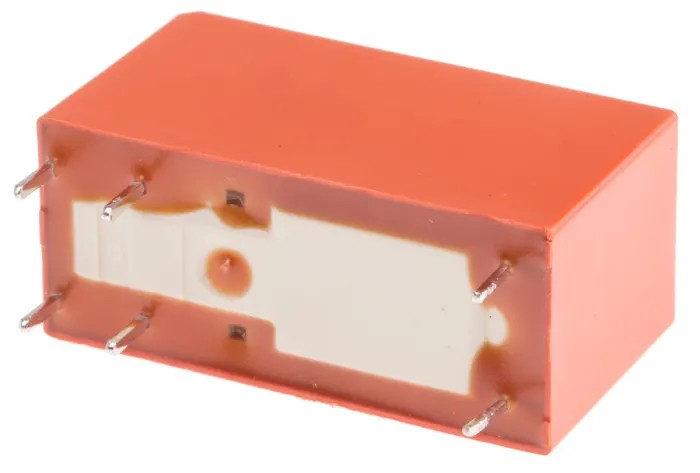

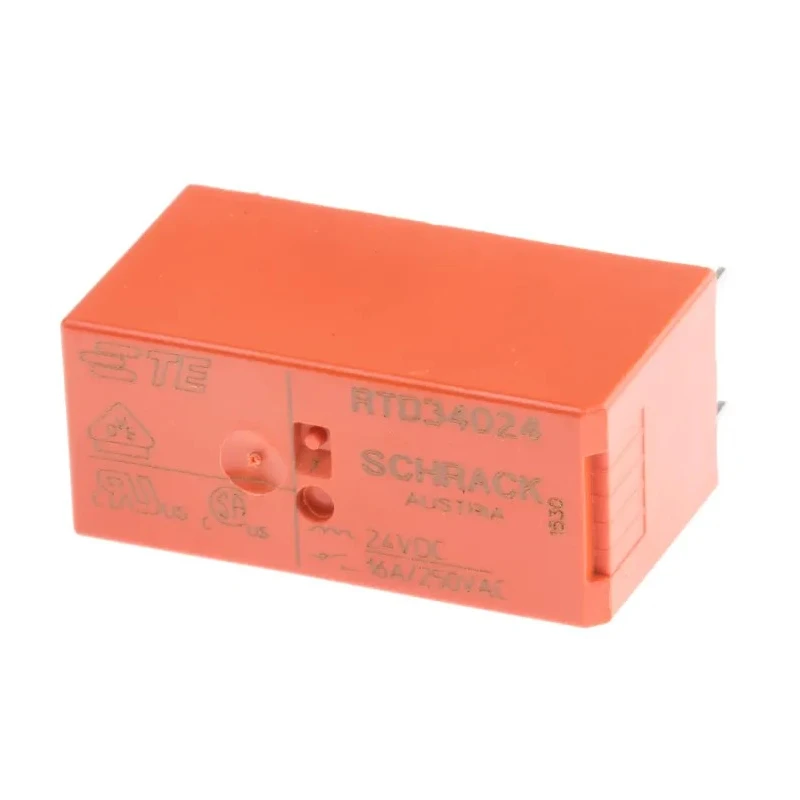

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPST RTD34024

TE Connectivity RTD34024 PCB Power Relay is engineered for high-performance automation and industrial applications requiring reliable power switching on printed circuit boards. The single-pole single-throw (SPST) contact configuration with 16A switching current capacity supports diverse control and signal conditioning tasks.

The relay coil operates on 24V DC voltage, consuming just 250mW power with a coil resistance of 1.4kΩ, facilitating energy-efficient operation. Its compact form factor (29mm length, 12.7mm width, and 15.7mm height) and solder terminal type ensure easy and secure PCB mounting.

Constructed with durable silver nickel alloy contacts, the relay ensures long operational life and consistent electrical performance. It is rated for switching AC voltage up to 400V and can operate reliably in temperatures ranging from -40°C to 85°C, suitable for harsh industrial environments.

Compliant with IEC 60335-1, RoHS directives, and VDE standards, this relay meets stringent quality and environmental regulations. Originating from Austria, the RTD34024 model belongs to TE Connectivity's RT1 series, known for its flux-proof pinning and robust PCB power relay designs.

Ideal use cases include interface circuits, automation equipment, domestic appliances, security lighting, and heating systems, where precise and dependable relay function is critical.

This relay operates with a coil voltage of 24V DC for precise switching. It supports a switching current of up to 16A, suitable for high power circuits. The SPST contact configuration ensures single-pole, single-throw operation.

Designed for PCB mounting with solder-type terminals for secure connections. Constructed with silver nickel alloy contacts for enhanced conductivity and durability. Operates efficiently within a temperature range of -40°C to 85°C.

Compact dimensions with length 29mm, width 12.7mm, and height 15.7mm. Coil resistance of 1.4kΩ and coil power consumption of 250mW, optimizing power usage. Complies with IEC 60335-1, RoHS, and VDE standards ensuring quality and safety.

Manufactured in Austria, maintaining high European quality standards. Explore EnvMart's extensive range of Power Relays for industrial, automation, and electronic control applications for reliable and efficient system integration.
