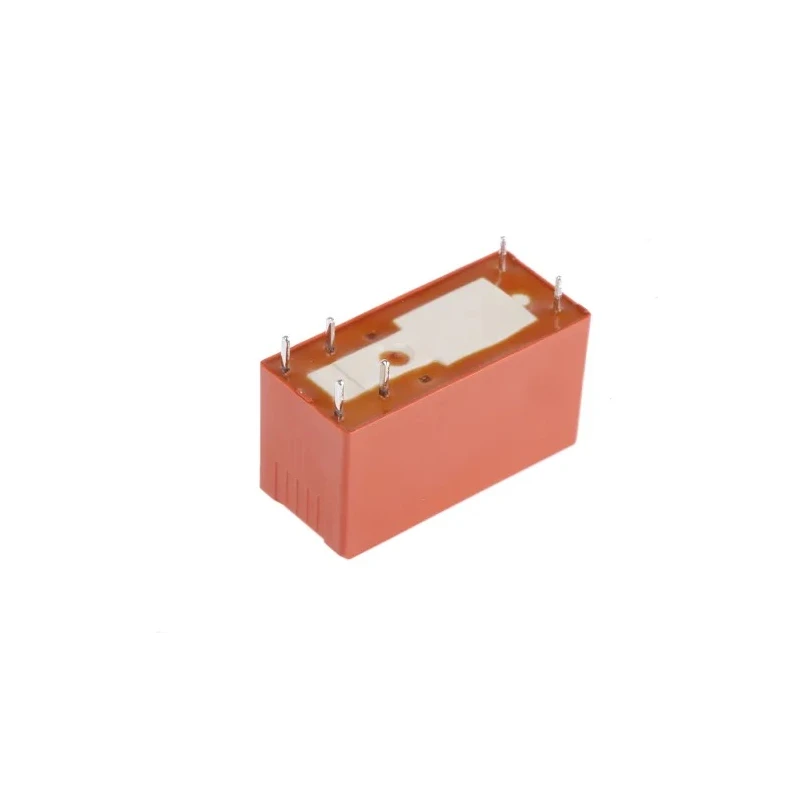

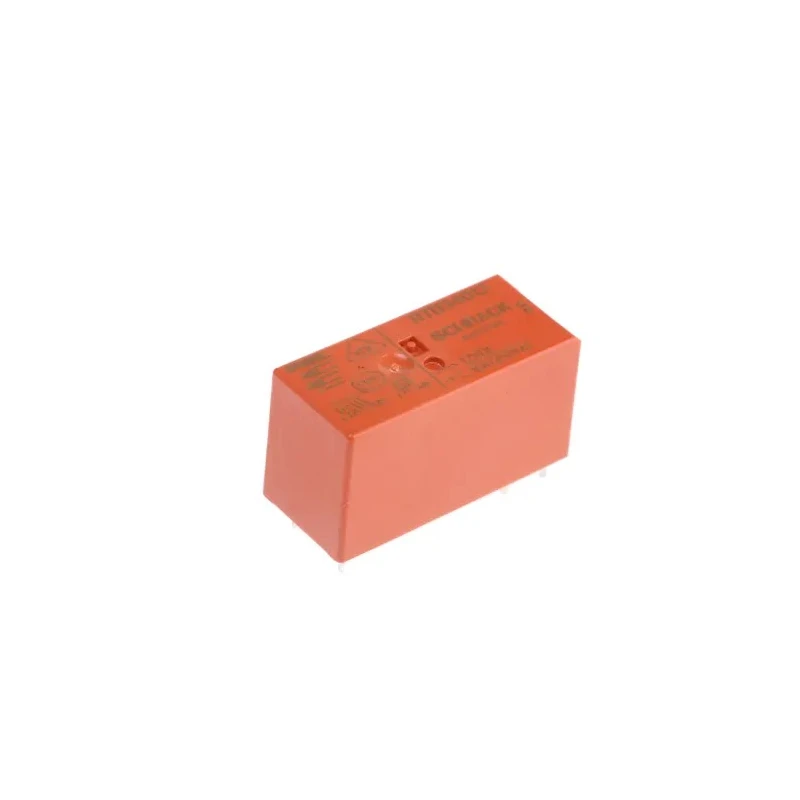

TE Connectivity Power Relay 12V dc Coil 16A Switching Current SPST PCB Mount RTD34012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD34012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | VDE, IEC 60335-1, RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Single Pole Single Throw (SPST) contact configuration for reliable switching.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height.
- Contact material made of silver nickel alloy ensures durability.
- Coil resistance is 360Ω with coil power of 250mW.
- Operates within temperature range from -40°C to 85°C for versatile industrial use.
- Switching AC voltage rating is 400V ac with switching power capability of 4kVA.
- Standard compliance includes VDE, IEC 60335-1, and RoHS certification for quality assurance.
- Mount type is PCB through-hole with solder terminal connections.
Product Description
TE Connectivity RTD34012 Power Relay features a 12V dc coil and supports switching currents up to 16A, designed specifically for PCB mounting applications. This SPST relay ensures reliable switching performance in various industrial and automation contexts.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, with a contact material of silver nickel alloy offering durability and longevity. It operates effectively between -40°C and 85°C, making it suitable for harsh operating conditions.
The coil resistance of 360 ohms and coil power rating of 250mW provide efficient electromagnetic actuation. It is rated for switching AC voltage up to 400V and a switching power of 4kVA, supporting heavy-duty electrical loads.
RTD34012 belongs to the RT1 series known for quality through-hole PCB mounts with solder terminals. The relay complies with international standards including VDE, IEC 60335-1, and RoHS, ensuring safety and environmental compliance.
Typical applications include automation systems, interface controls, security lighting, heating systems, and other industrial equipment requiring reliable power relay switching.
Manufactured in Austria, this relay maintains high craftsmanship and quality. Compatible with various control boards, it enhances production efficiency by allowing integration into machinery with minimal effort.
Single Pole Single Throw (SPST) contact configuration provides straightforward switching. Compact size ideal for space-constrained PCB layouts. Durable silver nickel alloy contacts for extended service life. Low coil power consumption of 250mW improves energy efficiency.
Wide temperature operating range for versatile environments. High switching capacity of 4kVA suitable for heavy electrical loads. Compliant with recognized international standards for quality assurance. Through-hole PCB mount style with solder terminals for secure installation.
Multiple industrial applications including automation and security systems. Made in Austria ensuring adherence to strict manufacturing protocols. Explore the comprehensive range of Power Relays and related components available at EnvMart to meet your industrial electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay supports a switching current of up to 16A.
The coil voltage rating for this model is 12V DC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It is rated for switching AC voltage up to 400V.
The coil resistance is 360Ω.
It operates effectively within a temperature range of -40°C to 85°C.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The contact material is made of silver nickel alloy, ensuring durability.
The coil power rating is 250mW.
It is designed for PCB mounting with solder terminal connections.
It complies with VDE, IEC 60335-1, and RoHS standards for quality assurance.
This relay is manufactured in Austria.
