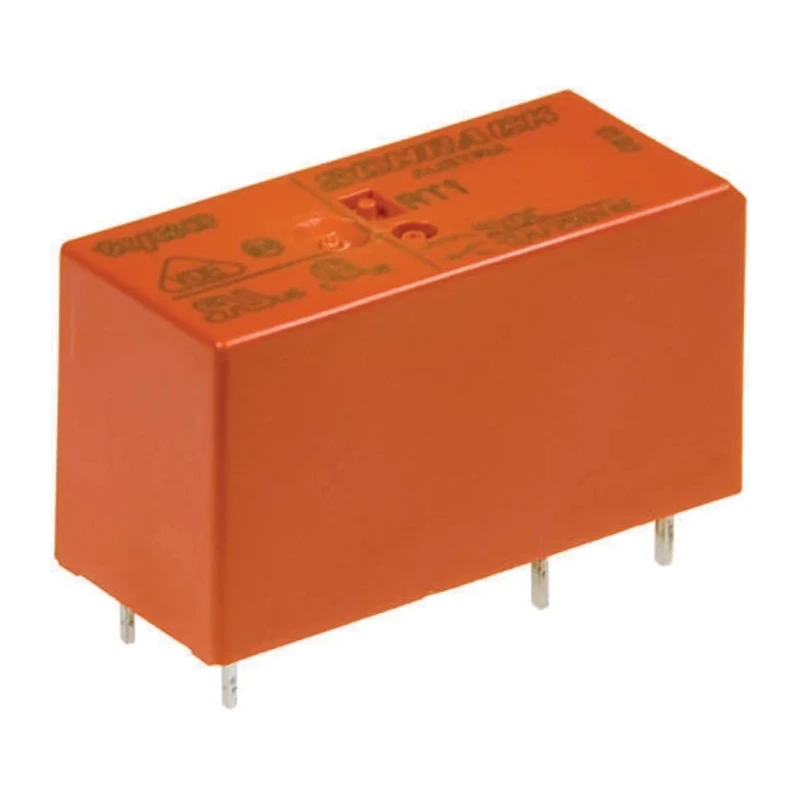

TE Connectivity PCB Power Relay 24V DC Coil 12A Switching Current SPDT RT175024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT175024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Through Hole |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 2.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay features a highly sensitive 250mW coil for efficient operation.
- It supports a switching AC voltage of up to 400V AC.
- The device has a coil resistance of 2.3kΩ ensuring stable coil performance.
- Designed for PCB mounting with through-hole terminal type for easy installation.
- Compact dimensions measuring 29mm length, 15.7mm height, and 12.7mm width.
- Gold-plated contact material ensures enhanced conductivity and corrosion resistance.
- Suitable for industrial temperature range from -40°C to 85°C operating conditions.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental quality.
Product Description
TE Connectivity RT175024 PCB Power Relay is engineered for industrial and commercial applications requiring reliable switching performance with a 24V DC coil voltage and 12A switching current capacity. This SPDT relay is designed for mounting on printed circuit boards through its through-hole terminal type, facilitating straightforward integration into electrical control systems.
The relay features an ultra-high coil sensitivity of 250mW, which reduces power consumption and enhances system efficiency. It operates safely over a wide temperature range from -40°C to 85°C, making it suitable for demanding temperature control and domestic appliance applications. Its compact physical dimensions - 29mm length, 15.7mm height, and 12.7mm width - enable versatile mounting options in space-constrained environments.
Constructed with gold-plated contacts, the relay promises superior contact reliability by minimizing corrosion and electrical resistance. The coil resistance of 2.3kΩ is optimized for stable and consistent coil activation. The relay complies with IEC 60335-1 safety standards, RoHS environmental regulations, and VDE approvals, ensuring it meets international quality and safety benchmarks.
This RT1 Series relay is ideal for temperature control circuits, general-purpose switching, and domestic applications. Its SPDT contact configuration offers single-pole double-throw switching flexibility. Through-hole mounting provided for secure and reliable attachment to PCBs.
Supports switching power of 2.5kVA and switching AC voltage up to 400V AC. Designed to improve production efficiency and reliability in electrical and automation equipment.
Equip your industrial automation, HVAC, and electrical control systems with the TE Connectivity RT175024 Power Relay to ensure precise, reliable switching and long-term durability. Explore EnvMart's extensive catalog of Power Relays to find compatible components and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 12A.
This model operates with a coil voltage of 24V DC.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width.
It supports a maximum switching AC voltage of 400V AC.
This relay is designed for PCB mounting with a through-hole terminal type.
The coil power requirement is 250mW, which contributes to its efficient operation.
The coil resistance is 2.3kΩ, ensuring stable coil performance.
It can operate safely in a temperature range from -40°C to 85°C.
This relay features a single-pole double-throw (SPDT) contact configuration.
The contacts are made of gold-plated material, enhancing conductivity and corrosion resistance.
It complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental quality.
It is suitable for industrial and commercial applications, including temperature control circuits and general-purpose switching.
