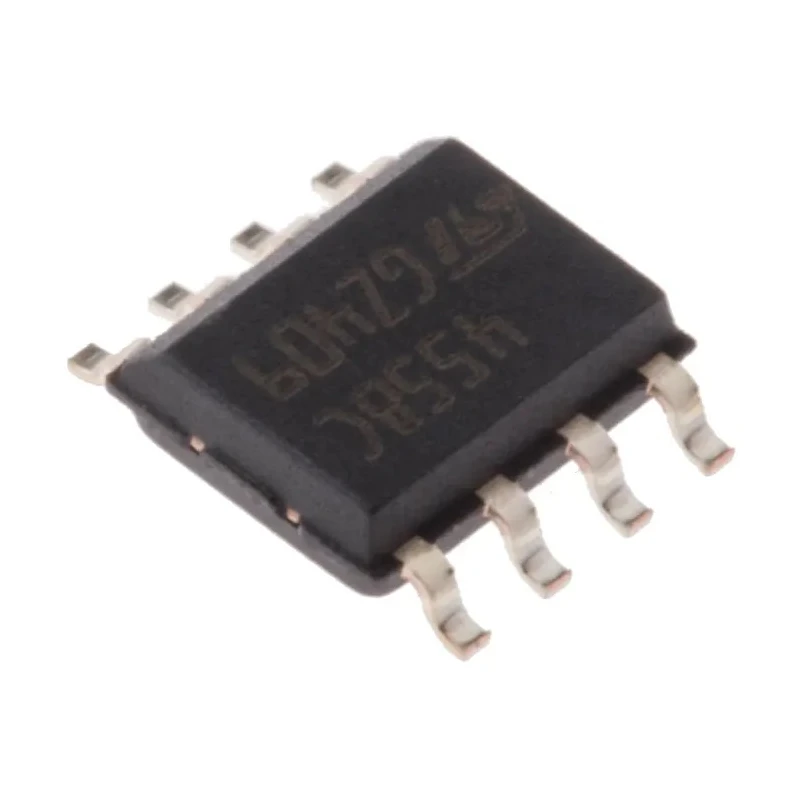

STMicroelectronics Dual Operational Amplifier 5.5 MHz Gain Bandwidth, Surface Mount SOIC 8-Pin MC4558CDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 5mm |
| Model | MC4558CDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | MC4558 |
| Output Current | 40mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 2.2V/μs |
| Input Offset Current | 200 nA |
Key Features
- Features a wide bandwidth gain of 5.5 MHz for high performance amplification.
- Includes two independent operational amplifier channels in one package.
- Operates reliably between 2 V to 20 V supply voltage.
- Designed with internal frequency compensation and short circuit protection.
- Input bias current of 500 nA and input offset voltage of 6 mV, ensuring precision.
- Maximum output current is 40 mA suitable for varied electronic applications.
- Optimized slew rate of 2.2 V/μs for fast response in signal processing.
- Compact dimensions of 5 mm length, 4 mm width, and 1.25 mm height.
Product Description
STMicroelectronics MC4558CDT is a widely used dual operational amplifier designed for high performance and reliability in electronic circuits. Featuring two amplifiers within one compact 8-pin SOIC surface mount package, it provides a gain bandwidth product of 5.5 MHz that supports a broad range of signal amplification applications. The amplifier operates with supply voltages ranging from 2 V up to 20 V. Internal frequency compensation and short circuit protection ensure operational safety and stability during use.
The MC4558CDT offers a moderate input bias current of 500 nA and a low input offset voltage of 6 mV, allowing for accurate and stable signal processing in analog circuit designs. Its output current capacity of 40 mA supports driving loads in various electronic systems. The slew rate of 2.2 V/μs allows the amplifier to respond efficiently to rapid changes in input signals.
This amplifier is suitable for applications in industrial electronics, instrumentation, and audio equipment where dual channel precision amplification is required. The device complies with RoHS standards, facilitating integration into modern environmentally friendly manufacturing processes. Its operating temperature range from 0°C to 70°C enables use in typical commercial and mild industrial environments.
Wide bandwidth dual channel operation maximizes signal clarity. Compact 8-pin SOIC surface mount package for easy PCB integration. Internal protection mechanisms enhance device reliability. Moderate power consumption supports battery-operated devices.
Compatible with a wide supply voltage range for flexible design. Designed to meet RoHS environmental standards. Suitable for use in industrial, audio, and instrumentation circuits.
The STMicroelectronics MC4558CDT is an ideal operational amplifier choice for engineers seeking a reliable, high-performance dual amplifier in a small form factor. Its technical characteristics make it suitable for diverse applications including signal conditioning, analog filtering, and sensor interface circuits. Explore more Operational Amplifiers and electronic components within the EnvMart platform for comprehensive electronic project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 5.5 MHz, making it suitable for high-performance amplification applications.
It operates with supply voltages ranging from 2 V to 20 V, allowing for flexible integration into various electronic designs.
The maximum output current is 40 mA, which supports driving loads in different electronic systems.
The MC4558CDT has compact dimensions of 5 mm in length, 4 mm in width, and 1.25 mm in height, suitable for surface mount applications.
The input bias current is 500 nA, ensuring stable and accurate signal processing in analog circuit designs.
The slew rate is optimized at 2.2 V/μs, allowing for fast response in signal processing applications.
The input offset voltage is 6 mV, which contributes to its precision in signal amplification.
It operates reliably within a temperature range of 0°C to 70°C, suitable for commercial and mild industrial environments.
This operational amplifier is packaged in an 8-pin SOIC surface mount configuration, facilitating easy PCB integration.
Yes, it complies with RoHS standards, which supports environmentally friendly manufacturing processes.
The MC4558CDT features two independent operational amplifier channels within one package.
It is suitable for applications in industrial electronics, instrumentation, and audio equipment where dual channel precision amplification is required.
