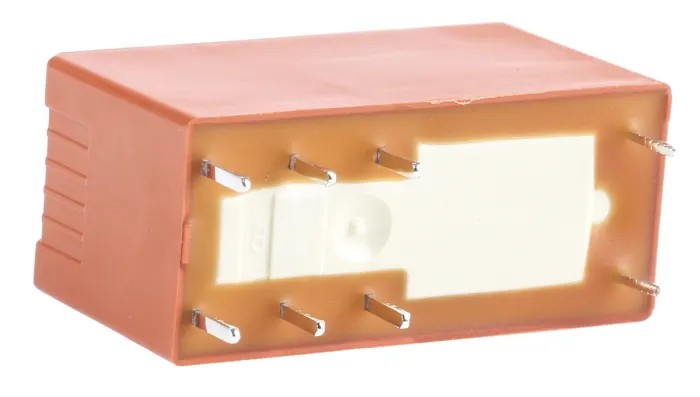

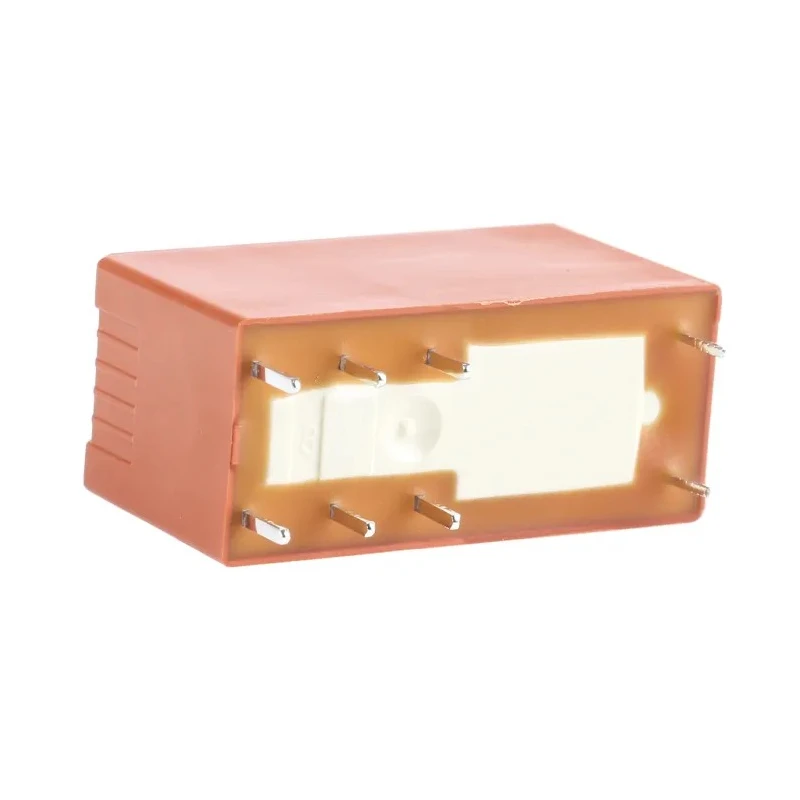

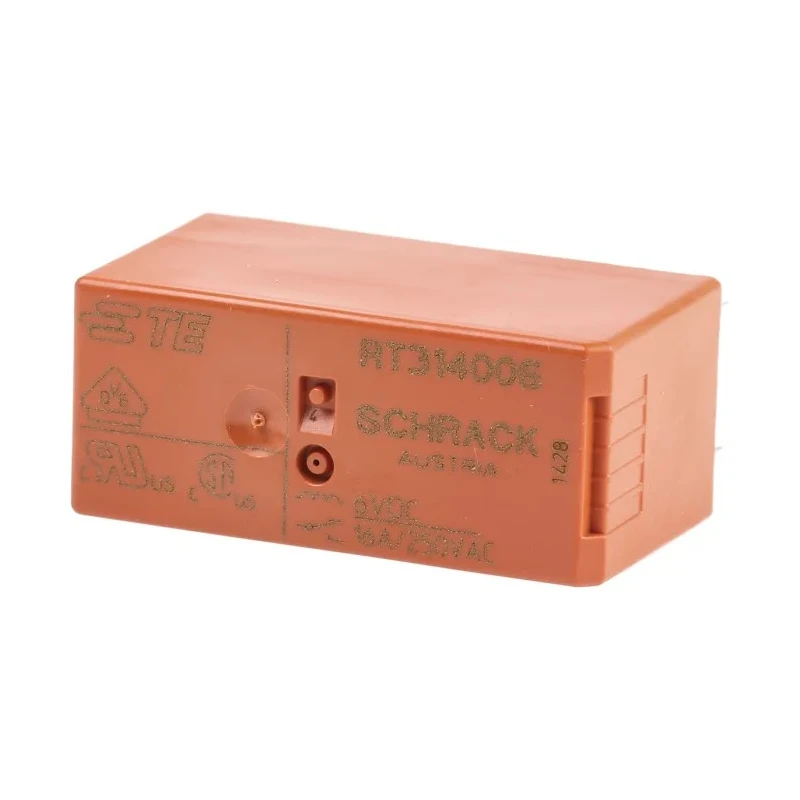

TE Connectivity PCB Power Relay 6V dc Coil 16A Switching Current SPDT RT314006
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314006 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 90Ω |
| Coil Voltage | 6V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Coil voltage is precisely 6V dc for compatible power circuits.
- Single Pole Double Throw (SPDT) contact configuration supports versatile switching applications.
- Through Hole mount type designed for PCB integration and stable mechanical support.
- Operates efficiently at switching AC voltage up to 400V ac and switching power of 4kVA.
- Coil resistance value is 90Ω with coil power of 250mW ensuring low power consumption.
- Designed for thermal range from -40°C minimum to 85°C maximum operating temperature.
- Compact dimensions measuring 29mm length, 12.7mm width, and 15.7mm height for space-constrained setups.
- Constructed with silver nickel alloy contact material delivering durability and conductivity.
Product Description
TE Connectivity RT314006 is a high-quality PCB Power Relay featuring a 6V DC coil and a 16A switching current with SPDT contact configuration, meeting stringent industrial standards and designed for reliable electronic switching on printed circuit boards.
This relay is part of the RT1 series, offering through hole mounting suitable for secure and durable PCB integration. It supports switching AC voltages up to 400V AC and a switching power capacity of 4kVA, making it ideal for automation, interface, security lighting, heating systems, and industrial control applications.
The coil resistance of 90Ω and coil power consumption of 250mW ensure energy-efficient operation. Its operational temperature range from -40°C to 85°C allows usage in diverse environments, including harsh conditions. The relay's compact dimensions (29mm length, 12.7mm width, and 15.7mm height) facilitate easy incorporation into constrained designs.
Contact material is a premium silver nickel alloy, providing excellent conductivity and long service life. The RT314006 series relays are designed to meet IEC 60335-1, RoHS, and VDE standards, ensuring compliance with safety and environmental regulations.
Applications for this relay span various sectors such as industrial automation, manufacturing, HVAC controls, security and lighting systems, and any PCB-based control circuits requiring robust relay performance.
Coil voltage 6V DC. 16A switching current with SPDT configuration. Through hole PCB mount type. Switching AC voltage up to 400V AC and 4kVA power. Operating temperature range -40°C to 85°C. Silver Nickel Alloy contacts for durability.
Compact size: 29mm x 12.7mm x 15.7mm. RT1 Series with flux proof 3.5mm pinning. Standards compliance: IEC 60335-1, RoHS, VDE.
Choose TE Connectivity RT314006 PCB Power Relay for dependable, industry-standard relay solutions. Explore the full range of Power Relays at EnvMart for automation and electronic control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 6V DC, making it suitable for compatible power circuits.
This model can handle a maximum switching current of 16A.
The contact configuration is Single Pole Double Throw (SPDT), allowing for versatile switching applications.
It can switch AC voltages up to 400V AC, making it suitable for various applications.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance is 90Ω, which contributes to its energy-efficient operation.
The coil power consumption is 250mW, ensuring low power usage during operation.
The operational temperature range is from -40°C to 85°C, allowing for use in diverse environments.
The contacts are made of silver nickel alloy, providing good conductivity and durability.
This relay utilizes a through hole mounting type, designed for secure PCB integration.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and environmental compliance.
It is suitable for applications in industrial automation, HVAC controls, security systems, and PCB-based control circuits.
