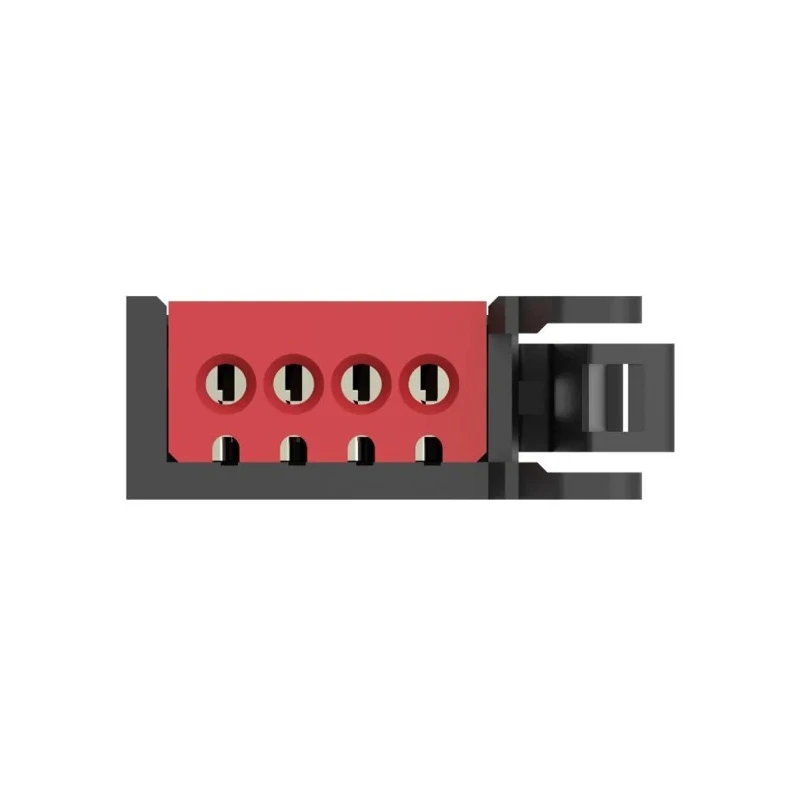

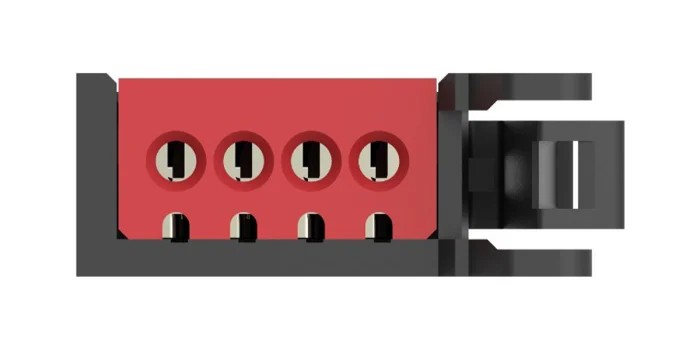

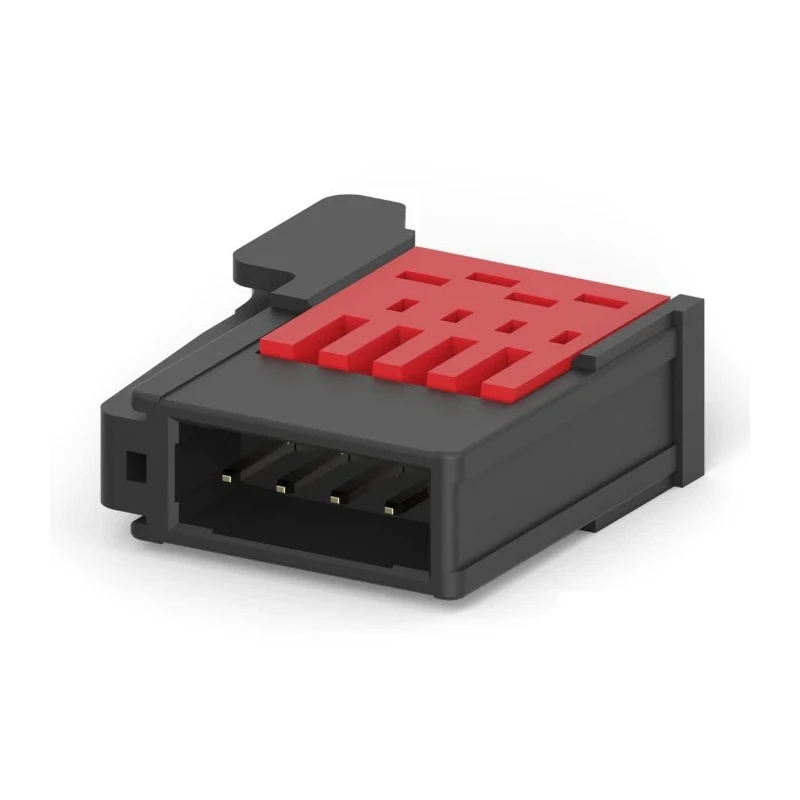

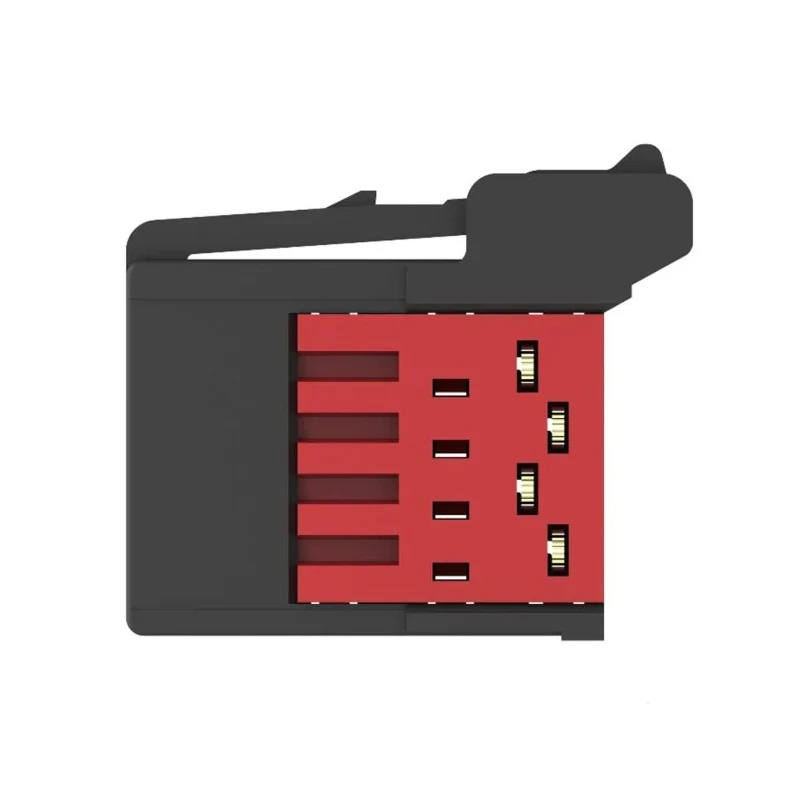

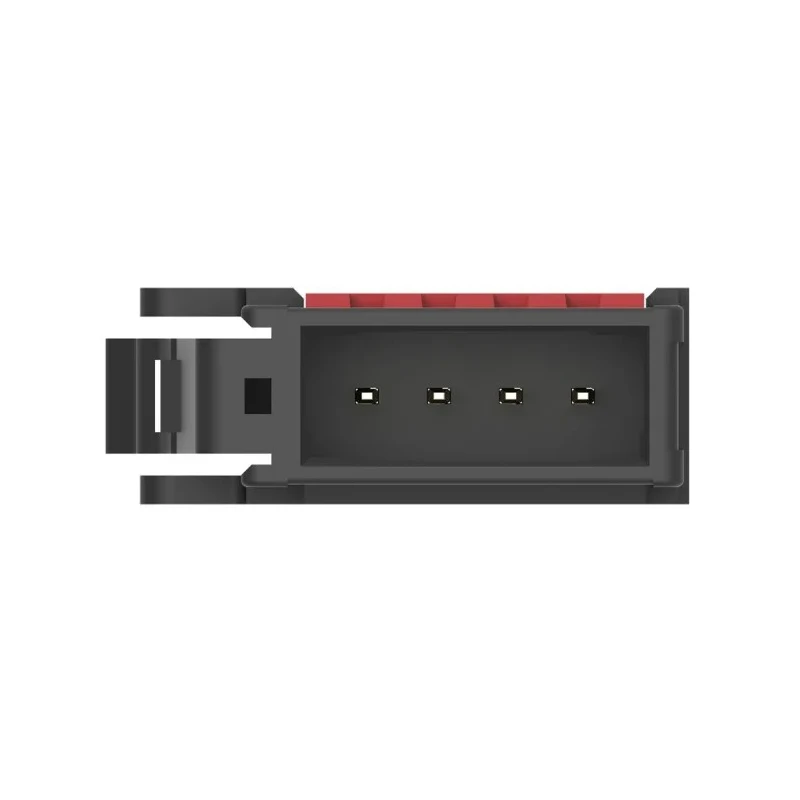

TE Connectivity 4-Way RITS Connector Male for PCB 32V DC 3A Gold Plated Contacts Thermoplastic Housing 1-1473562-4

TE Connectivity 1-1473562-4 4-Way RITS Connector Male for PCB is a high-density, shrouded connector designed for sensor interfacing in industrial environments. Featuring a 2.0 mm pitch and rated for 3A current at 32V DC, this connector delivers reliable and secure connections with its integrated locking lever and audible mating click.

The connector employs gold-plated chisel press contacts which pierce wires to provide a large contact area without prior wire preparation. The two-point contact design ensures high reliability under shock and vibration, while the cable retention mechanism improves wire holding strength compared to conventional IDC connectors.

Constructed with a semi-transparent thermoplastic housing that is colour-coded for wire size identification, this connector allows easy visual inspection of connections. It is designed as a single-row, 4-contact interface connector for PCB mounting with straight orientation.

This connector is widely used in factory automation applications, including industrial control systems, IPC/PLC, human machine interfaces (HMI), robotics, semiconductor manufacturing equipment, material handling systems, conveyor systems, elevators, and escalators.

High-density 2.0 mm pitch standard interface connector for sensors. Integrated locking lever for secure connections and audible mating assurance. Gold plated chisel press contacts increase electrical reliability and ease of termination.

Two-point contact design enhances reliability under shock and vibration. Colour-coded, semi-transparent thermoplastic housings support wire size identification and visual inspection. Supports operating temperature range from -30°C to 75°C.

Crimp termination type suitable for factory automation environments. Straight orientation and PCB mount type provide flexible usage in automation systems.

TE Connectivity RITS connectors set the industry standard for quick, reliable wire-to-wire and wire-to-board connections in sensor applications. Compatible with a variety of industrial automation equipment, these connectors significantly reduce installation time and provide robust performance in demanding environments.
