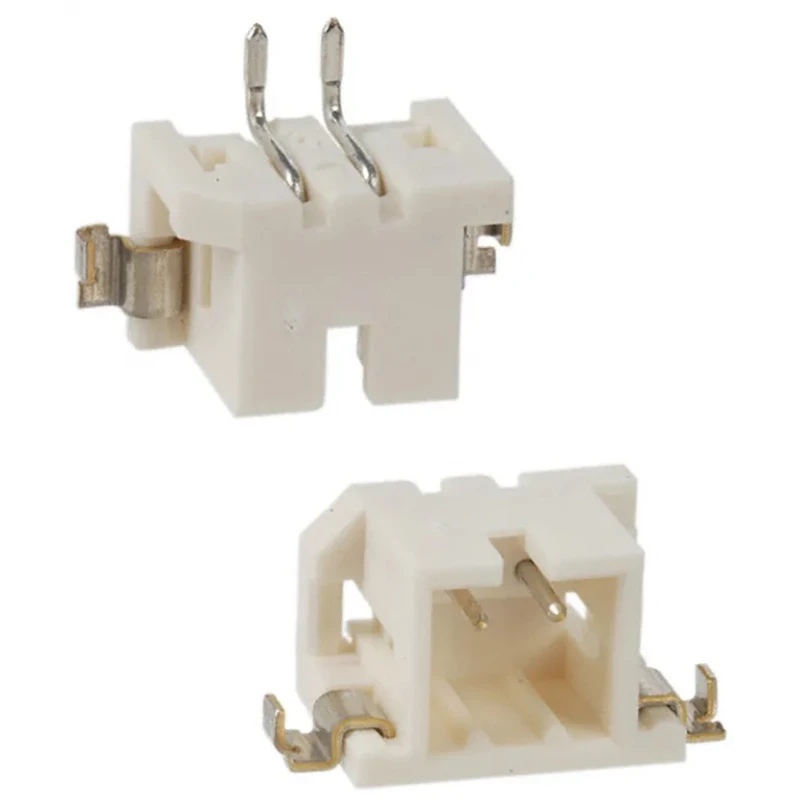

Hirose DF3 Series Right Angle Surface PCB Header, 2 Contact, 2 mm Pitch, 1 Row, Shrouded DF3EA-2P-2H(21)

Hirose DF3EA-2P-2H(21) is a Right Angle Surface PCB Header from the DF3 Series, featuring 2 contacts with a 2 mm pitch in a single row and a shrouded housing. Designed for high reliability, this connector supports a current rating of 3A and operates up to 250V, making it suitable for a variety of industrial and commercial electronic applications.

The polyamide housing incorporates a low profile design and a friction locking mechanism that ensures secure and durable connections with mating DF3 sockets. PCB mounting bosses facilitate accurate placement during the surface mount soldering process, while reinforced metal fittings at both sides provide firm attachment to the PCB, preventing solder joint damage and peeling.

Constructed with brass contacts plated with tin, the connector guarantees reliable electrical contact and long service life. It supports board-to-board and wire-to-board connector systems and is terminated by solder to the PCB. The connector is male gender and suited for use in environments ranging from -55°C to 105°C.

Applications for the Hirose DF3EA-2P-2H(21) include business equipment such as copy machines and printers where reliable and compact PCB connections are essential. Low profile design reduces PCB space usage. Friction locking mechanism for secure connections.

PCB mounting bosses for precise soldering position. Reinforced metal fittings prevent solder joint peeling. Rated current 3A and voltage 250V. Polyamide housing with brass and tin plated contacts. Operating temperature range -55°C to 105°C.

Board-to-board and wire-to-board compatible. Male contact gender with solder termination. Ideal for business equipment including printers and copy machines. Explore more high-quality PCB connectors and electronics components in our Electronics & Electricals category on EnvMart.
