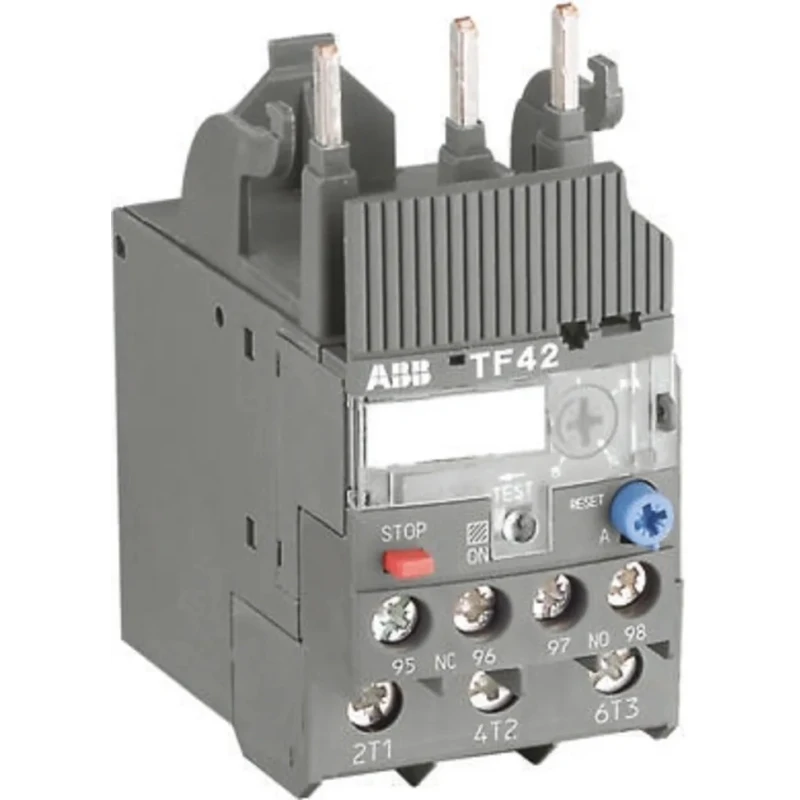

ABB TF42 Thermal Overload Relay 1 NO 1 NC 0.31-0.41 A FLC 410mA Contact Rating 2W TF42



Category Overload Relay Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Length	88.3mm
Model	TF42
Depth	70.5mm
IP Rating	IP20
Width	45mm
Mount Type	Direct
Series	TF42
Power Rating	2W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Contact Voltage	690V ac/dc
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	410mA
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	0.31, 0.41A
Adjustable Current Range	0.31 → 0.41 A
ABB Thermal Overload RelayBrand	ABB

Key Features

Designed for motor protection with 0.31 to 0.41 A full load current range.
Features 1 Normally Open and 1 Normally Closed auxiliary contact configuration.
Has a power rating of 2 watts ensuring efficient operation.
Equipped with screw terminal type connections for secure wiring.
Automatic and manual reset methods provide flexible operation options.
IP20 protection rating suitable for indoor electrical environments.
Operating temperature range from -25°C to 60°C for versatile use.
Compact dimensions with 45mm width, 88.3mm length, and 70.5mm depth.

Product Description

ABB TF42 Thermal Overload Relay model TF42 offers reliable overload protection designed for motors with adjustable current range from 0.31 to 0.41 amperes and a full load current (FLC) of 0.41 A. It features a relay contact current rating of 410mA and a power consumption of 2 watts, making it ideal for industrial, automation, and control gear applications requiring precise motor protection.

This thermal overload relay supports both automatic and manual reset methods and features a 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration, providing versatile auxiliary contacts for control functions. It utilizes screw terminal type connection for secure and easy installation. The unit is designed for direct mounting within electrical control panels.

Constructed to operate within a temperature range of -25°C to 60°C, the relay is rated with an IP20 protection level suitable for indoor use in clean dry environments. Dimensions of the relay measure 45 mm in width, 88.3 mm in length, and 70.5 mm in depth, facilitating compact installations.

The TF42 series complies with multiple international standards and approvals including IEC/EN 60947-4-1, IEC/EN 60947-5-1, Lloyd’s Register, Low Voltage Directive 2006/95/EC, CCC, CB scheme, ABS, CSA 22.2 No.14, CE, UL 508, GOST-R, RINA, RoHS Directive, EMC Directive, DNV, and cULus. This ensures high safety, reliability, and compatibility in industrial electrical circuits.

This relay is suited for use in industrial automation, motor control centers, HVAC systems, manufacturing plants, and other commercial and industrial environments requiring dependable motor overload protection. It offers phase loss sensitivity and features an adjustable overload class 10 setting and a STOP and Test function for operational safety checks.

Choose ABB’s TF42 Thermal Overload Relay for advanced motor protection with flexible operation modes and compliance to stringent international safety standards. Explore more products in the Electronics & Electricals category with our extensive selection of Relays & Contactors at EnvMart.

Designed for motor protection with adjustable current range 0.31 to 0.41 A. Features 1 NO and 1 NC auxiliary contact arrangement. 2 W power rating for efficient relay operation. Screw terminal connections for secure wiring installation.

Automatic and manual reset methods selectable. IP20 rating suitable for indoor usage. Operating temperature range from -25°C to 60°C. Compact size: 45mm W x 88.3mm L x 70.5mm D. Meets IEC/EN 60947 and UL 508 standards among others.

Direct mount type for straightforward panel integration.
