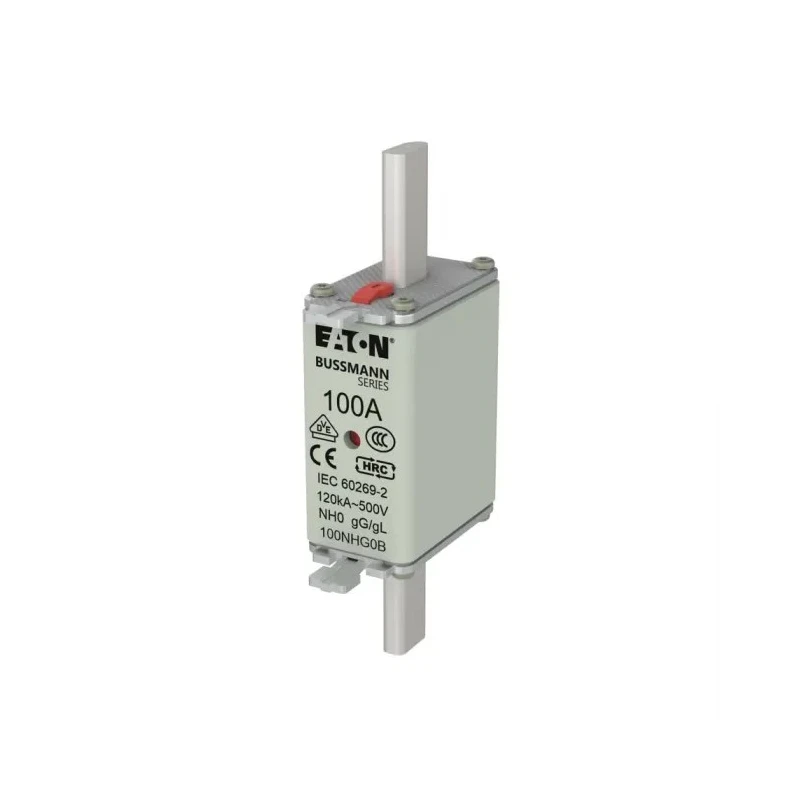

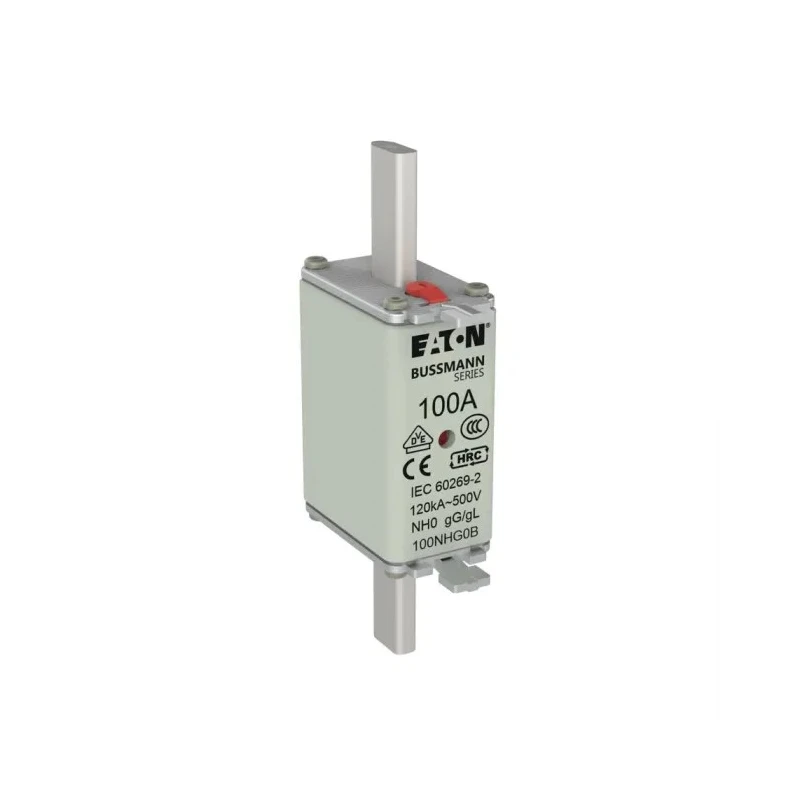

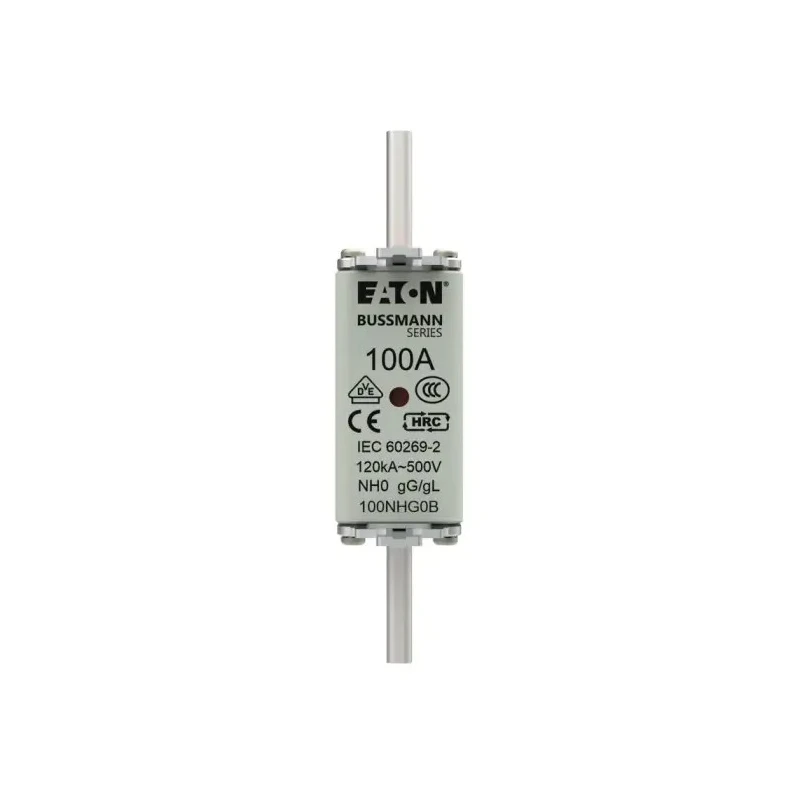

Eaton 100A NH Fuse 125 mm x 58 mm x 30 mm 500V AC High Rupture Capacity 100NHG0B

The Eaton 100NHG0B NH Fuse is a cartridge fuse designed for comprehensive protection in industrial and commercial electrical panels. Rated for a 100 amp continuous current and operating at 500V AC, this fuse is ideal for protecting circuits in motor distribution, control systems, transformer secondary distributions, and switchgear retrofits.

This NH fuse offers high rupture capacity, allowing it to safely interrupt high prospective fault currents without damage to surrounding equipment. Its gG/gL melting characteristic provides full-range protection, helping to prevent overloads and short circuits effectively. The fuse length is 125 mm, with a height of 58 mm and a width of 30 mm, fitting securely into NH fuse holders compatible with these dimensions.

Manufactured under Eaton Bussmann series, this fuse complies with international standards DIN 43620, VDE 0636, and IEC 60269, ensuring reliable interchangeability and quality assurance. The 6 mm tag width improves terminal identification and facilitates secure installation.

Applications include safeguarding motor distribution circuits in factories, protecting automation system control panels, transformer protection in secondary distribution, and use in switchgear maintenance and retrofit projects. This fuse is suitable for general-purpose circuit protection where full-range fault clearing is necessary.

Its high rupture capacity makes it a trusted choice for industrial and manufacturing electrical systems that demand dependable, standardized overcurrent protection solutions. Rated for 100 amperes continuous current for reliable circuit protection.

Designed to operate at 500 volts AC in low voltage distribution panels. High rupture capacity enables safe interruption of high short circuit currents. The NH type cartridge fuse measures 125 mm length, 58 mm height, and 30 mm width.

Meets DIN 43620, VDE 0636, and IEC 60269 standards for interoperability and safety. gG/gL characteristic ensures full range protection for cables and equipment. Compatible with standard NH fuse holders sized for 125 mm cartridges.

Tag width of 6 mm facilitates clear terminal identification and wiring. Ideal for motor distribution circuits, control panels, transformers, and switchgear maintenance. Explore our comprehensive electrical protection solutions at EnvMart, including Eaton NH Fuses and related industrial-grade circuit protection products.
