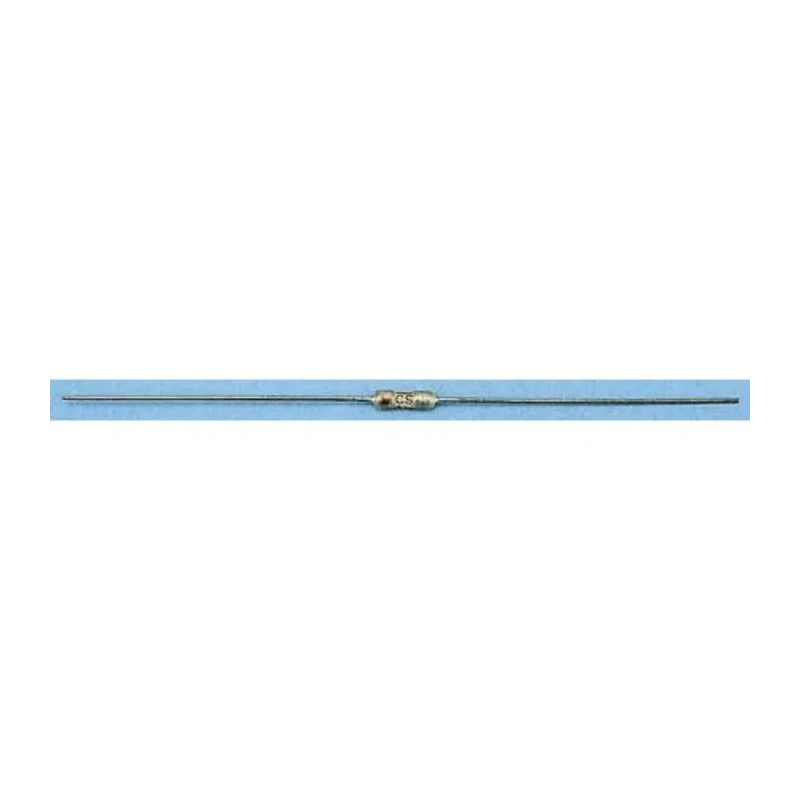

Schurter Non-Resettable Axial Fuse 500mA 125 V AC/DC Ceramic Body 172322 Series 7010.7050.13
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 125, 125V ac |
| Diameter | 2.36mm |
| Brand | Schurter |
| Body Material | Ceramic |
| Height | 8mm |
| Length | 8mm |
| Current Rating | 500mA |
| Series | 172322 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 86mm |
| Breaking Capacity | 50A |
| Standards/Approvals | RoHS |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Axial |
| Schurter PC Board Non Resettable Fuse, Axial 500mA, 125 V ac, 250V dcBrand | Schurter |
Key Features
- This axial fuse features a fast acting fuse characteristic for rapid circuit protection.
- It carries a current rating of 500mA suitable for low current applications.
- The fuse supports a voltage of 125 V AC and DC, ensuring versatile use.
- Ceramic body construction provides durability and high breaking capacity.
- Lead orientation is axial with 86mm lead length for easy soldering on printed circuit boards.
- Operating temperature range from -55°C to 85°C ensures reliable performance in varying conditions.
- Breaking capacity is rated at 50A, suitable for demanding circuit conditions.
- The fuse complies with RoHS and IEC 172322 series standards for quality and safety.
Product Description
Schurter 7010.7050.13 is a non-resettable axial fuse designed for reliable circuit protection in electrical, automation, and electronic applications. It features a fast acting fuse element with a current rating of 500mA and supports voltages up to 125 V AC and DC. The fuse uses a ceramic body construction that provides robustness and high breaking capacity, making it suitable for protection of sensitive circuits on printed circuit boards.
This fuse has compact dimensions of 2.36mm diameter and 8mm length, with axial leads measuring 86mm for straightforward solder mounting. Its operating temperature range from -55°C to 85°C allows it to function reliably in harsh industrial and commercial environments.
The 172322 series fuse complies with international IEC standards and carries RoHS compliance, ensuring environmentally safe manufacturing processes. With a breaking capacity of 50A, it effectively interrupts high fault currents to protect devices and circuits.
Typical applications include industrial control panels, automation equipment, electronic devices, and any system requiring fast-acting and non-resettable fuses for safety. Its ceramic tube with a clear insulating sleeve provides additional electrical isolation and mechanical protection.
This axial fuse has a fast acting fuse element for quick circuit interruption. 500mA current rating supports low current electronic protection. 125 V AC/DC voltage rating for versatile usage scenarios. Ceramic body ensures durability and high breaking capacity.
Small dimensions facilitate PCB mounting and compact system design. Axial leads of 86mm length simplify soldering and installation. Wide operating temperature range from -55°C to 85°C. Breaking capacity of 50A handles high fault currents safely.
Complies with RoHS and IEC 172322 standards for safety and quality. Manufactured in France under stringent quality control. Explore additional Schurter fuses and circuit protection devices at EnvMart for comprehensive electrical component solutions.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse has a current rating of 500mA, making it suitable for low current applications.
It supports a voltage of 125 V AC and DC, providing versatility for various applications.
The breaking capacity is rated at 50A, allowing it to effectively interrupt high fault currents.
The fuse features a ceramic body, which provides durability and high breaking capacity.
It has a diameter of 2.36mm and a length of 8mm, making it compact for PCB mounting.
The axial leads measure 86mm in length, facilitating easy soldering on printed circuit boards.
The operating temperature range is from -55°C to 85°C, ensuring reliable performance in various conditions.
It complies with RoHS and IEC 172322 standards, ensuring quality and safety in manufacturing.
This fuse features a fast acting characteristic for rapid circuit protection.
Typical applications include industrial control panels, automation equipment, and electronic devices requiring fast-acting protection.
This model is manufactured in France under stringent quality control processes.
It is part of the 172322 series, which includes various non-resettable fuses designed for circuit protection.
