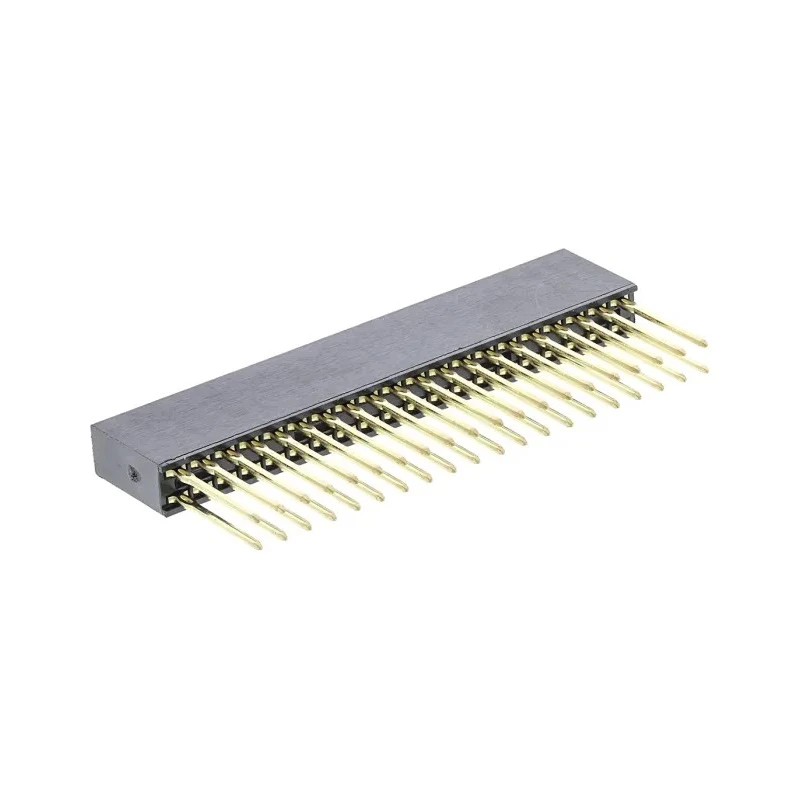

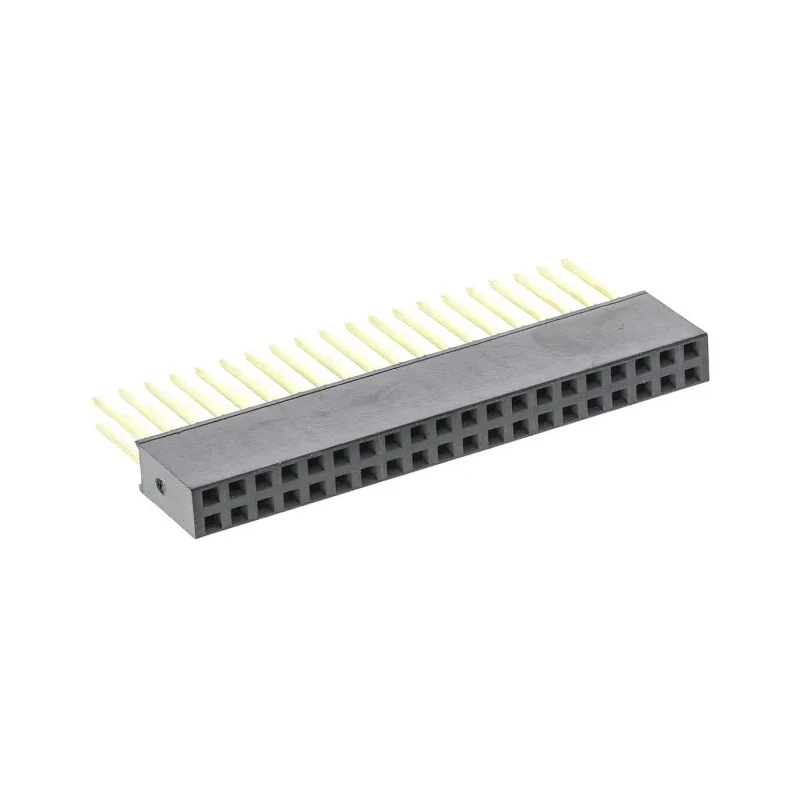

HARWIN M20 Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch M20-6152005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 12V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-6152005 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed for PC/104 Stackthrough connector applications.
- Constructed with nylon housing and bronze female contacts plated with gold for reliable connectivity.
- Supports a 12A current rating and 12V voltage.
- Features through-hole mount type and straight orientation.
- Operates reliably between -55°C and 105°C.
- Connector system is board-to-board ensuring secure mechanical and electrical connection.
- Supplied in a tube packaging for efficient insertion into machinery.
- Ideal for electronics manufacturing and industrial PCB applications.
Product Description
HARWIN M20-6152005 Straight Through Hole PCB Socket is a high-performance connector designed for electronics industry applications, supporting 40 contacts in 2 rows with a 2.54 mm pitch.
The connector features a durable nylon housing that offers excellent insulation and mechanical strength. Female bronze contacts plated with gold ensure corrosion resistance and reliable electrical conductivity suitable for harsh industrial environments.
With a rated current of 12A and voltage of 12V, this socket is engineered for demanding board-to-board connection applications, including PC/104 Stackthrough connectors widely used in embedded systems and industrial automation.
The through-hole mounting and straight orientation provide mechanical stability and alignment for printed circuit boards during assembly. It operates effectively within a temperature range from -55°C to 105°C, accommodating various industrial grade temperature requirements.
Its design focuses on manufacturing efficiency, with items packaged ready for insertion into machinery, improving production throughput in electronics manufacturing. 40-contact configuration with 2 rows and 2.54 mm pitch.
Nylon housing material for insulation and durability. Bronze contacts plated with gold for conductivity and corrosion resistance. Rated 12A current and 12V voltage performance. Through-hole mount and straight orientation for reliable PCB fitting.
Operating temperature range from -55°C to 105°C. Connector system designed for board-to-board connectivity. Ideal for industrial and manufacturing electronics applications. This socket is a dependable component for electronic connectors category, ensuring seamless integration within PCB assemblies and industrial electronic systems.
Explore more industrial electronics and connectors at EnvMart to find comprehensive solutions for your manufacturing and assembly needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M20-6152005 PCB socket has a current rating of 12A and a voltage rating of 12V.
This model operates effectively within a temperature range from -55°C to 105°C.
The socket features 40 contacts arranged in 2 rows with a pitch of 2.54 mm.
The housing is made of nylon, while the contacts are bronze plated with gold for conductivity and corrosion resistance.
It utilizes a through-hole mount type, ensuring stable mechanical and electrical connections on printed circuit boards.
This socket has a straight orientation, which aids in alignment during assembly.
Yes, the connector system is designed for board-to-board connectivity, making it suitable for various applications in electronics.
It is supplied in tube packaging, which facilitates efficient insertion into machinery during assembly.
The socket belongs to the M20 series, which is designed for high-performance connector applications.
The contact gender of this socket is female, suitable for connecting to male contacts in PCB assemblies.
The country of origin for this model is India.
It is ideal for electronics manufacturing and industrial PCB applications, particularly in embedded systems and industrial automation.
