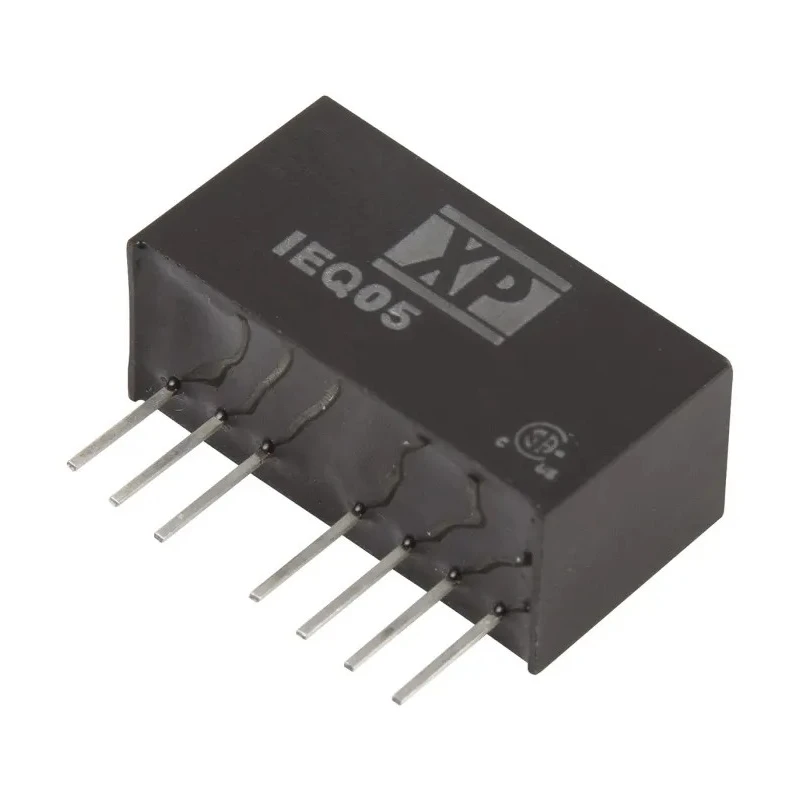

XP Power Regulated Isolated DC/DC Converter 12V DC 417mA Input 4.5-18V 5W Through Hole SIP8 Package IEQ0512S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IEQ DC/DC Converter, 12V dc/ 417 mA, 18V |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | IEQ0512S12 |
| Depth | 11.2mm |
| Width | 9.3mm |
| Mount Type | Through Hole |
| Series | IEQ |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 417mA |
| Output Voltage Adjustment Range | 4.5/18 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Provides highly reliable 5 watt regulated isolated output power for sensitive electronics.
- Wide input voltage range from 4.5 to 18 volts DC suitable for varied power sources.
- Compact through hole SIP8 package ideal for board mounting in industrial applications.
- High isolation voltage of 1500 VDC to protect circuits from voltage spikes and noise.
- Operating temperature range from -40°C to +90°C ensures performance in harsh environments.
- Efficiency of up to 83% to optimize power usage and reduce heat generation.
- Single output design with 8 pins for simplified connectivity.
- Complies with RoHS standards for environmental safety.
Product Description
XP Power IEQ0512S12 DC/DC Converter is a highly reliable, compact, isolated voltage regulator designed for industrial, electronic, and power supply applications. It delivers a regulated 12V DC output at a maximum current of 417mA, powered by a wide input voltage range of 4.5V to 18V DC. Its compact SIP8 through hole package measures 21.8mm in length, 9.3mm in width, and 11.2mm in depth, making it suitable for space-constrained PCB mounting.
This DC/DC converter features an impressive 1500 VDC isolation voltage, ensuring protection against transient voltages and enabling safety in sensitive electronic systems. It achieves an efficiency rating of 83%, minimizing power loss and heat dissipation during operation.
Designed to operate reliably in harsh environments, this model supports a temperature range from -40°C up to 90°C. It also incorporates remote on/off control to facilitate power management in complex systems.
Typical applications include industrial controls, instrumentation, communications equipment, and other settings requiring stable isolated power conversion. The IEQ05 series from XP Power has been engineered for durability and consistent performance in demanding electrical and environmental conditions.
Provides highly reliable 5 watt regulated isolated output power for sensitive electronics. Wide input voltage range from 4.5 to 18 volts DC suitable for varied power sources. Compact through hole SIP8 package ideal for board mounting in industrial applications.
High isolation voltage of 1500 VDC to protect circuits from voltage spikes and noise. Operating temperature range from -40°C to +90°C ensures performance in harsh environments. Efficiency of up to 83% to optimize power usage and reduce heat generation.
Single output design with 8 pins for simplified connectivity. Complies with RoHS standards for environmental safety.
This DC/DC Converter exemplifies XP Power's commitment to quality and performance within power management solutions, ideal for a wide array of industrial, laboratory, and commercial electronic applications. Browse our Electronics & Electricals catalog to find more power conversion products designed to meet your system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 5 watts.
It accepts an input voltage range from 4.5V to 18V DC.
This DC/DC converter has an efficiency rating of up to 83%.
It features an isolation voltage of 1500 VDC.
The SIP8 package measures 21.8mm in length, 9.3mm in width, and 11.2mm in depth.
The operating temperature range is from -40°C to +90°C.
This model has a single output design.
It is designed for through hole mounting.
Typical applications include industrial controls, instrumentation, and communications equipment.
Yes, it complies with RoHS standards for environmental safety.
The output voltage is 12V DC.
The SIP8 package has 8 pins for connectivity.
