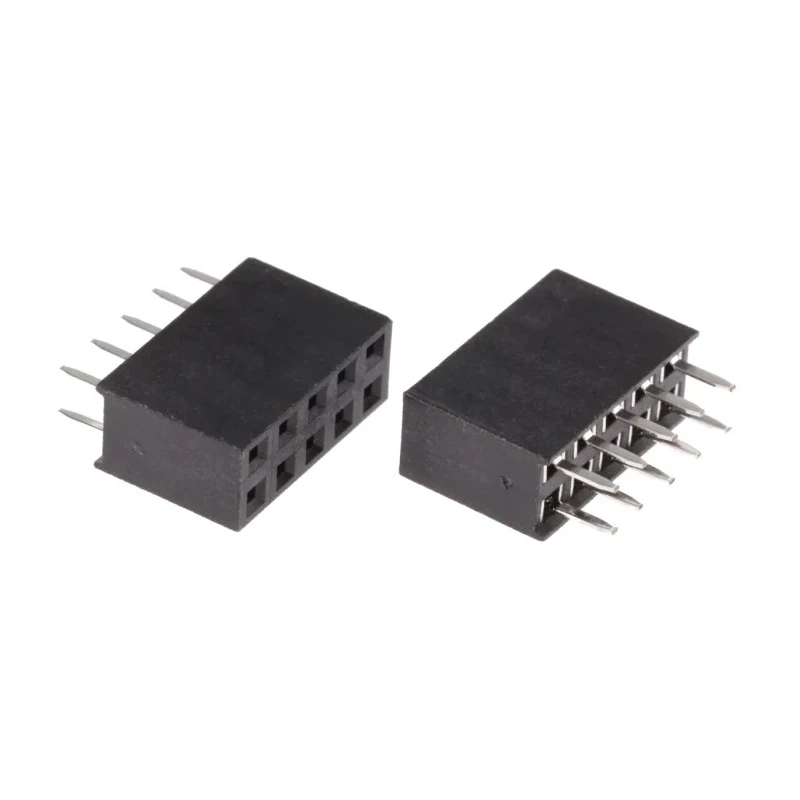

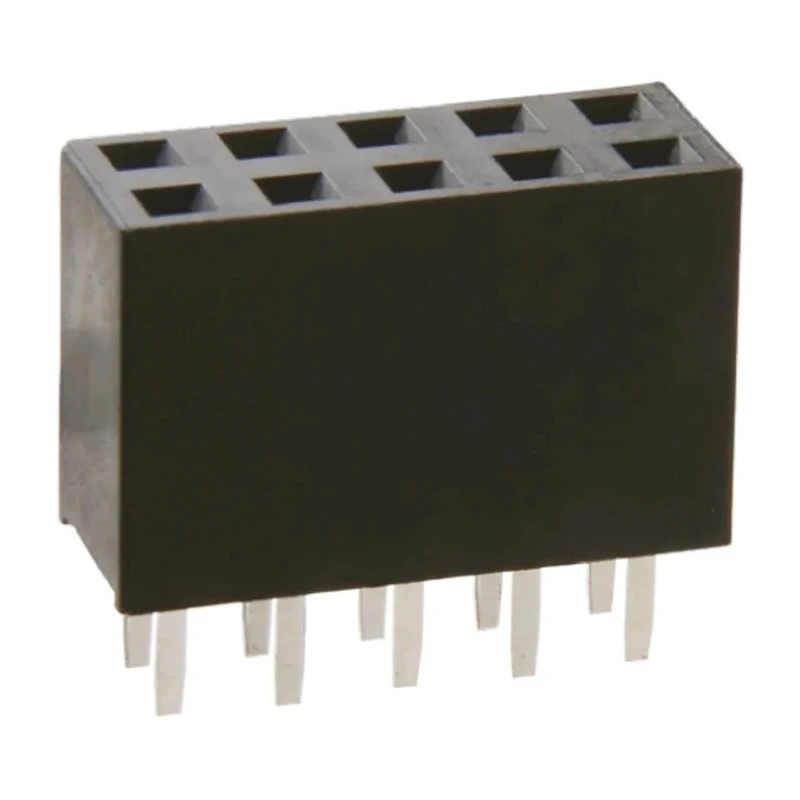

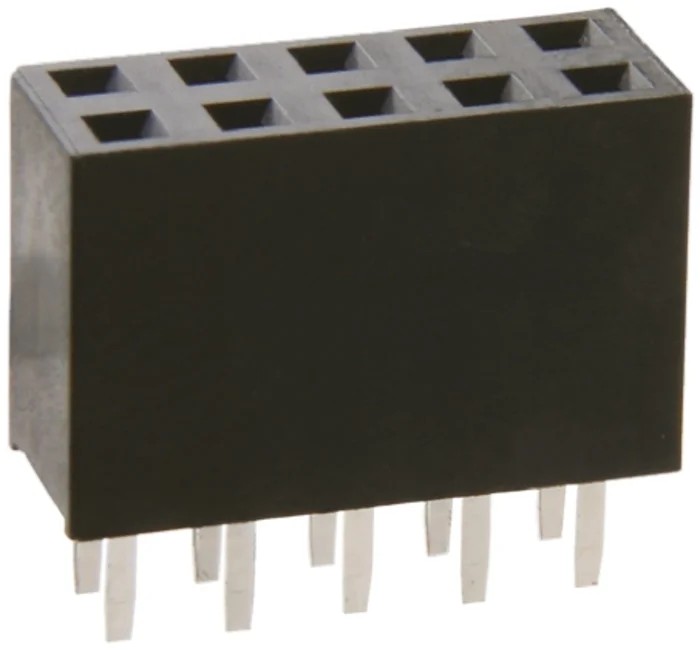

HARWIN M20 Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder M20-7830546
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-7830546 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a compact 2.54 mm pitch suitable for dense PCB layouts.
- Mounts via through hole technology ensuring reliable mechanical and electrical connection.
- High current rating of 12 A per contact for demanding applications.
- Constructed with durable Nylon housing and bronze contacts plated with tin over nickel.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Designed with female contact gender and straight orientation for standard connections.
- Supports up to 300 mating cycles with highly reliable dual beam contact design.
- Rated for 500 V, making it suitable for a wide range of electronic systems.
Product Description
HARWIN M20-7830546 Series Straight Through Hole PCB Socket is a high quality 10-contact, 2-row connector with a 2.54 mm pitch designed for board-to-board connections. It features a compact and robust design that meets stringent requirements for increased PCB density and limited height. The socket houses are manufactured from UL94V-0 rated Nylon material, providing excellent heat resistance suitable for reflow soldering processes.
The contacts are made of bronze with tin over nickel plating, offering both corrosion resistance and high conductivity. The dual beam contact design ensures up to 300 mating cycles with consistent electrical performance. The socket supports a current rating up to 12 A per contact and an operating voltage of 500 V, suitable for a broad range of industrial and commercial electronic equipment.
Operating temperature range from -40°C to 105°C allows use in harsh environmental conditions. The connector system is board-to-board with a straight orientation and female contact gender, supporting through hole mounting for durable assembly.
This M20 series PCB socket is widely applied in embedded PC systems, motherboards, industrial monitors, communication devices, control drives, and consumer electronics. Its compact design aids in space savings without compromising electrical performance.
Compact 2.54 mm pitch design enables higher PCB density. Durable Nylon housing rated UL94V-0 provides thermal stability. Bronze contacts with tin over nickel plating ensure reliable conductivity. Dual beam contact design for improved mechanical and electrical endurance.
Suitable for operating temperatures between -40°C and 105°C. High current and voltage ratings (12 A, 500 V) support industrial applications. Through hole mount type provides robust board attachment. Supports up to 300 mating cycles for long-term reliability.
Ideal for embedded systems, communications, consumer electronics, and industrial control systems.
Choose HARWIN M20 series PCB sockets for dependable, high-density PCB connections in industrial, commercial, and consumer electronics applications. Browse more in the Electronics Components and PCB Sockets category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12 A per contact, making it suitable for demanding applications.
The maximum operating temperature for this socket is 105°C, allowing it to function in various environmental conditions.
It features a compact pitch size of 2.54 mm, which is suitable for dense PCB layouts.
This model has a total of 10 contacts, arranged in 2 rows.
This unit utilizes through hole mounting technology, ensuring a reliable mechanical and electrical connection.
The housing is made of Nylon, while the contacts are constructed from bronze with tin over nickel plating, providing corrosion resistance and conductivity.
The HARWIN M20-7830546 is rated for 500 V, making it suitable for a wide range of electronic systems.
This socket features a female contact gender, designed for standard connections.
It supports up to 300 mating cycles, thanks to its dual beam contact design that ensures reliable electrical performance.
The minimum operating temperature is -40°C, allowing the socket to operate in harsh environments.
This model is widely applied in embedded PC systems, motherboards, industrial monitors, communication devices, and consumer electronics.
It uses solder termination, ensuring a secure connection to the PCB.
