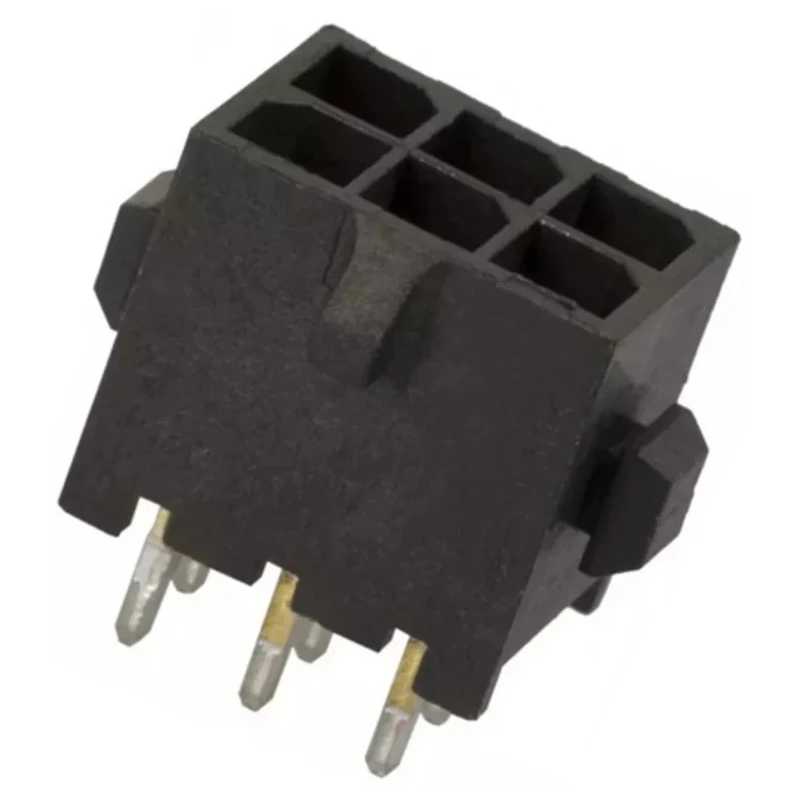

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 3-794630-6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- The header supports a maximum current rating of 5A for efficient electrical conduction.
- Constructed with a durable nylon housing to ensure insulation and mechanical strength.
- Brass contacts are plated with tin to provide corrosion resistance and reliable soldering.
- Designed with polarization and positive locking tabs to prevent mismating and enhance connection security.
- Operates reliably within a temperature range from -65°C to 105°C, suitable for diverse environments.
- Mount type is through hole with tail pin length of 3.18 mm, ideal for PCB soldering processes.
- This connector system is tailored for industrial and consumer electronics applications including household appliances and factory automation.
- The shrouded design provides additional protection against damage and short circuits.
Product Description
TE Connectivity 3-794630-6 Micro MATE-N-LOK Series Straight Through Hole PCB Header is a high-performance connector designed with a 3 mm pitch and 6 male contacts arranged in 2 rows. The shrouded black nylon housing offers polarization and positive locking tabs to prevent mismating and secure cable connections. This connector is engineered for wire-to-board applications and is mounted through hole for durable PCB attachment.
The brass contacts are tin-plated to optimize electrical conductivity and solderability, ensuring a reliable connection. Designed to withstand harsh environments, it operates within temperatures from -65°C to 105°C. The 3.18 mm tail pin length supports effective solder retention, enhancing mechanical stability on the PCB.
Micro MATE-N-LOK connectors are widely used in industrial settings such as factory automation, lighting, data storage, and household appliances. Their low profile and robust locking mechanism make them ideal for applications requiring secure and compact connections. The connectors also feature boardlocks and solder tail retention for secure PCB integration.
High reliability with polarization to prevent mismating. Positive lock tabs ensure a secure mechanical and electrical connection. Durable nylon housing for excellent insulation and mechanical protection. Supports wire-to-board connections with a current rating of 5A and 250V operating voltage.
Operating temperature range from -65°C up to 105°C for versatile applications. Through hole mount type designed for soldering with a 3.18 mm tail pin length. Suitable for industrial, consumer, and commercial electronics applications.
Shrouded design provides additional protection and secure mating.
This Micro MATE-N-LOK header connector system from TE Connectivity exemplifies durability and versatility for demanding electrical and electronic interfaces. It is a preferred choice for engineers designing PCBs requiring secure, high-quality connections. Explore more connectors in the PCB Connectors category at EnvMart.
