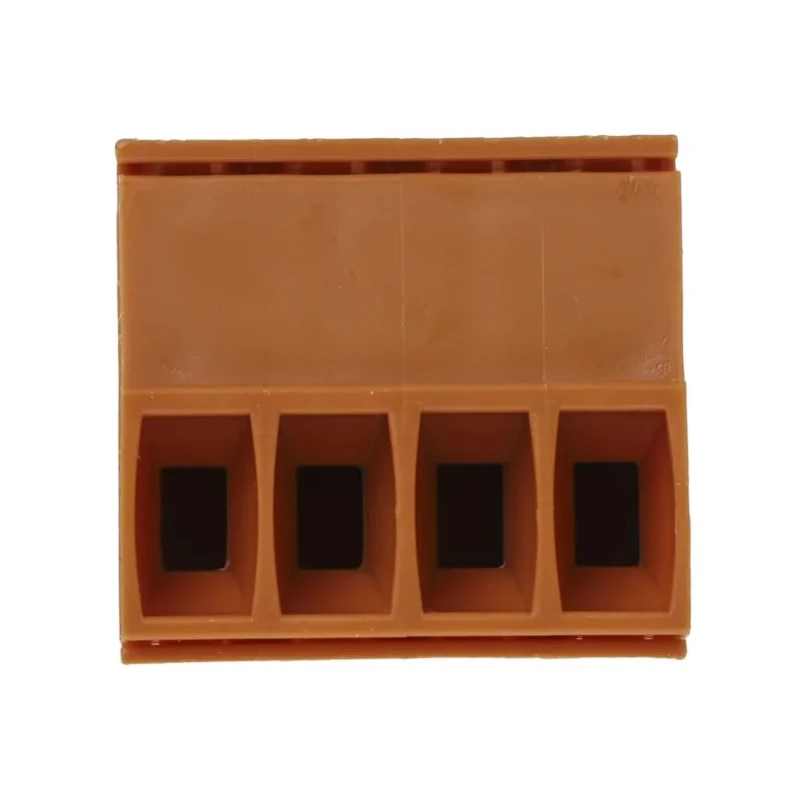

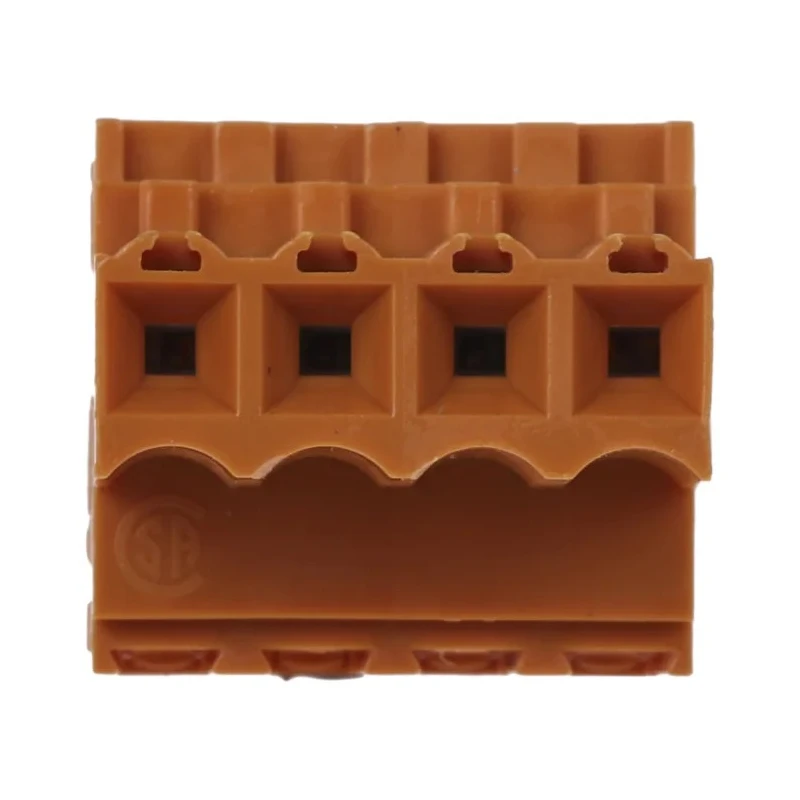

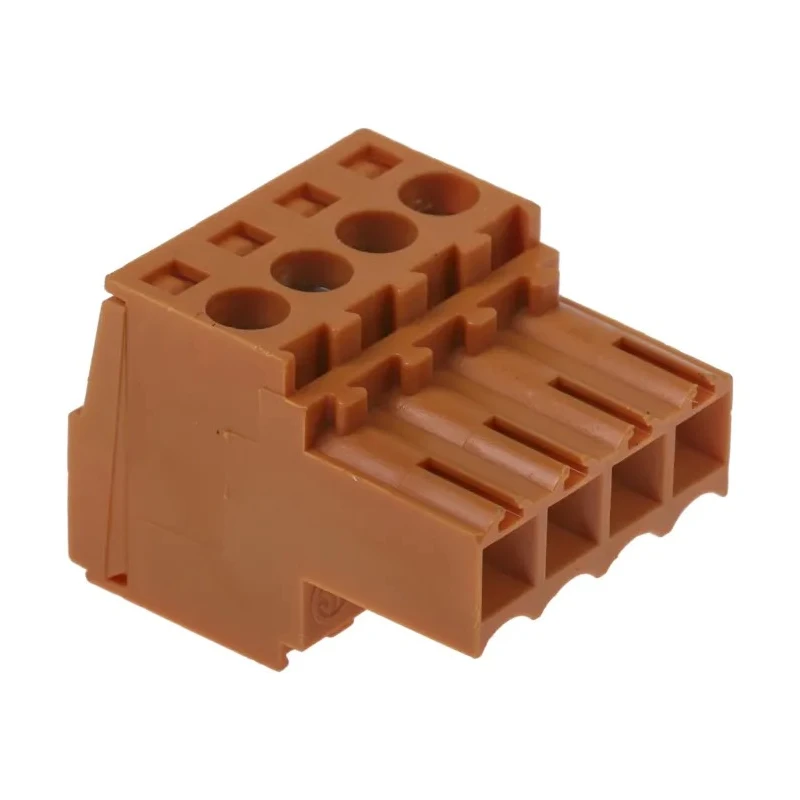

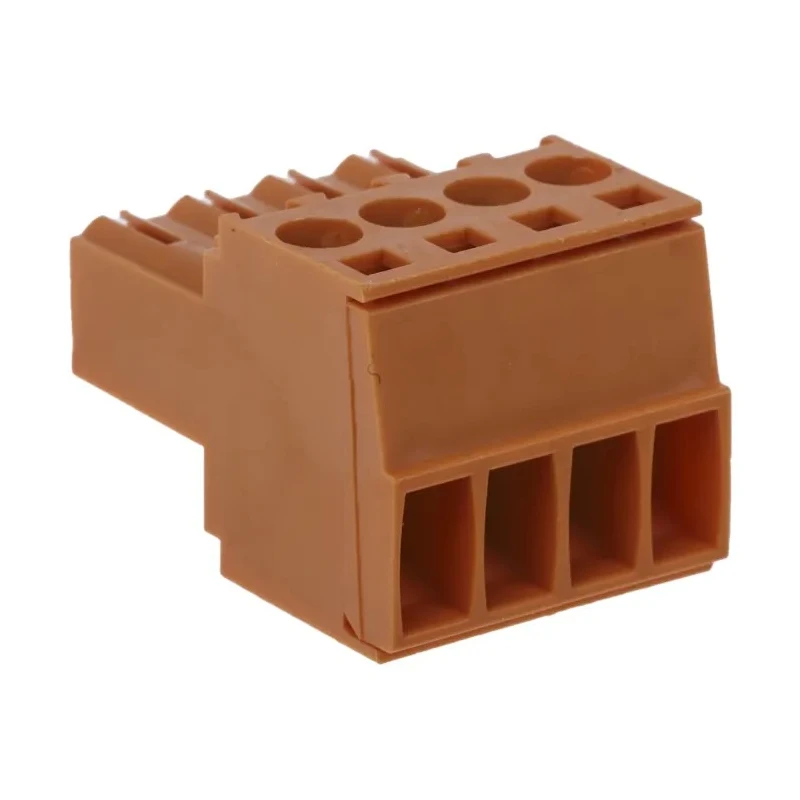

Weidmüller BL Series Pluggable Terminal Block 4-Contact 3.5 mm Pitch 1 Row 320V 17A Housing Polybutylene 1597380000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | 180° |
| Current | 17A |
| Depth | 18.5mm |
| Width | 14mm |
| Housing Material | Polybutylene Terephthalate |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 4 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Clamping Yoke |
Key Features
- Operates at a voltage rating of 320V and current rating of 17A.
- Constructed with durable Polybutylene Terephthalate housing material.
- Supports wire sizes from 0.08 mm² (28 AWG) to 1.5 mm² (14 AWG).
- Features clamping yoke wire connection method for secure wiring.
- Terminal block color is orange for clear identification.
- Orientation is 180 degrees, suitable for horizontal wire entry.
- Compact dimensions with 14 mm width and 18.5 mm depth.
- Manufactured in Germany ensuring high quality standards.
Product Description
Weidmüller 1597380000 Pluggable Terminal Block is a high-quality electronic component designed for reliable PCB connection applications. It features a 4-contact configuration with a compact 3.5 mm pitch and a single row layout for efficient space utilization in electronic assemblies.
This terminal block operates at 320V and supports a current of up to 17A, making it suitable for moderate power electronic circuits. The housing is made from Polybutylene Terephthalate (PBT), offering excellent insulation, durability, and resistance to high temperatures and mechanical stress.
Wire connection is achieved through a clamping yoke method, providing secure and stable electrical connections. It accepts wires ranging from 0.08 mm² to 1.5 mm² (28 to 14 AWG), accommodating a variety of wiring requirements.
The product's orientation is 180°, allowing for horizontal wire entries, and it is distinguished by its orange coloration, aiding in quick identification on PCB layouts.
With a width of 14 mm and depth of 18.5 mm, the device offers a compact footprint suitable for densely populated circuit boards in industrial, manufacturing, and electronic assembly contexts.
This terminal block is manufactured in Germany, reflecting strict quality control and compliance with industrial standards but it does not have specific standard approvals listed. Operates at 320V and 17A current rating.
Housing made of Polybutylene Terephthalate for durability. Supports wire sizes from 0.08 to 1.5 mm² (28 to 14 AWG). Clamping yoke connection ensures reliable wiring. Compact size with 14 mm width and 18.5 mm depth. Orange color aids identification.
180° orientation for horizontal wiring. Manufactured in Germany with high quality standards.
This Weidmüller BL Series Pluggable Terminal Block is ideal for industrial electronics, control panels, automation systems, and electrical assemblies requiring secure, space-saving, and durable terminal connections. Explore a wide range of Weidmüller connectors and terminals on EnvMart for diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block operates at a voltage rating of 320V and a current rating of 17A.
It supports wire sizes from 0.08 mm² (28 AWG) to 1.5 mm² (14 AWG).
The terminal block features a clamping yoke wire connection method for secure wiring.
The compact dimensions are 14 mm in width and 18.5 mm in depth.
It has a 180° orientation, suitable for horizontal wire entry.
The housing is constructed from Polybutylene Terephthalate (PBT).
This model has a 4-contact configuration.
It is manufactured in Germany, ensuring high quality standards.
The terminal block is orange, which aids in clear identification.
This terminal block belongs to the Weidmüller BL series.
It is ideal for industrial electronics, control panels, automation systems, and electrical assemblies.
It features a compact 3.5 mm pitch and a single row layout for efficient space utilization in electronic assemblies.
