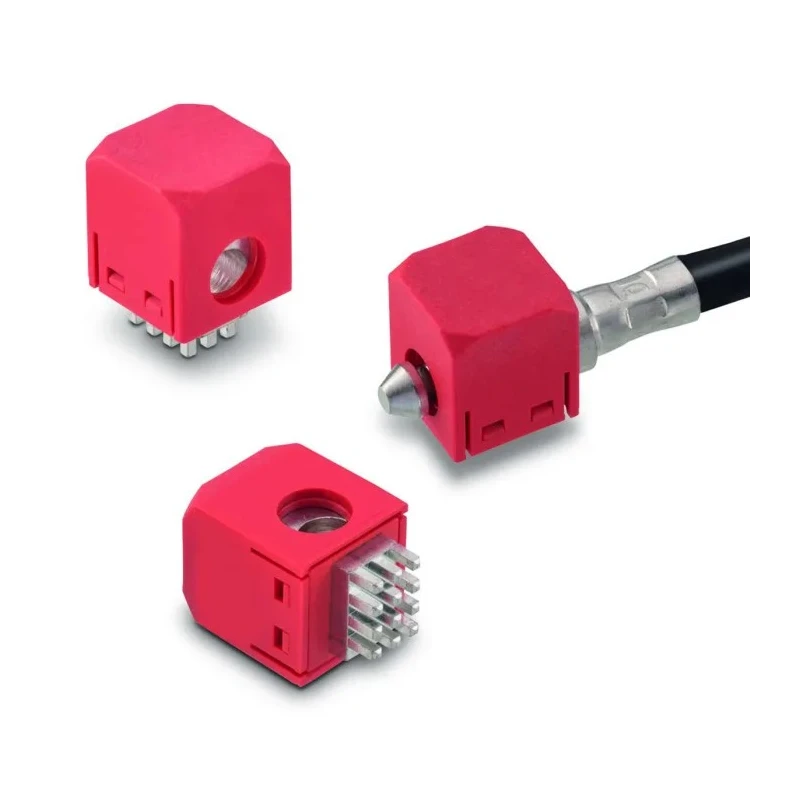

Wurth Elektronik REDCUBE Series PCB Terminal Block 1-Contact 1 Row 120A Red Polybutylene Terephthalate Housing 7464000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Colour | Red |
| Orientation | Straight |
| Current | 120A |
| Length | 14.3mm |
| Model | 7464000 |
| Depth | 18.1mm |
| Width | 14.3mm |
| Mount Type | PCB |
| Housing Material | Polybutylene Terephthalate |
| Series | REDCUBE |
| Number of Rows | 1 |
| Number of Contacts | 1 |
| Wire Connection Method | Press-Fit |
Key Features
- The housing is made of durable Polybutylene Terephthalate in red color.
- Designed for PCB mount with a straight orientation and press-fit wire connection method.
- Compact size with dimensions 14.3mm (length) × 14.3mm (width) × 18.1mm (depth) enables mounting in confined spaces.
- Press-fit termination ensures a gas-tight and strong mechanical connection without additional tooling.
- The spring actuator allows quick and secure plug-in mating, ideal for multi-pluggable solutions.
- Operation temperature rating up to 125°C ensures reliable performance under heat.
- Low contact resistance guarantees minimal self-heating during high current operation.
- Suitable for industrial, power electronics, and electronic component applications.
Product Description
Wurth Elektronik 7464000 REDCUBE Series PCB Terminal Block is a high-current PCB plug terminal designed to provide secure and reliable wire-to-board connections. This 1-contact, 1-row terminal block features a glass fiber reinforced Polybutylene Terephthalate housing in red color, ensuring durability and heat resistance up to 125°C.
The terminal block's press-fit wire connection method securely anchors the terminal to the PCB with a gas-tight connection achieved by the cold-welding phenomenon, eliminating issues common with cold solder joints. Its compact dimensions (14.3mm length and width, 18.1mm depth) allow for efficient use of PCB space, supporting designs in constrained installations.
Equipped with a spring actuator, the terminal block enables quick and easy plug-in mating, making it useful for multi-pluggable electronic solutions that demand high current handling capability of up to 120A with low contact resistance for minimal self-heating.
No additional tooling is needed for installation, thanks to its press-fit terminations. This terminal block suits various industrial sectors including electronics manufacturing, power distribution, and industrial control systems.
The housing material is Polybutylene Terephthalate, chosen for strength and thermal stability. Current rating of 120A ensures suitability for high-power applications. The red color coding facilitates easy identification in complex assemblies.
Press-fit termination provides a reliable and maintenance-free mechanical connection. Compact form factor allows installation in confined spaces. Spring actuator enables quick connection and disconnection. Designed specifically for PCB mounting with straight orientation.
Allows for multiple pluggable solutions improving modularity in design.
Choose Wurth Elektronik REDCUBE PCB Terminal Block 7464000 for secure, high-performance electronic connections in industrial, power, and commercial electronic applications. Explore more PCB Terminal Blocks and related components on EnvMart for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 120A, making it suitable for high-power applications.
The terminal block measures 14.3mm in length, 14.3mm in width, and 18.1mm in depth, allowing for efficient use of PCB space.
The housing is made of Polybutylene Terephthalate, which provides strength and thermal stability.
It uses a press-fit wire connection method, which ensures a gas-tight and strong mechanical connection without the need for additional tooling.
This terminal block is designed for straight orientation, which is suitable for PCB mounting.
The terminal block can operate at temperatures up to 125°C, ensuring reliable performance under heat.
No, the press-fit termination allows for installation without any additional tooling, simplifying the setup process.
This terminal block features 1 contact, making it a single-contact solution for PCB connections.
The housing is red, which facilitates easy identification in complex assemblies.
The country of origin for this terminal block is India.
This model is part of the REDCUBE Series, which is designed for high-current PCB plug terminal applications.
