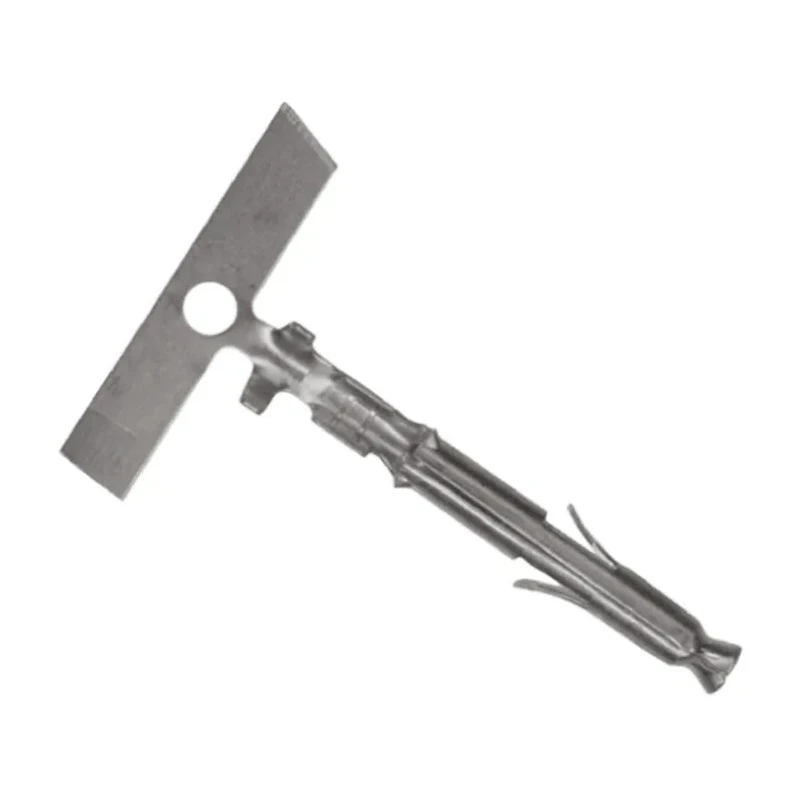

TE Connectivity Mini-Universal MATE-N-LOK II Series Female Crimp Terminal, 3A Current, 26-22 AWG Wire Size, Brass 794227-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 19.94mm |
| Model | 794227-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK II Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed from high-quality brass with tin plating for excellent conductivity and corrosion resistance.
- Designed for Mini-Universal MATE-N-LOK II connector housings to ensure perfect fit and secure connection.
- Supports crimping on wire sizes ranging from 26 AWG minimum to 22 AWG maximum.
- Rated for a maximum current of 3 Amperes for safe electrical performance.
- Operates reliably within a temperature range of -30°C to 105°C.
- Offers a maximum contact resistance of 20 milliohms to maintain signal integrity.
- Compact length of 19.94 mm suits various electronic and electrical assembly applications.
- Terminal features a crimp termination type, facilitating efficient and robust wire termination.
Product Description
TE Connectivity 794227-1 Mini-Universal MATE-N-LOK II Series Female Crimp Terminal is designed for professional electronic and electrical applications requiring secure wire termination. This crimp terminal is specifically made for use with Mini-Universal MATE-N-LOK II connector housings and accommodates wire sizes from 26 AWG minimum to 22 AWG maximum, supporting a current rating of up to 3 Amperes.
Crafted from brass, the terminal is tin plated enhancing its corrosion resistance and electrical conductivity, critical for reliable long-term connections. The crimp termination type is optimized for efficient installation, ensuring consistent mechanical and electrical performance within industrial assembly lines.
With a compact length of 19.94 mm, the terminal is suitable for dense electronic assemblies where space is a constraint. Its ability to operate reliably in temperatures from -30°C up to 105°C makes it ideal for harsh environments often encountered in industrial, manufacturing, and power distribution settings.
Maintaining signal fidelity is crucial in electrical connectors and the 794227-1 terminal offers a low maximum contact resistance of 20 milliohms. These terminals assist in the creation of dependable wire connections that withstand mechanical stress and environmental conditions.
Constructed from brass with tin plating for durability and conductivity. Compatible with Mini-Universal MATE-N-LOK II connector housings. Supports wire sizes from 26 AWG to 22 AWG. Rated for 3 Amps current handling capacity.
Operates between -30°C and 105°C temperature range. Low maximum contact resistance of 20 milliohms ensures signal integrity. Compact 19.94 mm length ideal for space-constrained applications. Crimp termination for secure wire connections.
Made in the United States assuring quality manufacturing standards.
This crimp terminal is widely used in electronics manufacturing, automotive electrical systems, industrial machinery assembly, and power connector applications. It forms a critical component in connector assemblies ensuring robust, safe, and reliable electrical contacts.
For professionals seeking dependable crimp terminals with precise specifications, the TE Connectivity 794227-1 Mini-Universal MATE-N-LOK II Female Crimp Terminal presents an optimal solution. Explore other connectors and Crimp Contacts within our extensive industrial and electronic components catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 3 Amperes.
This model supports wire sizes ranging from 26 AWG minimum to 22 AWG maximum.
The maximum operating temperature is 105°C.
It operates reliably within a temperature range starting from -30°C.
The terminal has a compact length of 19.94 mm.
It features a crimp termination type for efficient and robust wire connections.
The terminal is constructed from brass with tin plating, enhancing its conductivity and corrosion resistance.
It has a maximum contact resistance of 20 milliohms.
Yes, it is designed for use with Mini-Universal MATE-N-LOK II connector housings.
It is manufactured in the United States.
It is widely used in electronics manufacturing, automotive electrical systems, industrial machinery assembly, and power connector applications.
This terminal is female gender.
