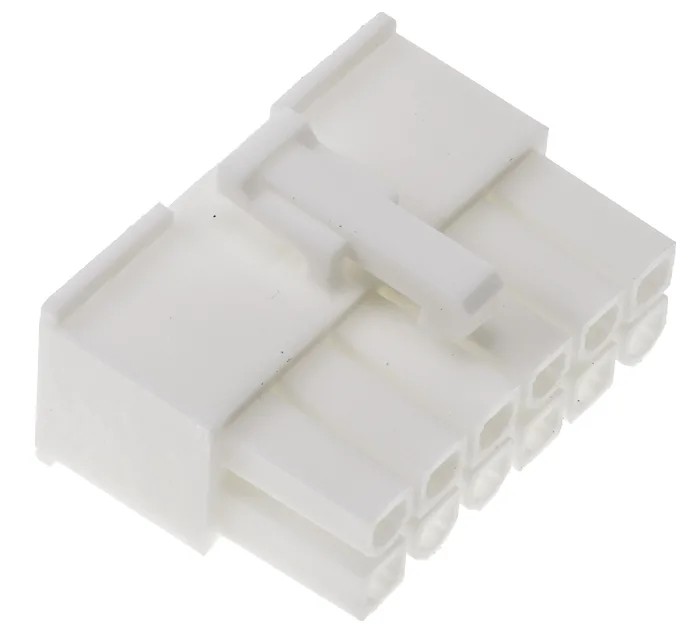

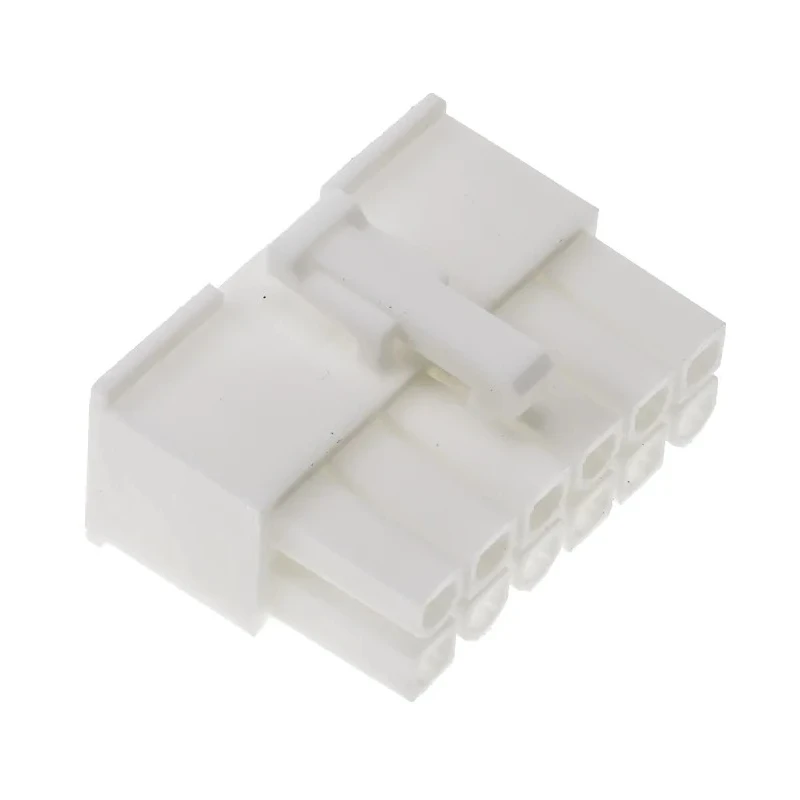

Molex Mini-Fit Jr Male Connector Housing, 12 Way, 4.2 mm Pitch, 2 Row Straight 39-01-2125
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 26.4mm |
| Width | 19.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals |
| Number of Contacts | 12 |
| Connector Gender | Male |
Key Features
- Constructed with durable nylon housing for high tensile strength and flame retardance.
- Designed to handle up to 13A current per circuit for heavy-duty electrical applications.
- Includes positive locking mechanism and audible click for secure and vibration-resistant mating.
- Polarization and keying features prevent misalignment and mis-mating during connectors attachment.
- Compact size with width 19.6 mm and length 26.4 mm suitable for space-constrained PCB layouts.
- Supports wire-to-board and wire-to-wire connections using compatible Mini-Fit Jr terminals.
- Widely used across automotive, telecommunication, and consumer electronic industries.
Product Description
The Molex 39-01-2125 Mini-Fit Jr Male Connector Housing is a robust and reliable 12-way connector designed for industrial and commercial electrical applications. With a 4.2 mm pitch and a two-row straight orientation, this housing provides a secure solution for establishing safe electrical connections on printed circuit boards and wire harnesses.
Manufactured from high-strength nylon, the housing ensures excellent resistance to mechanical impact and flame retardance, making it suitable for demanding environments. Each contact point supports current up to 13 amperes, allowing for heavy-duty use in power and signal transmission.
This connector includes essential features such as polarization and keying to prevent incorrect mating, alongside a positive locking mechanism with an audible click to confirm secure connection. The lightweight design, weighing just 2.518 grams, minimizes physical strain on PCB assemblies.
Its compact dimensions - 19.6 mm width and 26.4 mm length - facilitate integration into space-limited applications, while compatibility with Mini-Fit Plus HCS and Mini-Fit Female Crimp Terminals enables versatile usage. Typical industries benefiting from this connector include automotive, telecommunications, and consumer electronics, where reliable electrical connections are critical.
Durable nylon housing with flame retardant properties. Supports 13A current per contact for heavy-duty applications. Polarization and keying prevent mis-mating and misalignment. Positive locking with audible click ensures secure mating.
Compact size and lightweight to reduce PCB stress. Compatible with standard Mini-Fit Jr and Plus terminals. Suitable for wire-to-board and wire-to-wire connections.
This Connector Housing is part of the Mini-Fit Jr series known for high reliability and adaptability in power connector applications. Ideal for various industrial, manufacturing, electronic, automotive, and telecommunications use cases, this product ensures safety and performance in critical electrical interconnections.
Shop related connector parts and components within the Electronics Components category at EnvMart for trustworthy solutions to your assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact point in this connector housing supports a maximum current of 13 amperes, making it suitable for heavy-duty electrical applications.
This model has a width of 19.6 mm and a length of 26.4 mm, making it compact for space-constrained applications.
The housing is constructed from durable nylon, which provides high tensile strength and flame retardance.
It is compatible with 45750 Mini-Fit Plus HCS Crimp Terminals and 5556 Mini-Fit Female Crimp Terminals for versatile usage.
This model includes polarization and keying features that help prevent misalignment and mis-mating during attachment.
It features a positive locking mechanism with an audible click to confirm a secure and vibration-resistant mating connection.
The orientation of this connector housing is straight, designed for easy integration into various applications.
This unit weighs 2.518 grams, which helps minimize physical strain on PCB assemblies.
It is widely used across automotive, telecommunications, and consumer electronics industries, where reliable electrical connections are critical.
It supports both wire-to-board and wire-to-wire connections using compatible Mini-Fit Jr terminals.
This connector housing is part of the Mini-Fit series, known for its reliability and adaptability in power connector applications.
The country of origin for this connector housing is India.
