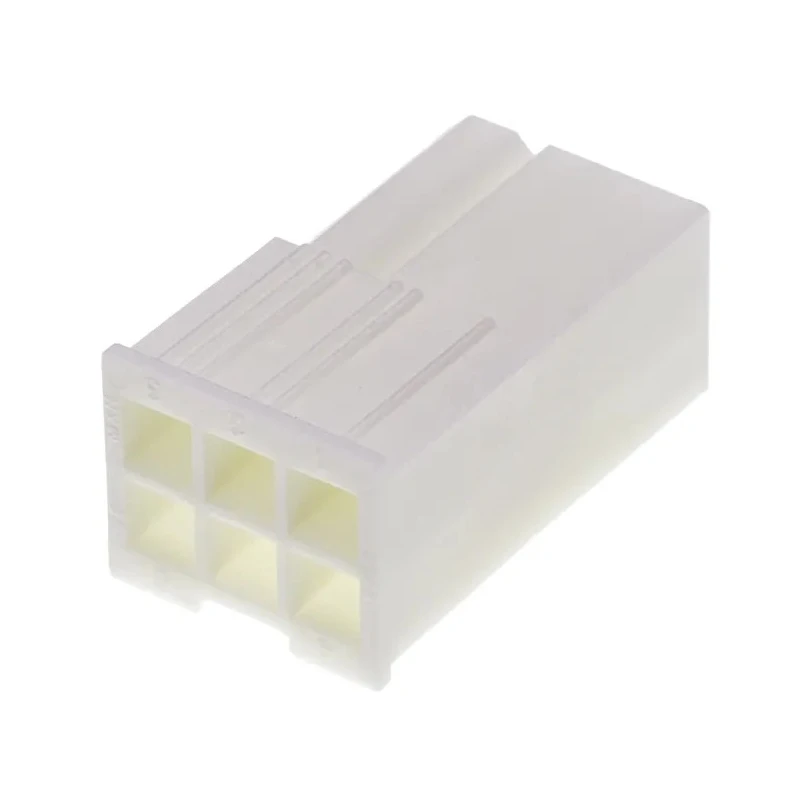

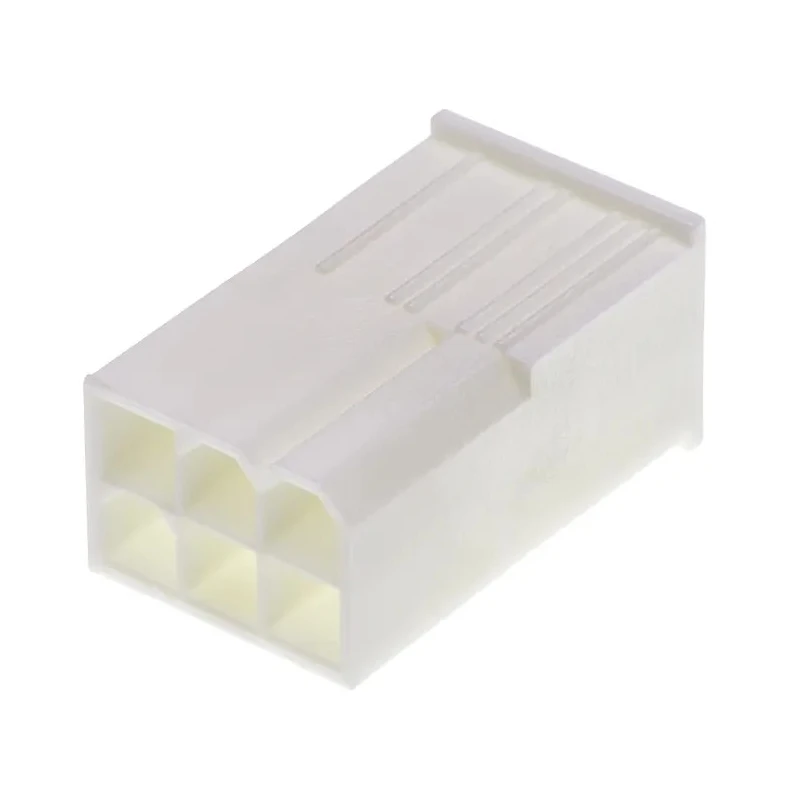

Molex Mini-Fit Jr Male Connector Housing 4.2 mm Pitch 6 Way 2 Row Straight 39-01-3069
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 13.8mm |
| Width | 9.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit Jr |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Mini-Fit Jr. Plug |
| Number of Contacts | 6 |
| Connector Gender | Male |
Key Features
- Constructed from durable nylon housing material ensuring reliable electrical insulation.
- Accepts up to 13A current per circuit, suitable for high current applications.
- Features polarization and keying to prevent mismating and misalignment.
- Includes a positive locking mechanism to prevent accidental disconnection from shock or vibration.
- Designed for wire-to-wire cable mount use with Mini-Fit Jr. plugs.
- Compact size with 13.8 mm length and 9.6 mm width for efficient space utilization.
- Offers compatibility with standard Mini-Fit and Mini-Fit Plus crimp terminals.
- Manufactured in the United States, ensuring high-quality standards.
Product Description
Molex 39-01-3069 Mini-Fit Jr male connector housing is a precision-engineered electronic component designed for power and signal connections in various industrial and commercial applications. With a 4.2 mm pitch and 6 contacts arranged in 2 rows in a straight orientation, this nylon-based connector housing offers excellent mechanical strength and electrical insulation.
This connector housing handles up to 13 amps per circuit, making it ideal for high current applications including industrial equipment, automation systems, and power distribution units. The housing is fully isolated to protect the terminals from debris and damage caused by mishandling, ensuring reliable and safe connections.
Its polarization and keying features provide foolproof mating, preventing misalignment and mismatching of connectors. The positive locking mechanism secures the connector firmly, preventing unwanted disconnection due to vibration or shock, with an audible click confirming proper mating.
The product is designed for cable mounting and is compatible with Mini-Fit Jr plugs and standard Mini-Fit and Mini-Fit Plus crimp terminals, supporting wire-to-wire configurations needed in automotive, industrial automation, and electronic assemblies.
This Connector Housing is a critical component in electronics and power connector systems, ensuring dependable connections in demanding environments. Constructed from durable nylon housing material ensuring reliable electrical insulation.
Accepts up to 13A current per circuit, suitable for high current applications. Features polarization and keying to prevent mismating and misalignment. Includes a positive locking mechanism to prevent accidental disconnection from shock or vibration.
Designed for wire-to-wire cable mount use with Mini-Fit Jr. plugs. Compact size with 13.8 mm length and 9.6 mm width for efficient space utilization. Offers compatibility with standard Mini-Fit and Mini-Fit Plus crimp terminals.
Manufactured in the United States, ensuring high-quality standards.
Ideal for industrial, manufacturing, automation, and electronic assembly applications. Explore more Molex connectors and reliable electronic components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing can handle up to 13A current per circuit, making it suitable for high current applications.
The pitch size of this connector housing is 4.2 mm.
It features 6 contacts arranged in 2 rows.
The housing is constructed from durable nylon material, providing reliable electrical insulation.
This model is designed for cable mounting, suitable for wire-to-wire configurations.
Yes, it includes a positive locking mechanism to prevent accidental disconnection due to shock or vibration.
It features polarization and keying to prevent mismating and misalignment during connection.
The dimensions are 13.8 mm in length and 9.6 mm in width.
Yes, it is compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals.
It is manufactured in the United States, ensuring high-quality standards.
This connector housing is suitable for applications in industrial equipment, automation systems, and power distribution units.
The orientation of this connector housing is straight.
