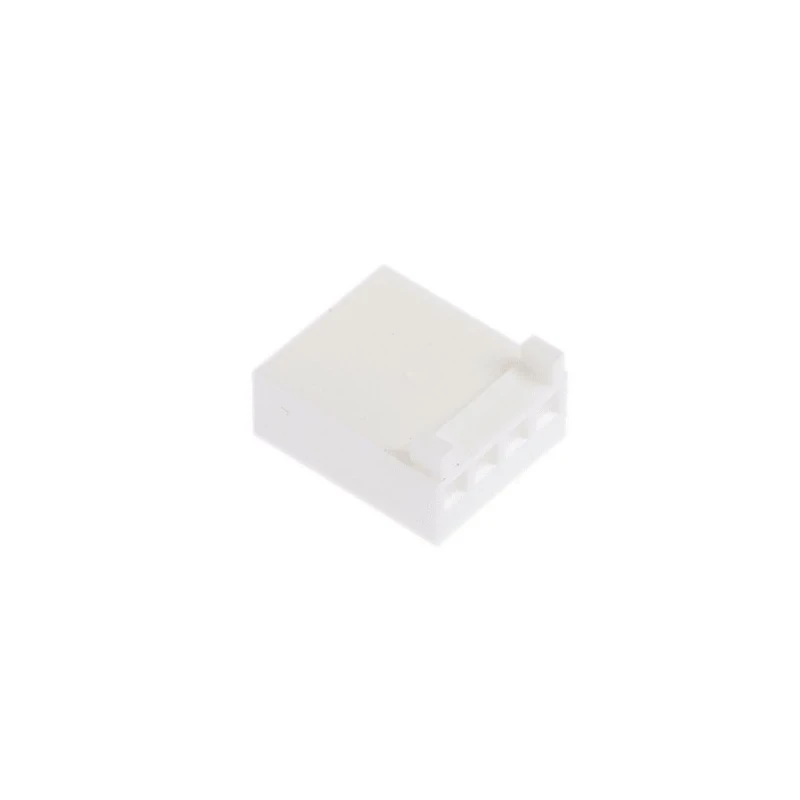

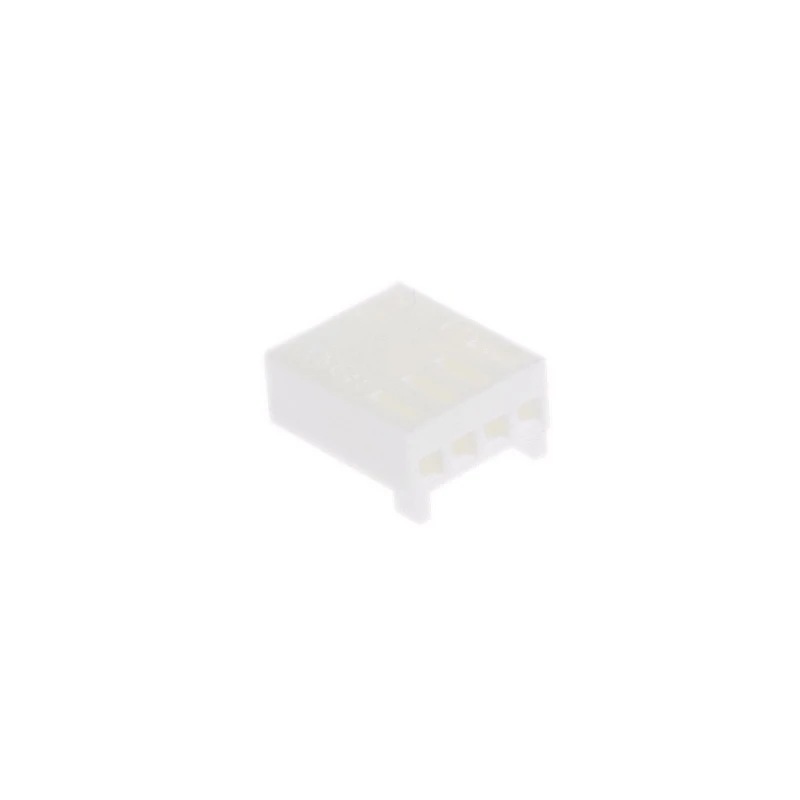

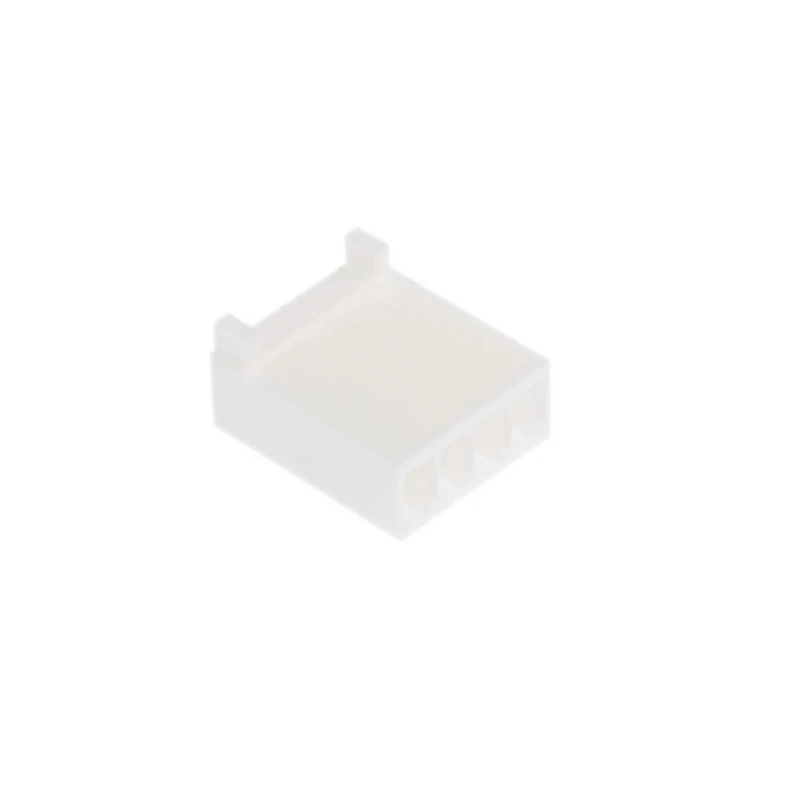

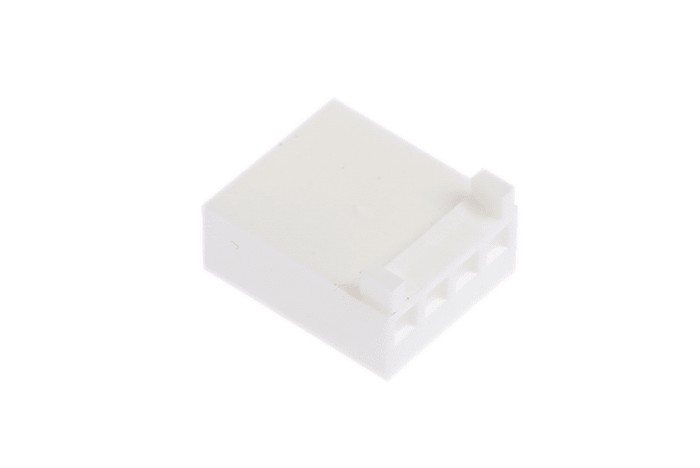

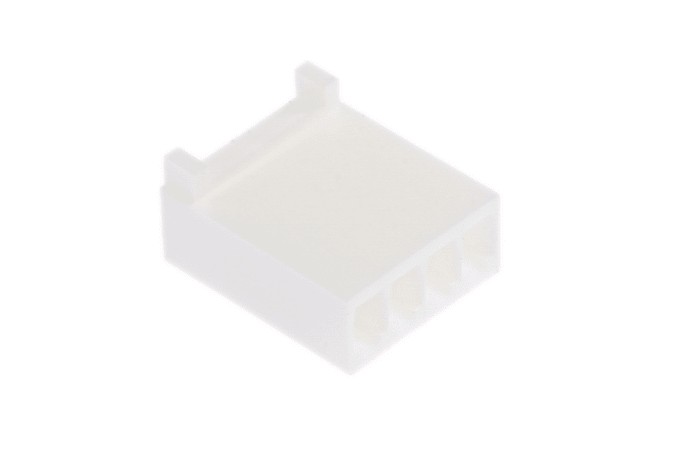

Molex KK 254 Female Connector Housing 2.5 mm Pitch 4 Way 1 Row Straight 22-01-3047
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 10.72mm |
| Width | 12.7mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 254 |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon housing material for strength and longevity.
- Features a 2.5 mm pitch with four contacts arranged in a single-row straight configuration.
- Incorporates a locking mechanism for stable, error-free mating with corresponding terminals.
- Compact dimensions measuring 10.72 mm length and 12.7 mm width for easy integration.
- Designed specifically for use with Molex KK series crimp terminals.
- Offers a 94V-0 flammability rating ensuring safety in electrical systems.
- Ideal for automotive, production line, and printed circuit board applications.
Product Description
Molex 22-01-3047 KK 254 Female Connector Housing is a high-quality connector housing designed for secure and efficient electrical connections in various industrial applications.
Featuring a nylon body measuring 10.72 mm in length and 12.7 mm in width, this connector housing supports four contacts arranged in a single straight row with a pitch of 2.5 mm. The design facilitates easy installation and ensures precise mating with compatible male connectors through its polarity and locking feature, reducing assembly errors.
The 94V-0 flammability rating of the nylon housing offers enhanced fire resistance, ensuring safety in demanding environments. Its compact size allows it to fit comfortably within tight PCB layouts or control systems.
Commonly used in automotive industries, production lines, and printed circuit board assemblies, this connector housing is engineered for compatibility with a range of Molex KK series crimp terminals including models 2759, 41572, 4809, 6459, and 8088.
Durable nylon housing enhances mechanical strength and longevity. 2.5 mm pitch with four female contact positions in one row. Straight orientation simplifies cable management and routing. Locking mechanism provides reliable, maintenance-free connections.
94V-0 rated for high safety standards in electrical systems. Compact form factor with 10.72 mm length and 12.7 mm width. Ideal for automotive, manufacturing, and electronic PCB applications. This Molex KK 254 Female Connector Housing offers a trusted solution for manufacturers and engineers requiring dependable wire housing for electronic components.
Explore more Connector Housings in the Molex range and related electronics components at EnvMart for your industrial, automotive, or production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 2.5 mm pitch and supports four contacts arranged in a single row.
The connector housing measures 10.72 mm in length and 12.7 mm in width.
The housing is constructed from nylon, which provides mechanical strength and longevity.
This connector housing has a straight orientation, which simplifies cable management and routing.
Yes, it incorporates a locking mechanism for stable, error-free mating with corresponding terminals.
The housing has a 94V-0 flammability rating, ensuring safety in electrical systems.
It is designed specifically for use with Molex KK series crimp terminals, including models 2759, 41572, 4809, 6459, and 8088.
This model is ideal for automotive, production line, and printed circuit board applications.
This connector housing has one row for contact arrangement.
The mounting type for this connector housing is cable.
The country of origin for this connector housing is India.
This connector housing is designed for female connectors.
