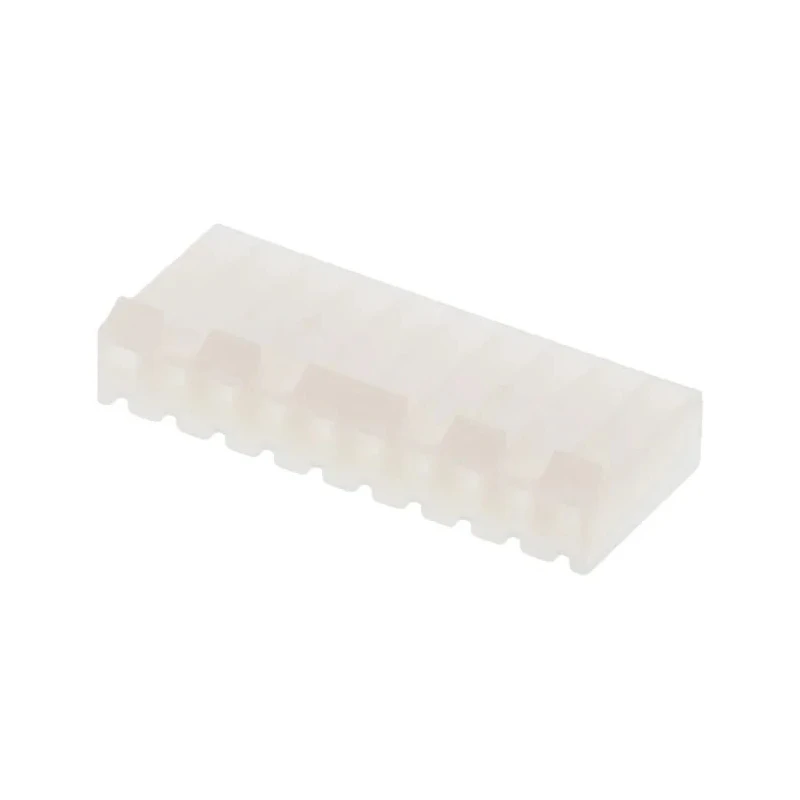

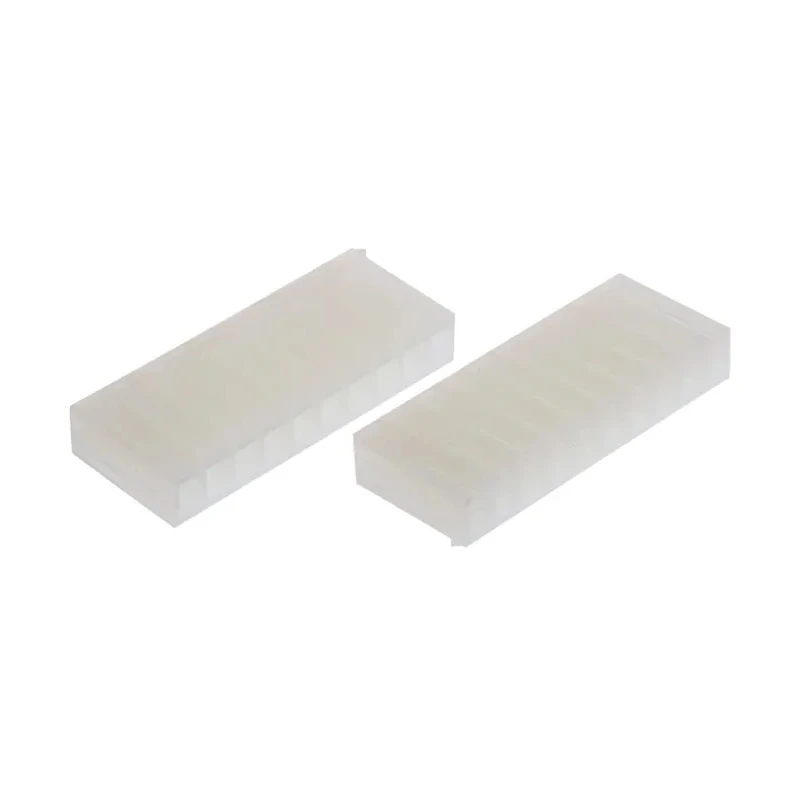

Molex KK 396 Female Connector Housing, 10 Way, 1 Row Straight, 3.96 mm Pitch 09-50-3101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 39.52mm |
| Width | 6.4mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | KK Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- The compact 3.96 mm pitch is suitable for small conductor sizes.
- Constructed from durable, thermally resistant nylon for abrasion and impact protection.
- Integrated friction lock prevents accidental disconnections.
- Features ramp and polarising ribs to minimize mating errors.
- Compatible with Molex KK 2478 and 2578 series terminals for versatile use.
- Designed with a straight body orientation for easy installation on front-facing panels.
- Ideal for applications in agricultural equipment, audio-visual devices, marine engineering, and packaging facilities.
Product Description
The Molex 09-50-3101 KK 396 Female Connector Housing is a robust connector housing featuring a 10-contact, single-row straight cable mounting design with a 3.96 mm pitch. Manufactured from high-quality nylon, it offers strong resistance against abrasion and thermal stress, ensuring long-lasting performance in demanding industrial settings.
Its compact pitch size enables secure connections for small conductors, while the integrated friction lock maintains a firm hold to prevent accidental unplugging during operation. The presence of ramp and polarising ribs minimizes the risk of improper mating, facilitating reliable and error-free connections.
This female connector housing is compatible with Molex's KK 2478 and 2578 series terminals, making it a flexible choice for wire-to-board connection systems. Its straight body orientation makes it easy to mount onto front-facing circuit boards within control panels or machinery enclosures.
Common industrial applications include agricultural machinery, audio-visual equipment, marine engineering, and packaging systems where dependable electrical connections are required. The component protects the crimp terminals against dirt and moisture, enhancing system durability and electrical integrity.
The compact 3.96 mm pitch is suitable for small conductor sizes. Constructed from durable, thermally resistant nylon for abrasion and impact protection. Integrated friction lock prevents accidental disconnections. Features ramp and polarising ribs to minimize mating errors.
Compatible with Molex KK 2478 and 2578 series terminals for versatile use. Designed with a straight body orientation for easy installation on front-facing panels. Ideal for applications in agricultural equipment, audio-visual devices, marine engineering, and packaging facilities.
This product forms part of the Molex KK Interconnect System, Series 2139, providing a reliable and economical solution for multi-pole PCB connections. Explore EnvMart's wide range of electronic Connector Housings for more options suited to industrial and manufacturing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 3.96 mm, making it suitable for small conductor sizes.
This model features 10 contacts in a single-row configuration.
The housing is constructed from nylon, which provides abrasion and thermal resistance.
The connector housing is designed with a straight body orientation for easy installation on front-facing panels.
It is compatible with Molex KK 2478 and 2578 series terminals, allowing for versatile use in wire-to-board connections.
The housing has a length of 39.52 mm and a width of 6.4 mm.
The integrated friction lock helps maintain a firm hold, preventing accidental unplugging during operation.
Common applications include agricultural machinery, audio-visual equipment, marine engineering, and packaging systems.
The mounting type for this housing is cable, allowing for secure connections in various setups.
This connector housing is part of the Molex KK 396 series.
The country of origin for this connector housing is India.
The housing includes ramp and polarising ribs that help minimize the risk of improper mating, facilitating reliable connections.
