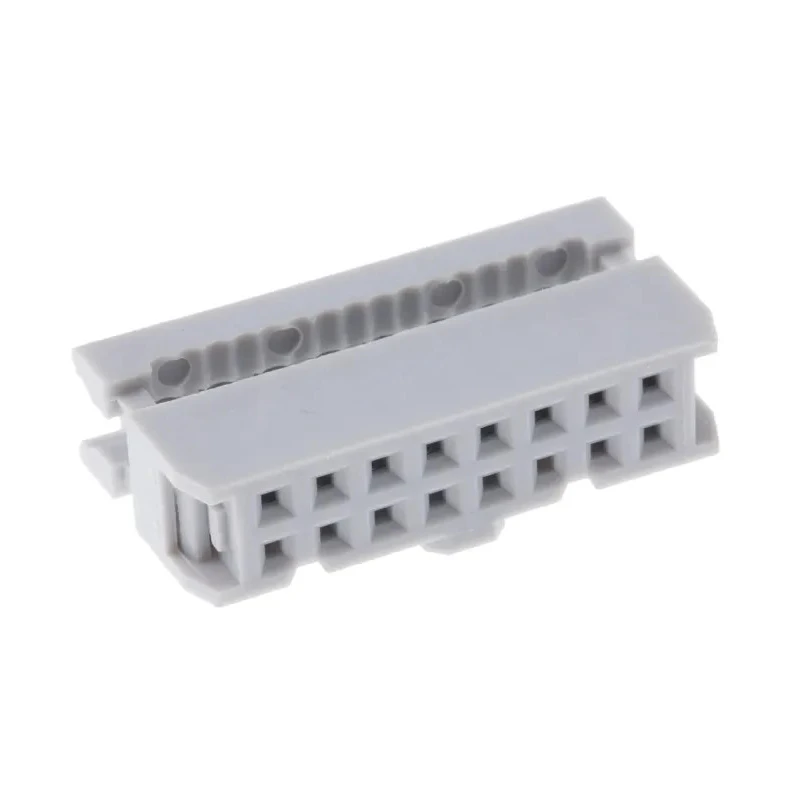

ASSMANN WSW 16-Way IDC Connector Female for Cable, 2 Row, 3A, 250V ac, AWP 16-7240-T

ASSMANN WSW AWP 16-7240-T 16-Way IDC Connector Female for Cable is an industrial-grade electrical connector designed to provide robust connections for ribbon cable applications. Featuring a double row with 16 contacts and 2.54mm pitch spacing, this connector ensures a reliable interface for electronic components requiring precise, stable connections.

The connector supports a current rating of 3A at an operating voltage of 250V ac, suitable for a wide range of electronics and electrical assemblies. The contacts benefit from gold and nickel plating, which guarantee corrosion resistance and enhanced conductivity, critical for maintaining signal integrity in demanding environments.

Housed in a flame-retardant Polybutylene Terephthalate (PBT) material compliant with UL94V-0 requirements, the connector is built to withstand mechanical stresses and environmental challenges. It operates efficiently within temperature ranges from -40°C to 105°C, making it adaptable for industrial, laboratory, construction, manufacturing, and HVAC uses.

The IDC (Insulation Displacement Contact) termination type enables quick and secure installation onto ribbon cables without the need for stripping wires, reducing assembly time and errors. The connector also features a right-angle orientation, which facilitates compact assembly layouts, crucial in high-density PCB designs and wire harness configurations.

Constructed with durable brass contact material, it assures mechanical reliability and long service life. Although this connector does not carry specific certifications or approvals, it is widely utilized for electrical interconnections in various electronics and electrical component applications.

Supports a current rating of 3A at 250V ac voltage for electrical stability. Shrouded female contacts with gold and nickel plating for corrosion resistance. Flame-retardant Polybutylene Terephthalate housing ensures safety and durability.

Temperature range from -40°C to 105°C permits use in various environments. IDC termination allows fast and reliable ribbon cable connections. Right-angle cable mount supports compact and efficient assembly design. Brass contacts provide mechanical strength and performance longevity.

Manufactured in China, adhering to quality production standards.

This ASSMANN WSW IDC Connector is ideal for usage in electronics manufacturing, industrial automation, instrumentation, and other sectors that require dependable cable-to-board connections. Browse the Electronics & Electricals category on EnvMart for more industrial-grade connectors and related products.
