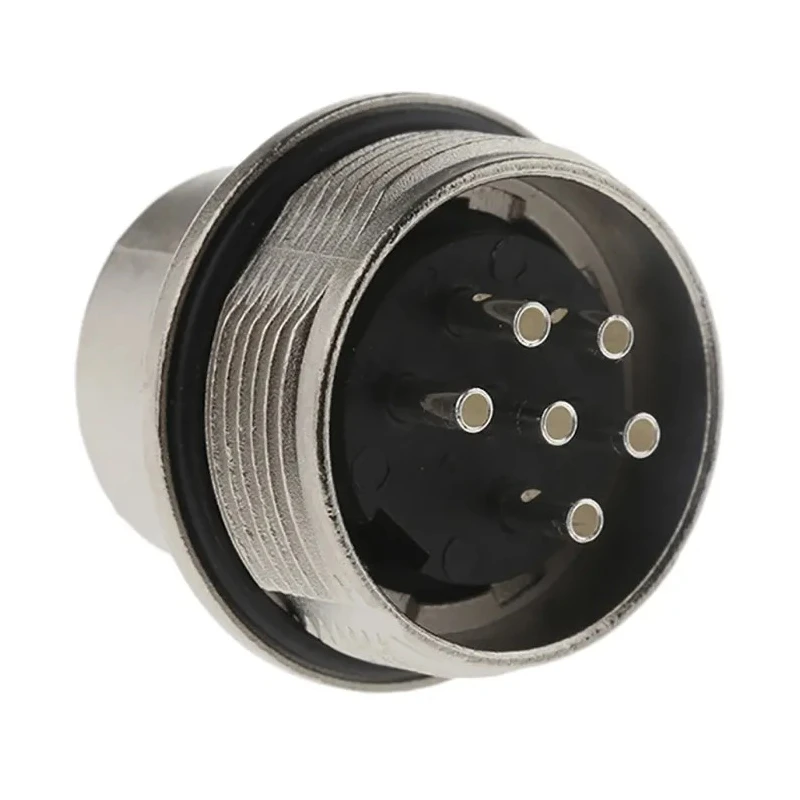

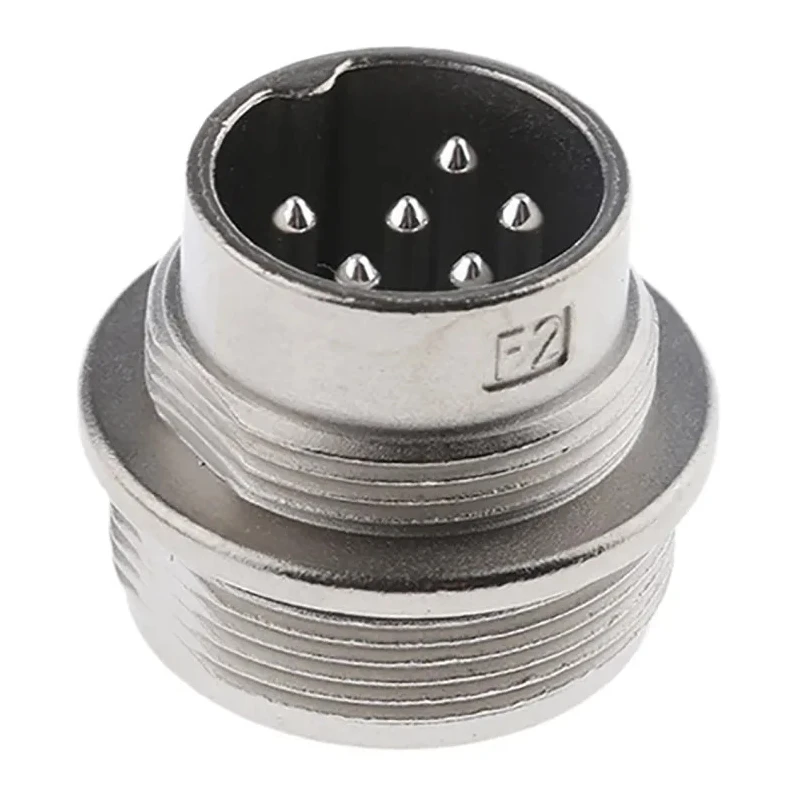

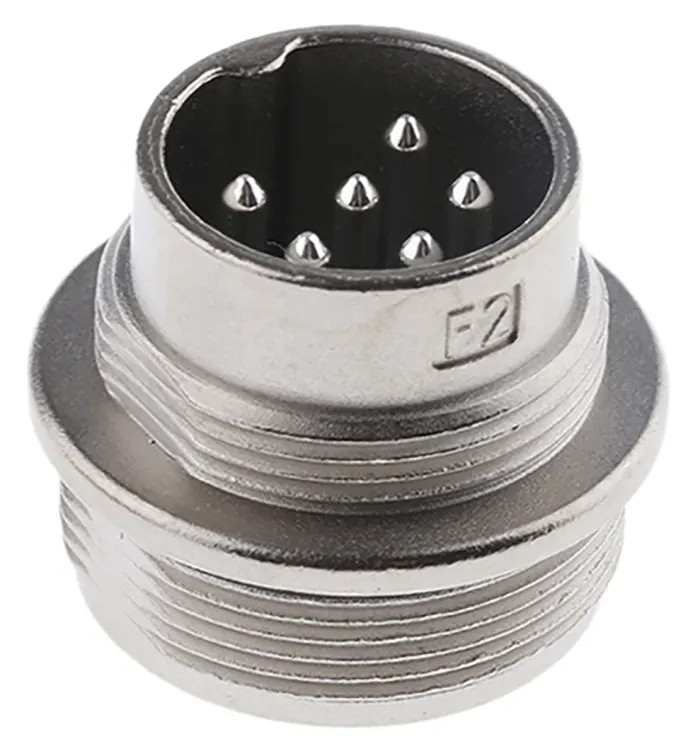

Amphenol Industrial C 091 D 6 Pole Straight M16 DIN Plug, Panel Mount, 5A, 300V AC/DC, IP67, Screw C091-31W006-1002
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300, 300V ac |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | C091-31W006-1002 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Nickel |
| Series | C 091 D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 6 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Male |
| Mating Type | Screw |
| Connector Size | M16 |
| DIN Number | DIN 41322 |
Key Features
- Constructed with die cast nickel housing for enhanced durability.
- Features silver contact plating ensuring superior conductivity.
- Supports panel mount installation with screw-type mating.
- Operates efficiently in temperatures from -40°C to 100°C.
- Complies with DIN 41322 standards for industrial circular connectors.
- Offers straight orientation and solder termination for secure connections.
- Contact gender and connector gender both male for consistent mating.
- Designed for demanding applications including medical, robotic, and instrumentation.
Product Description
Amphenol Industrial presents the C091-31W006-1002 model, a C 091 D series 6 pole straight M16 DIN Plug designed for panel mount applications. This robust connector supports a current rating of 5A at 300V AC and DC and comes with an IP67 protection rating, making it suitable for harsh industrial environments.
The housing is crafted from die cast nickel ensuring high durability and resistance to wear. It features silver plating on contacts for maximum electrical conductivity and reliability. The connector adopts a screw mating type with solder termination and a straight orientation to facilitate ease of installation and maintenance.
Operating temperature ranges from a low -40°C to a maximum of 100°C, enabling use in diverse climatic conditions. It is compliant with DIN 41322 standards, ensuring it meets industrial requirements for circular connectors.
This product is ideal for industrial, medical, robotic, automotive, instrumentation, CCTV, and computer interface systems, where secure, reliable interconnections are critical. Its panel mounting capability and IP67 ingress protection safeguard against dust and water, supporting longevity and performance.
Amphenol's C 091 D series connectors are manufactured to the highest standards using premium brass and die-cast aluminium with nickel plating to withstand strenuous industrial operating conditions. The internal strain relief feature enhances connection stability and durability.
Constructed with die cast nickel housing for enhanced durability. Features silver contact plating ensuring superior conductivity. Supports panel mount installation with screw-type mating. Operates efficiently in temperatures from -40°C to 100°C.
Complies with DIN 41322 standards for industrial circular connectors. Offers straight orientation and solder termination for secure connections. Contact gender and connector gender both male for consistent mating. Designed for demanding applications including medical, robotic, and instrumentation.
Browse more quality industrial connectors at EnvMart for your specialized electronics and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A.
It operates at a voltage of 300V AC and DC.
The connector has an IP67 protection rating, making it resistant to dust and water ingress.
It operates efficiently in temperatures ranging from -40°C to 100°C.
It features solder termination for secure connections.
The housing is made from die cast nickel, and the contacts are silver plated for enhanced conductivity.
It supports panel mount installation with screw-type mating.
The connector size is M16.
It has a 6 pole format with male contact and connector genders.
It complies with DIN 41322 standards for industrial circular connectors.
It is designed for demanding applications including medical, robotic, and instrumentation systems.
This model features a straight orientation for ease of installation.
