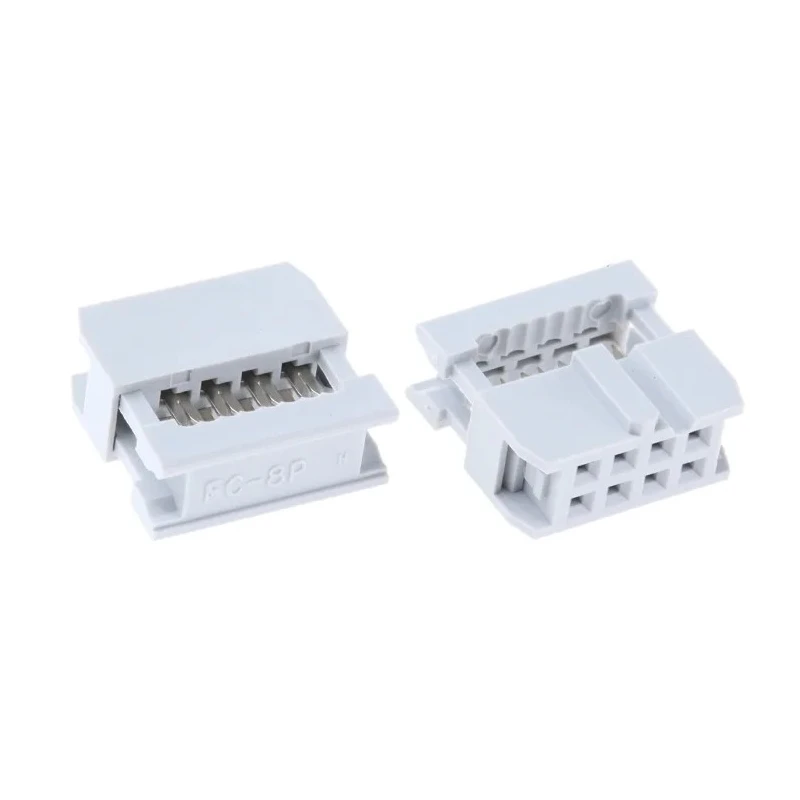

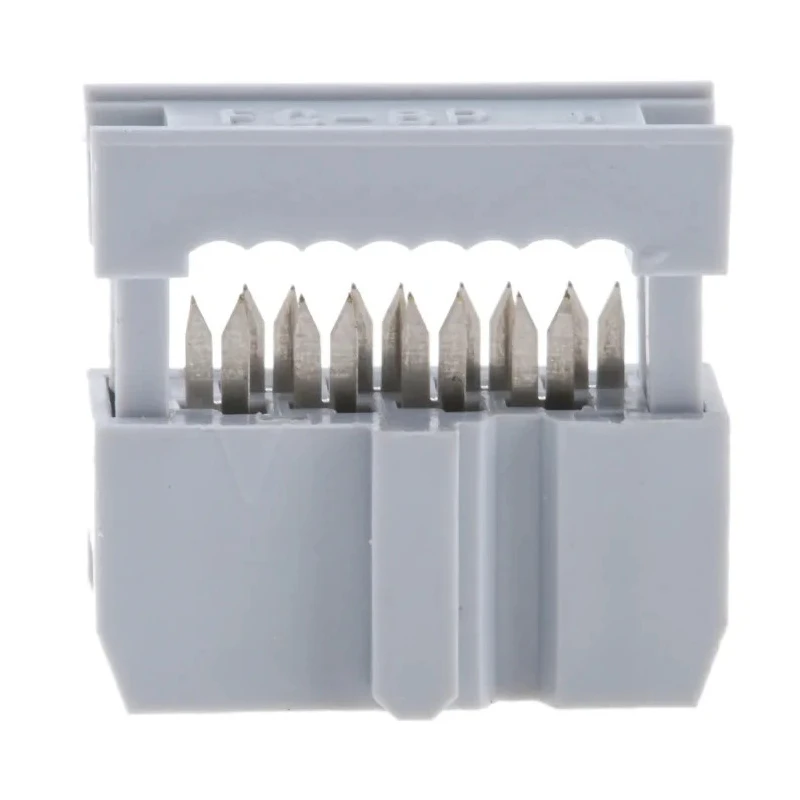

ASSMANN WSW 8-Way IDC Connector Female for Cable 2 Row 250V AC 3A Right Angle AWP 08-7240-T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 8-Way IDC Connector Female for Cable 2 Row 250V AC 3A Right Angle AWP 08-7240-T

Name: ASSMANN WSW 8-Way IDC Connector Female for Cable 2 Row 250V AC 3A Right Angle AWP 08-7240-T
Brand: ASSMANN WSW
SKU: 208287
Price: 1.02 USD
Availability: InStock



Category IDC Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	AWP 08-7240-T
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AWP
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold, Nickel
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Designed with 8 contacts arranged in 2 rows for efficient cable connection.
Rated for 3 amps current and 250V AC voltage for reliable electrical performance.
Right angle cable mount type for compact PCB layouts and improved cable management.
Features gold and nickel plated brass contacts ensuring excellent conductivity and corrosion resistance.
Constructed with a polybutylene terephthalate (PBT) shrouded housing rated UL94V-0 for flame retardance.
Operating temperature range from -40°C to 105°C suitable for various industrial environments.
Termination type is insulation displacement contact (IDC) allowing quick and reliable wire termination.
Contact pitch spacing is 2.54 mm (standard ribbon cable pitch) enabling compatibility with common cables.

Product Description

ASSMANN WSW AWP 08-7240-T is an 8-Way IDC Connector Female designed for cable connections with a double row 2.54 mm pitch configuration. This connector supports an electrical current rating of 3 amperes and a voltage of up to 250V AC, making it well suitable for industrial, electronic component assembly, and PCB equipment applications.

The connector features a right angle orientation for cable mounting, facilitating compact and organized wiring harnesses in electronic devices. Its contact points are made of brass with gold and nickel plating to ensure minimal signal loss, excellent conductivity, and corrosion resistance over extended use.

The housing material is polybutylene terephthalate (PBT), which is UL94V-0 certified for flame retardancy to promote electrical safety standards. Operating temperatures range from -40°C minimum to a maximum of 105°C, allowing use in moderately harsh environmental conditions such as manufacturing, automation control systems, and other industrial settings.

This product employs insulation displacement contact (IDC) termination technology, enabling efficient and reliable wire attachment without the need to strip insulation manually. The connector is shrouded to provide additional protection and polarization for error-free installation.

Eight contacts configured in two rows with 2.54 mm pitch. Current rating of 3 A and voltage rating of 250 V AC. Right angle cable mounting feature for optimized layout. Gold and nickel plated brass contacts ensure durability and signal integrity.

Shrouded polybutylene terephthalate housing rated UL94V-0 for flame resistance. Operating temperature from -40°C to 105°C for industrial suitability. IDC termination type for quick and secure wire connection. Explore more electronic connector solutions and components on EnvMart for your industrial and laboratory needs.
