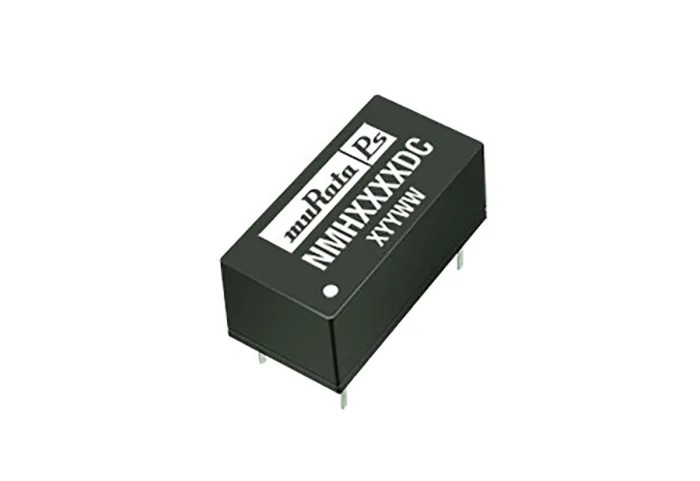

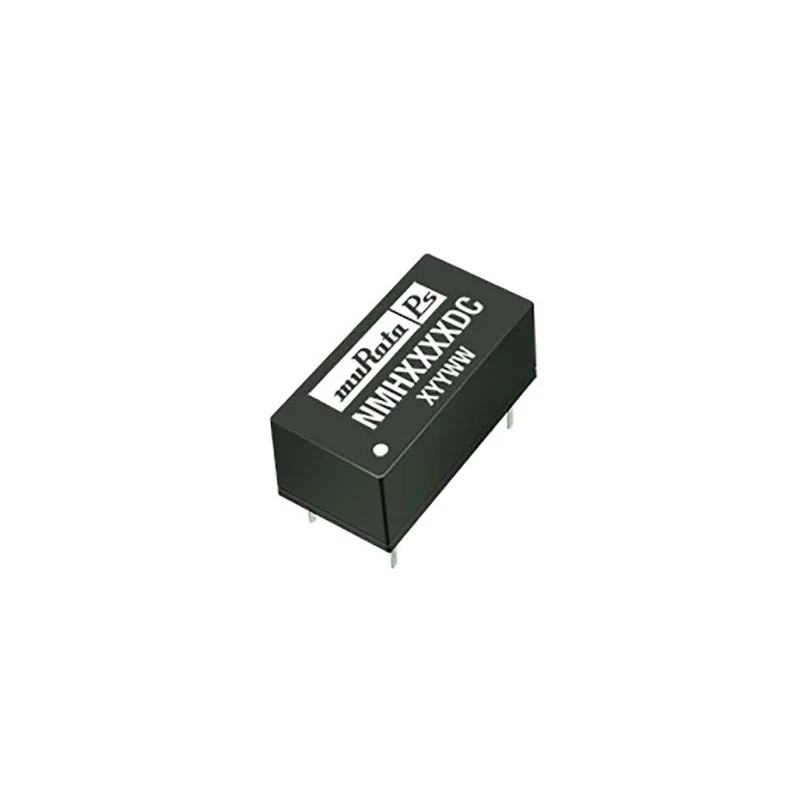

Murata Power Solutions DC/DC Converter Dual Output 12V dc, -12V dc 83mA, 5.5V to 4.5V Input, 2W Through Hole DIP14 NMH0512DC

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions DC/DC Converter Dual Output 12V dc, -12V dc 83mA, 5.5V to 4.5V Input, 2W Through Hole DIP14 NMH0512DC

Name: Murata Power Solutions DC/DC Converter Dual Output 12V dc, -12V dc 83mA, 5.5V to 4.5V Input, 2W Through Hole DIP14 NMH0512DC
Brand: Murata Power Solutions
SKU: 196824
Price: 15.4 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters Murata Power Solutions NMH DC/DC Converter, 12V dc
Brand	Murata Power Solutions
Efficiency	82%
Length	19.5mm
Model	NMH0512DC
Depth	6.8mm
Gross Weight	2.85g
Width	19.5mm
Mount Type	Through Hole
Series	NMH
Maximum Operating Temperature	85°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Number of outputs	2
Ripple and Noise	70mV Pk-Pk
Maximum Output Power	2W
Maximum Input Voltage	5.5V dc
Standards/Approvals	UL 60950, RoHS
Minimum Input Voltage	4.5V
Number of Pins	14
Output Voltage 1	12, -12V dc
Output Current 1	83mA
Isolation Voltage	1kV dc

Key Features

Dual isolated outputs providing +12V and -12V DC output voltages.
High efficiency of 82% for optimal energy conversion.
Wide operating temperature range from -40°C to 85°C for reliable performance.
Compact dimensions of 19.5mm length, 19.5mm width, and 6.8mm depth suit PCB integration.
Through-hole mount type ensures secure mechanical and electrical connection.
1kV DC isolation voltage protects sensitive circuits from high voltage spikes.
Low ripple and noise of 70mV peak-to-peak for clean power delivery.
14-pin Dual Inline Package (DIP) ensures compatibility with common PCB layouts.

Product Description

Murata Power Solutions NMH0512DC is a high-performance DC/DC converter featuring dual isolated outputs of +12V and -12V DC, suitable for electronic circuits requiring dual polarity power supply. This through-hole DIP14 packaged converter handles input voltages between 4.5V and 5.5V DC with a maximum output power rating of 2W and output current of 83mA.

The converter offers outstanding electrical isolation of 1kV DC between input and outputs, enhancing system safety. Its high efficiency of 82% helps in reducing thermal dissipation, while low ripple and noise (70mV peak-to-peak) ensure clean power supply essential for sensitive analog and digital circuits.

Mechanical specifications include a compact footprint of 19.5mm by 19.5mm and a depth of 6.8mm. The device mounts securely via through-hole technology, providing robust mechanical and electrical reliability on PCB assemblies. Operating temperature ranges from -40°C to +85°C, allowing use in harsh industrial and commercial environments.

This DC/DC converter complies with UL 60950 safety standards and RoHS requirements, making it ideal for use in industrial controls, instrumentation, power management systems, communication equipment, and consumer electronics applications requiring dual voltage power supply conversion.

Dual output voltages at 12V and -12V DC for bipolar power supply needs. High isolation voltage rating of 1kV DC safeguards equipment protection. Standard through-hole DIP14 package for ease of assembly and replacements. Wide input voltage tolerance supports flexible design requirements.

Compact size and low weight (2.85g) facilitate space-constrained designs. RoHS compliant and UL certified for safety and environmental standards compliance.

This product enhances the reliability and performance of industrial, laboratory, and telecommunication power systems. Its rugged design and industry approvals make it a preferred choice for engineers and system integrators.
