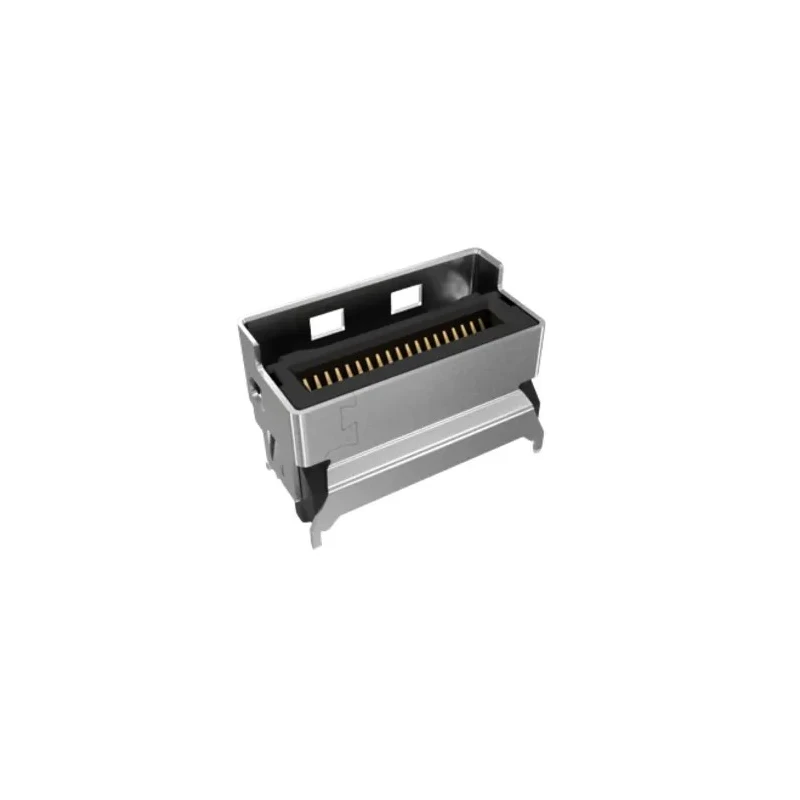

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel Mount, 74-Contacts G97V21352HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G97V21352HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- Compact 0.6 mm pitch design enables high-density connectivity.
- Gold over nickel plating ensures reliable electrical contact and corrosion resistance.
- Supports operating temperatures from -55°C to 85°C for versatile industrial uses.
- Panel mount type with vertical orientation suitable for PCIe card type applications.
- Provides signal integrity performance up to 56Gb/s PAM4 supporting PCIe Gen 4 and Gen 5.
- Housing is constructed from durable thermoplastic material.
- Copper alloy contact material delivers robust electrical conductivity.
- Designed for modular and scalable system architectures with easy repair.
Product Description
Amphenol Communications Solutions G97V21352HR Mini Cool Edge IO Series Vertical Edge Connector is a high-performance panel mount electrical connector featuring 74 contacts with 0.6 mm pitch. This connector is engineered for advanced signal transmission capabilities, supporting PCIe Gen 4 and Gen 5 protocols with data rates up to 56Gb/s PAM4, enabling over 1 meter transmission distances.
The vertical orientation and panel mounting design make it suitable for compact system architectures in electronics, data centers, telecommunications, and computing applications. It supports both cable and card edge connections, offering system designers flexibility for modular, scalable, and easily repairable configurations.
Constructed with gold-over-nickel plated copper alloy contacts, the connector provides excellent electrical conductivity and corrosion resistance. The thermoplastic housing ensures durability and performance under demanding operating conditions, with a wide temperature range from -55°C to 85°C.
This product complies with RoHS and UL safety standards, ensuring environmental and operational reliability. Its slim form factor facilitates compact data center system designs, meeting the needs of modern high-speed, high-density electrical systems.
Compact 0.6 mm pitch for high-density applications. Gold-plated copper alloy contacts for reliability. Thermoplastic housing provides robustness. Vertical panel mount suitable for PCIe cards. Supports high data rates up to 56Gb/s PAM4.
Wide operating temperature range from -55°C to 85°C. Supports both cable and card edge connections. Modular and scalable system design support. RoHS and UL compliant for safety and environment. Ideal for electronics, telecommunications, and data centers.
This connector represents a cutting-edge solution for advanced signal integrity and high-speed data transmission in industrial and commercial electronics systems. Browse more Edge Connectors and related products at EnvMart for diverse industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data rates up to 56Gb/s PAM4, making it suitable for PCIe Gen 4 and Gen 5 applications.
The contacts have a pitch size of 0.6 mm, which allows for high-density connectivity.
It operates effectively within a temperature range of -55°C to 85°C, suitable for various industrial applications.
The housing is made from thermoplastic material, while the contacts are constructed from gold over nickel plated copper alloy for enhanced conductivity and corrosion resistance.
This unit is designed for panel mounting with a vertical orientation, making it suitable for compact system architectures.
This connector features a total of 74 contacts, facilitating multiple connections in electronic systems.
Yes, it complies with RoHS and UL safety standards, ensuring environmental and operational reliability.
It supports both cable and card edge connections, providing flexibility for system designers.
The voltage rating for this model is 300V, suitable for various electronic applications.
It is intended for use in electronics, data centers, telecommunications, and computing applications.
This connector is manufactured in China.
The gold over nickel plating ensures reliable electrical contact and enhances corrosion resistance, improving the longevity of the connector's performance.
