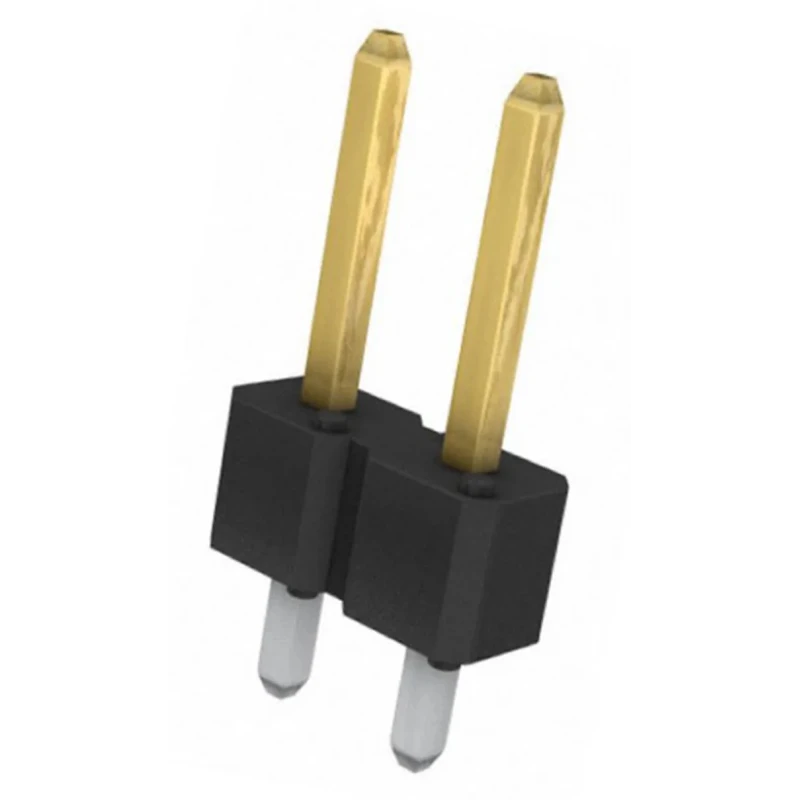

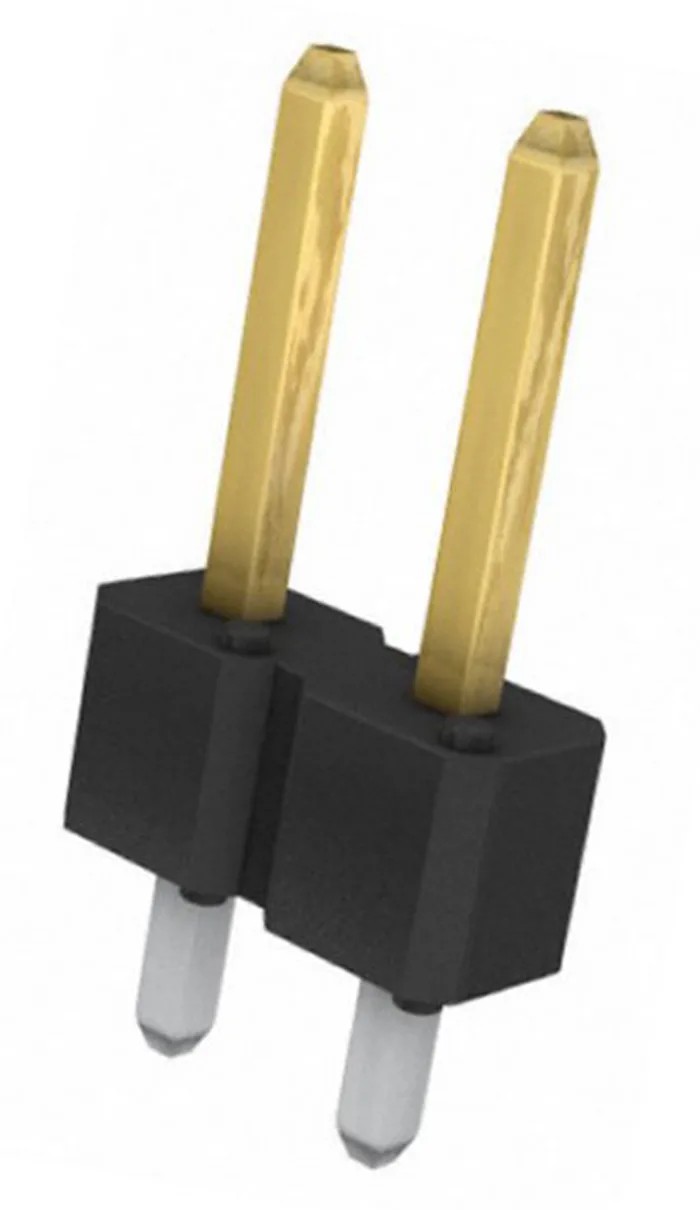

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 2 Contact, 2.54 mm Pitch 77311-101-02LF

Amphenol Communications Solutions 77311-101-02LF Bergstik Series pin header is a straight, through-hole PCB connector designed with 2 contacts spaced at 2.54 mm pitch and a single row configuration. It operates safely up to 1500 volts and supports a current rating of 3A, making it suitable for various electronic and industrial applications requiring reliable connections.

The housing is made from reflow solder compatible thermoplastic, rated for high temperatures and UL 94 V-0 flammability, ensuring durability and safety during soldering processes. The contact pins are made of phosphor bronze with cost-effective duplex gold plating, providing corrosion resistance and secure electrical contact performance.

Operating temperature range spans from -65°C to 125°C, suitable for demanding environmental conditions. The design features stand offs in the housing to aid in removing solder contamination and ensure clean connections.

This pin header is widely used for board-to-board and wire-to-board assemblies in electronic manufacturing, industrial controls, and instrumentation sectors. The male contact gender and solder termination type facilitate versatile assembly integration, and its compatibility with mating connectors such as Dubox series receptacles, Quickie IDC receptacles, and PV series crimp housings broadens its application scope.

Its cut-to-length feature allows adaptability to various circuit requirements, making it an economical solution for diverse applications. The high quality and proven performance make it a preferred component in PCB electronic connector designs.

Features straight orientation and unshrouded design. Constructed with thermoplastic housing for high-temperature solder compatibility. Phosphor bronze contacts with gold plating provide enhanced conductivity. Suitable for board-to-board and wire-to-board applications.

Supports operating temperature range from -65°C to 125°C. Solder termination with male contact gender and tail pin length of 2.41 mm. Mating pin length of 5.84 mm ensures secure connections. Cost-effective duplex plating offers economical advantages.

Housing stand offs help prevent solder contamination. Compatible with multiple mating connectors.

This Bergstik Series PCB pin header by Amphenol Communications Solutions is suitable for electronics, industrial machinery, automation, and communication system manufacturing. It offers reliable connectivity and durability for industrial and commercial applications. Browse related PCB connectors and headers on EnvMart for comprehensive component selection.
