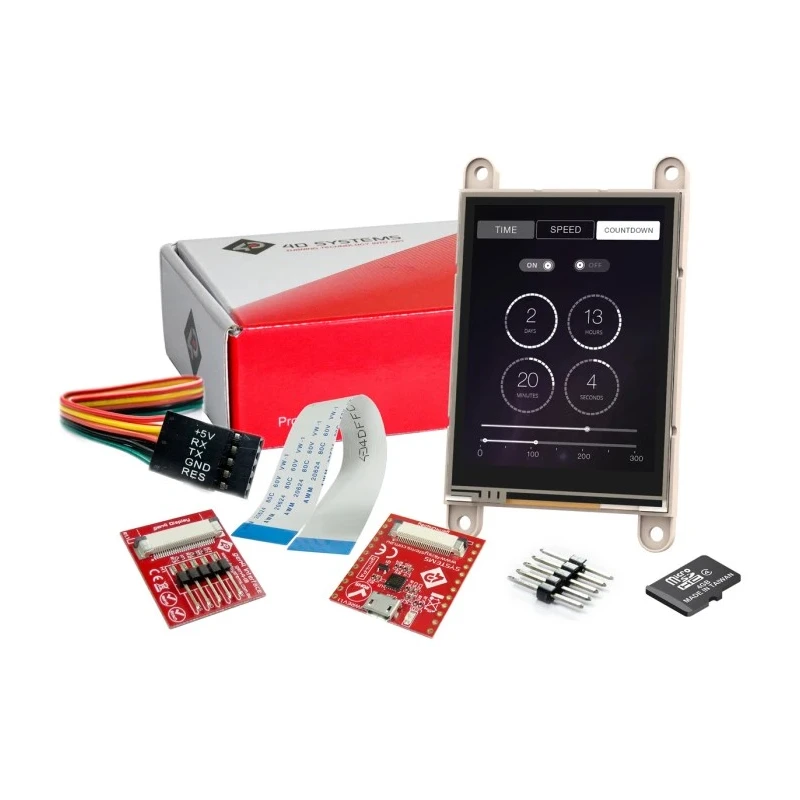

4D Systems SK-gen4-IoD-28T LCD Colour Display Touch Screen 71.12 mm 240 x 320 pixel UART Interface gen4

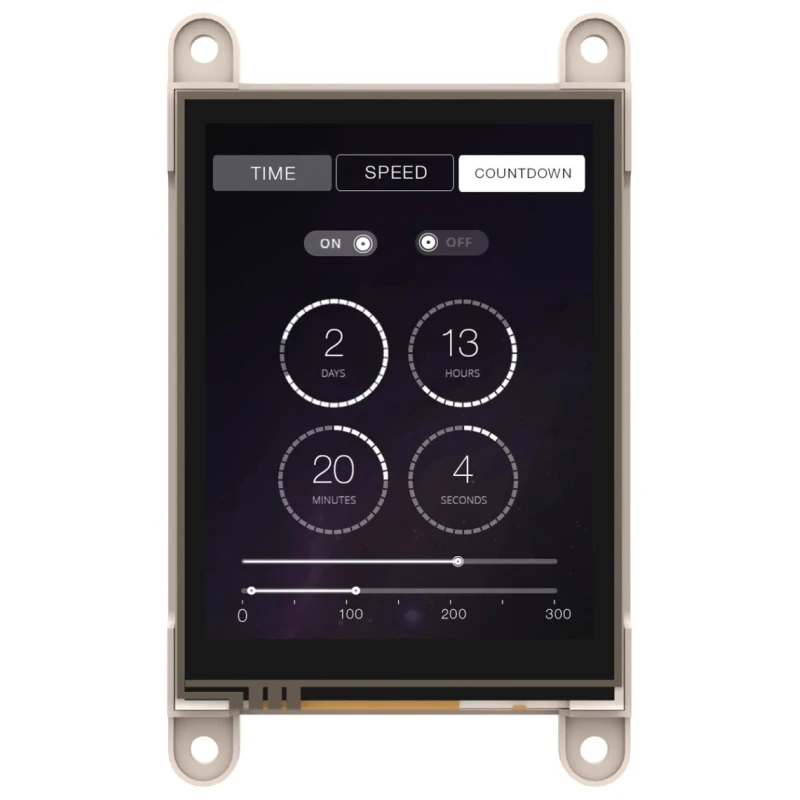

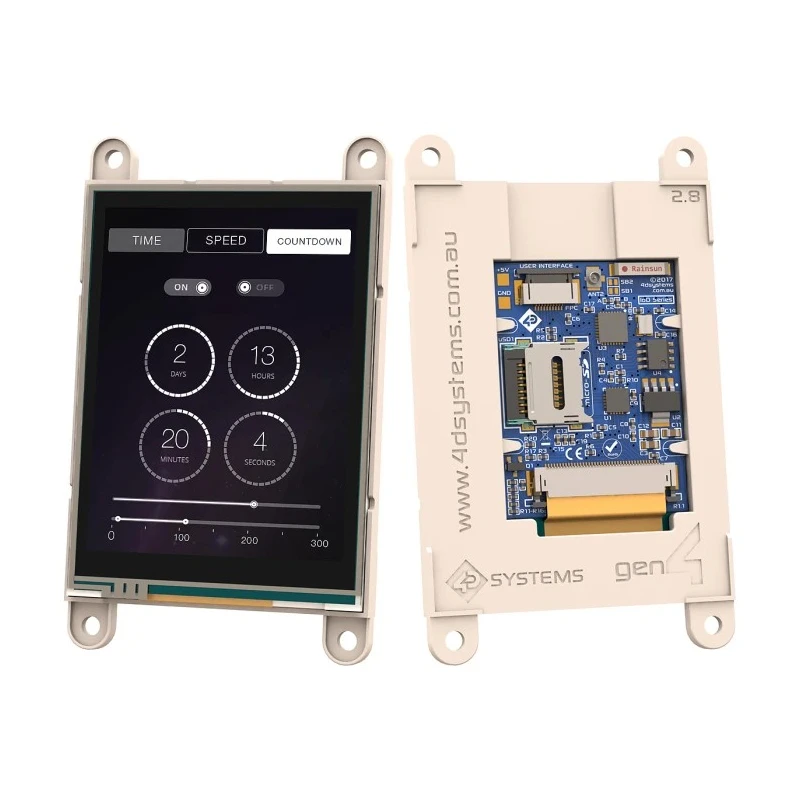

4D Systems SK-gen4-IoD-28T LCD Colour Display Module is a high-performance internet-of-displays (IoD) touchscreen display that integrates WiFi capability through the Espressif ESP8266 system on chip (SoC). It features a 71.12 mm diagonal display size with a resolution of 240 x 320 pixels, providing vibrant RGB 65k true-to-life colors for detailed and vivid visuals. The module includes a 4-wire resistive touch screen and LED backlight for clear visibility and responsive touch interactions.

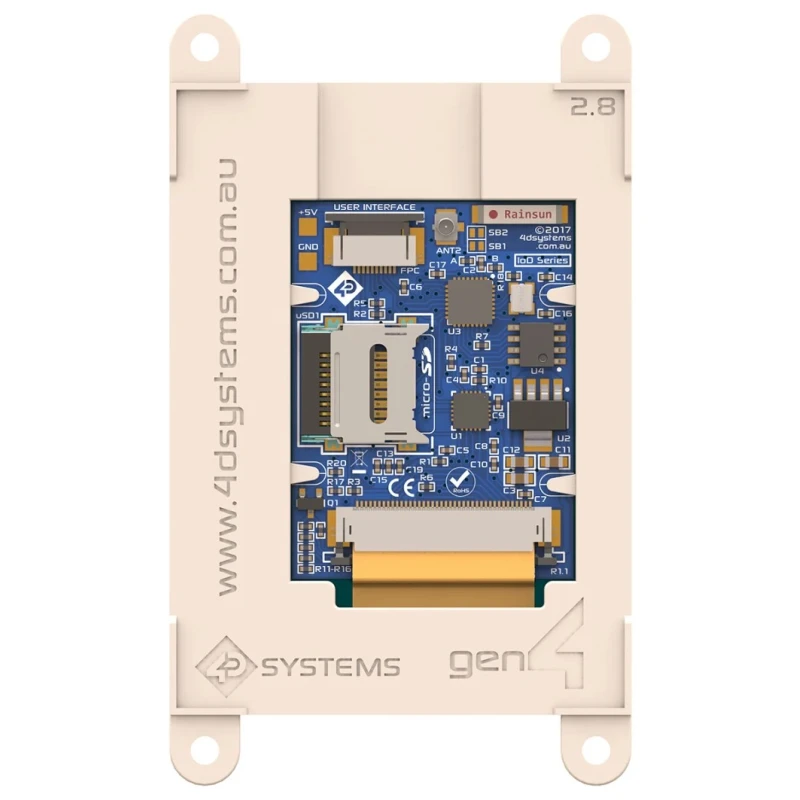

The unit offers a compact profile with dimensions 52.1 mm width, 57.6 mm depth, and 7.3 mm height, making it ideal for applications where space is constrained. It includes a 10-pin zero insertion force (ZIF) connector facilitating straightforward integration with application motherboards or PCBs.

The embedded microSD card slot enables multimedia storage and data logging, which adds versatility for industrial and commercial human-machine interface (HMI) solutions. Operating voltage is a single supply from 4.0 V to 5.5 V DC, consuming approximately 200 mA current.

The display module supports UART interface communications and is programmable through 4D Systems' Workshop4 IDE or alternatively the Arduino IDE for developer flexibility. It is designed to operate reliably within an ambient temperature range of -20°C to 70°C, suitable for various industrial environments.

Powered by Espressif ESP8266 SoC with integrated WiFi connectivity and support for 802.11 b/g/n/e/i standards. High resolution 240 x 320 pixel display with vibrant 65k true color RGB output. 4-wire resistive touch screen coupled with LED backlight for optimum visual and tactile interface.

Compact form factor with easy 10-pin FFC connection to application boards. On-board microSD card slot for multimedia and data storage. Single supply voltage operation from 4.0 V to 5.5 V DC with typical current draw of 200 mA.

Designed for industrial human-machine interface (HMI) applications in diverse temperature conditions. CE, REACH, and RoHS compliance assures adherence to international standards.

This display module is ideal for industrial automation, embedded systems, control panels, and IoT projects requiring wireless connectivity and advanced user interface capabilities. Explore more in the LCD Colour Displays category on EnvMart for compatible accessories and related components.
